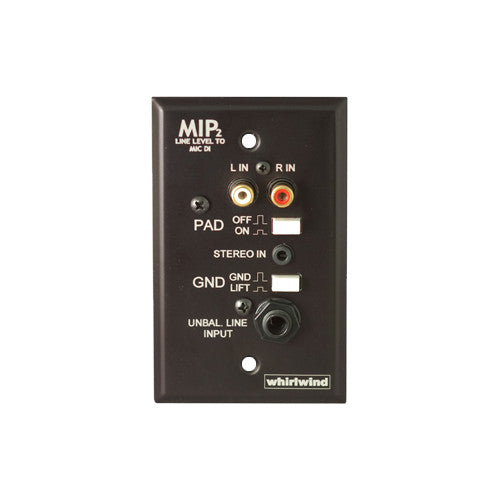

The Whirlwind MIP2 Media Input Wall Plate accepts stereo RCA or 3.5mm TRS or 1/4" unbalanced inputs. (Stereo inputs are summed to mono, only use one type at a time.) The signal is converted with a Whirlwind DImax transformer to Low-Z mic level and is output via screw terminals. A 20 dB pad is provided to attenuate hot inputs and a ground lift is provided to break the ground connection from the input to the output.
Whirlwind MIP2 Features
- Available in black or white (white not pictured)
- Stereo RCA or 3.5mm TRS or 1/4" unbalanced inputs. (Stereo inputs are summed to mono, only use one type at a time.)
- Whirlwind DImax transformer
- 20 dB pad
- Ground lift
- MIP2 Media Input Wall Plate1
