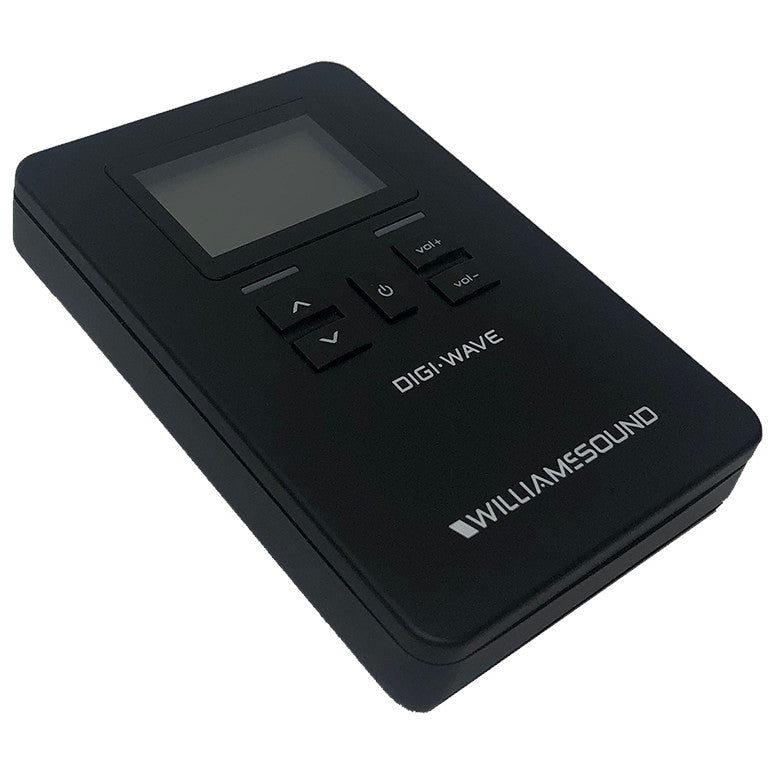

Williams AV DLR 400 ALK Digi-Wave 400 Receiver

This is DLR 400 ALK receiver only. Transceiver is sold separately. The DLR 400 ALK uses alkaline batteries.

The Digi-Wave™ system is a digital spread-spectrum (DSS), simultaneous two-way wireless listening system. Using a frequency-hopping algorithm, it avoids interference and is a very secure method of communication. The Digi-Wave communication system allows users to listen and talk to one another wirelessly in a variety of scenarios.

A Digi-Wave system consists of at least one transceiver (DLT 400 sold separately) and various combinations of transceivers and receivers (DLR 400 RCH or DLR 400 ALK). Combinations of one or more DLT’s and DLR’s can be used to facilitate different events, depending on what needs to be spoken and what needs to be heard. It is commonly used for guided tours, language interpretation, intercom, and hearing assistance.

A Digi-Wave system consists of at least one transceiver (DLT 400) and various combinations of transceivers and receivers (DLR 400 RCH or DLR 400 ALK). Combinations of one or more DLT’s and DLR’s can be used to facilitate different events, depending on what needs to be spoken and what needs to be heard.

Typical scenarios include:

• Guided Tours – with one or more tour guides (2-way), with audience participation (2-way), or without audience participation (1-way)
• Language Interpretation – one or more interpreted languages transmitted to audience (1-way)
• Intercom – with up to six people able to speak simultaneously, and even more listening
• Hearing Assistance – featuring boosted audio for improved comprehension

Williams AV DLR 400 ALK Features

• Frequency Band: 2.4 GHz (ISM band)
• Audio Frequency Response: intercom mode 100 – 7300 Hz, interpretation and other modes 100-11200 Hz
• Modulation: FSK
• Goes into auto sleep mode after 5 minutes of no RF signal from compatible devices
• Plastic housing with internal antenna
• Requires 2 AAA alkaline batteries
• Approvals: FCC, Industry Canada, RoHS 3, CE, WEEE, RCM, ANATEL, KC, Giteki

• DLR 400 ALK Digi-Wave 400 Receiver1
• Two Year Warranty1

• Dimensions (WxHxD)2.36x3.54x0.63″ (60x90x16 mm)
• Weight1.7 oz. (47 g) without batteries.
• Frequency Band2.4 GHz (ISM band)
• ModulationFSK
• Case MaterialBlack ABS Plastic
• Battery Type2x AAA Alkaline Batteries
• Battery LifeAlkaline Disposable (BAT 010-2): Up to 30 hrs
• Power SaveAuto Sleep Mode after 5 minutes of no RF signal from compatible devices
• Audio Frequency Response (-3dB level)
  • Intercom Mode: 100 – 7,300 Hz
  • Interpretation and other modes: 100-11,200 Hz
• SNR74 dB (A-weighted)
• THD0.1% (typical)
• AntennaInternal
• RangeUp to 900 ft (274 m) (depending upon environmental conditions)
• Headphone Audio Output
  • 3.5 mm TRRS jack with mono output for headphones, earphones, or neckloop
  • 27 mW maximum @32 ohms
• DisplayLCD shows status: Battery Level, RSSI, Group/Channel #
• Temp. Range14° – 113°F (-10° to 45°C)
• Compatible UnitsDLT 400, DLT 300
• ApprovalsFCC, Industry Canada, RoHS 3, CE, WEEE, RCM, ANATEL, KC, Giteki
• Warranty2-year warranty against component failure and manufacturing defects.
