The transceiver in the system is DLT 400 from the Digi-Wave™ system. It is a digital spread-spectrum (DSS), simultaneous two-way wireless listening system. Using a frequency-hopping algorithm, it avoids interference and is a very secure method of communication. The Williams AV DWS PCS 2 400 Digi-Wave Personal Communication System allows users to listen and talk to one another wirelessly in a variety of scenarios. Headset microphone MIC 144 is another component to this system. It has a TRRS 3.5 mm plug and is for use with Digi-Wave DLT 400 transceiver only.

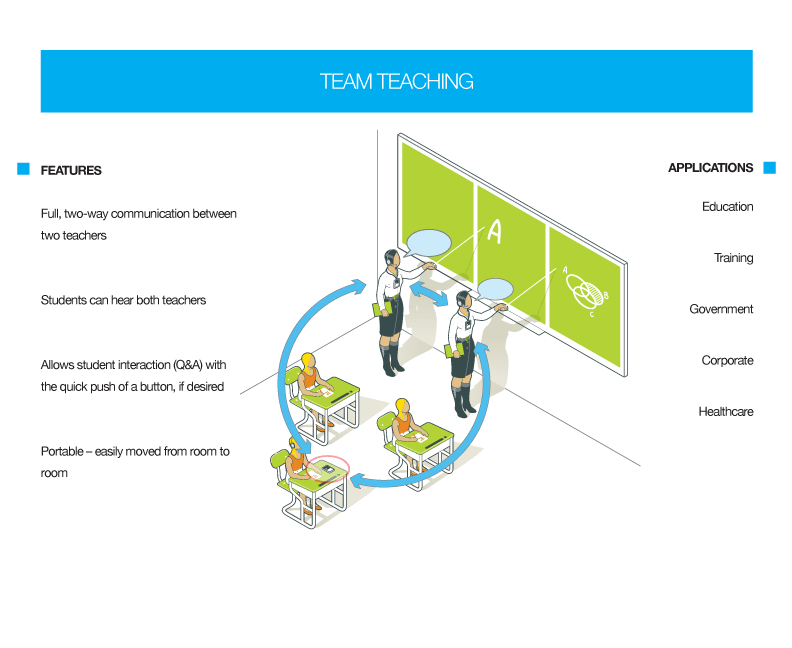

Williams AV DWS PCS 2 400 Features
- Full 2-way communication between 2 presenters
- Audience can hear both presenters
- Allows interaction at the push of a button
- Portable
- For education, training, government, corporate, healthcare, etc.
- DLT 400 transceiver2
- MIC 144 headset microphoner2
- DW ACC PAC4 power unit1
- CCS 043 system carry case1
- CCS 061 BK black silicone skin1
- CCS 061 GR gray silicone skin1
- DLT 400
- Dimensions: 4.22"W x 2.60"H x 0.50"D (107.3 mm x 66 mm x 12.6 mm)
- Weight: 3.3 oz (94 g) including battery
- Color: Black/Silver (Front/Back)
- Case Material: Black ABS plastic
- Battery type: Lithium Polymer with smart charge built into transceiver; 1800 mAH
- Battery life: Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx
- Power Save: Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
- Charge time: 5 hrs. approx.
- System Voltages: OLED 14VDC; RF 5VDC; Logic 3.3 VDC
- Operating frequencies: 2.4 GHz (ISM band); 2402 – 2476 MHz FHSS
- Audio Frequency response (-3dB Level)
- Intercom Mode: 100 - 7,200 Hz
- Other Modes: 100 - 11,500 Hz
- SNR: 73 dB (A-weighted, default Rx volume with mic input )
- THD: 0.1 % (Default Volume, 1kHz)
- Microphone input: Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range.
- Line Input: USB-C, Adjustable level
- Headphone Output: 3.5 mm TRRS headphone jack; 25 mW, R 32 ohms
- Audio Output: Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Line: USB-C, Adjustable level
- Range: Up to 900 ft (274 m) (depending upon environmental conditions)
- Modulation: FSK
- RF Output: 19 dBm Typical
- Security: 87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings
- Side tone: -6 dB below volume, tone variation (Off, Low and High settings available)
- Indicators: OLED
- LEDs: Red LED around Talk button when enabled; Bi-color, changing green and red LED at top
- Charging Connectors: USB-C; Two contacts for use with CHG 412
- Compatible Receiver: DLR 400 RCH, DLR 400 ALK, DLT 300 with some limitations and DLR 360 with some limitations
- Operating Temperature Range: 14º to 113ºF (-10º to 45ºC)
- Approvals: FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki
- Warranty: 2-years warranty against component failure and manufacturing defects. 6 months on the internal battery. See Full Warranty on the website for details.
- EAR 041
- Style: Single, in-ear, isolation earphone
- Plug: 3.5mm mono
- Cord: 39"
- Driver Size: 10 mm
- Nominal Impedance: 16Ω
- Freq. Response: 20 - 20kHz
- Weight: 6g
- Max Power Input: 5 mW
- Sensitivity: 104 dB @ 1kHz
- Replacement Silicone Tip: EAR 043 (0ne pair)
