Williams AV IR SY12 D IR+ System Secure with Dante

The Williams AV IR SY12 D IR+ System Secure with Dante is packed with all the tools needed for a secure, functioning system.

More about IR+ Systems

The new IR + is the industry’s first IR system that combines secure infrared and optional WaveCast audio over Wi-Fi delivery in a single affordable box. This Scalable Infrared System uses Distributed Emitter IR array design to accommodate up to 16 emitters with flexible coverage in up to 288,000 square feet (26,750 square meters).

The IR + features a distributed IR E4 emitter architecture allowing up to four emitters either stacked together for large room arrays or distributed throughout the room to accommodate wings in room design, balconies or other obscured venue locations. The rack mounted or remotely located IR M1 Distributed Control Center comes standard with support for up to four IR E4 emitters. Each emitter runs back to the modulator via a Cat 5e/6 cable, providing the audio and power needed to support the remote emitter. Very large room applications can be supported by adding up to four IR A4 Distributed Control Arrays to support a total of 16 IR E4 emitters.

The IR + system can be controlled and monitored remotely via an internal web page, allowing for easy and flexible setup and control. The integrated Ethernet provides easy connection to the building network or a dedicated system-only network.

The IR + system also feature a WaveCAST network output for streaming audio via Wi-Fi when combined with a wireless access point. The WaveCAST audio over Wi-Fi Assistive Listening Output features an iOS or Android app for supporting mobile devices. The WaveCAST over audio Wi-Fi system can also be used with the Williams Sound WF R1 Wi-Fi receiver for those that don’t want to use mobile devices or for those looking for ADA compliance from a wireless system

Williams AV IR SY12 D IR+ System Secure with Dante Features

• Discrete and efficient IR E4 Emitter
• Each emitter provides 18,000 ft coverage (5486.4 meters)
• Simple Cat 5e/6 installation
• No power plug needed - uses PoE from M1
• Emitters can be placed up to 328 feet (100 meters) from modulator
• Up to 4 IR E4 emitters can be used with one IR M1 Distributed Control Center
• Up to 4 IR A4 distributed arrays can be used for a total of 16 IR E4 emitters
• True DSP backbone allows for optimization of assistive listening for the venue

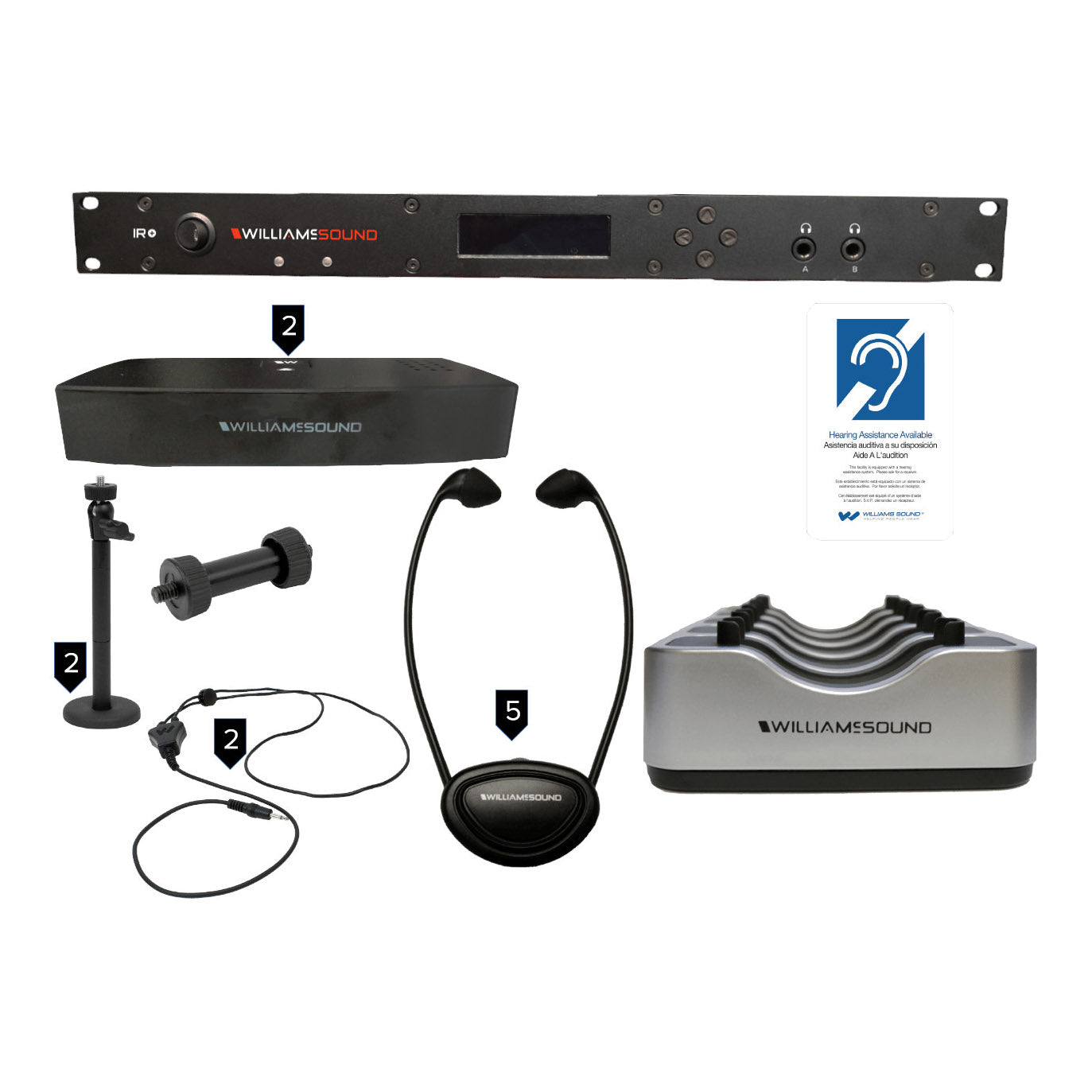

• IR M1 infrared modulator1
• IR E4 emitters2
• IR RX20 receivers5
• CHG 520 charger1
• NKL 001 Neckloops2
• MLB 003 Linking bar1
• BKT 024 brackets2
• IDP 008 Accessibility Signage1

• IR M1
  • Dimensions: 19” (W) x 1.75” (H) x 8.2” (D) (48.3 cm x 4.5 cm x 20.8 cm)
  • Weight: 5.2lb. (2.4 kg)
  • Color: Black
  • Rack Mount: Single Rack Unit
  • Power Supply: International Desktop Supply
  • Input: 36 W, 110-240 VAC 50-60 Hz
  • Output: +48VDC, 0.75A center-positive
  • Power Switch: Rocker switch with LED
  • Signal to Noise Ratio: 67 dB (typical)
  • Modulation: FM Wideband, +50kHz deviation, 50uS pre-emphasis
  • Carrier Frequency: Selectable, 2.3/2.8 or 3.3/3.8MHz
  • Frequency Response: 40 to 16,000Hz, +1 dB, -3dB, electrical response
  • Total Harmonic Distortion: Less than 2%, electrical response
  • Audio Processor Functions: DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control
  • Auto Carrier Shut-Off: Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage.
  • Infrared Test LED: Dual IR LED for receiver testing, monitoring, and audio signal testing.
  • Audio Input: (2x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
  • Dante: Optional
  • Internal Test Tone: 400 Hz internal test tone selectable as audio input source for setup and diagnostics
  • Remote Configuration: Available through embedded website
  • Headphone Output: (2) 1/4″ headphone jacks on front panel for monitoring CH A and CH B audio inputs
  • Emitter Output Jack: Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission.
  • Operating requirements: 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
  • Approvals: CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
  • Warranty: 2 years on Modulator, 90 days on accessories
• IR E4
  • Dimensions: 7.5” (W) x 1.4” (H) x 3.6” (D) (19.1 cm x 3.6 cm x 9.1 cm)
  • Weight: 0.8 lb (362 g)
  • Color: Black
  • Power: 48 VDC supplied by IR M1 via CAT 5e cable.
  • Coverage Area: Up to 18,000 square feet in single channel mode
  • Connectivity: +48VDC Power, RS-485 communication, and Baseband signals for IR trasmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1.
  • Operating requirements: 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
  • Approvals: CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
  • Warranty: 2 years on Emitter; 90 days on accessories
• IR RX20 Stethoscope Infrared Receiver
  • Weight: 1.6 oz
  • Material and Color: IR Transparent polycarbonate, black
  • Battery Type: LiPo
  • Battery Life: 8 hours
  • Battery Charger: CHG 520
  • Operating Temp: 32-122° F (0-50° C)
  • Range: Up to 15,000 sq. ft. in single channel mode with IR T2 transmitter
  • Operating Frequency: 2.3 MHz or 2.8 MHz or stereo
  • Frequency Response: 100 Hz to 12 kHz, ± 3 dB
  • Signal to Noise Ratio: 60 dB at 10 m
  • Controls: Volume control thumbwheel;3-position selection switch (2.3 MHz, 2.8 MHz, stereo), Off/on slider for power
  • Acoustic Output: 120 dB MAX SSPL90 with 2 cc coupler
  • Compatibility: Compatible with 2.3 MHz and 2.8 MHz IR transmitters
  • Headphone Jack: 3.5mm stereo
  • Ear pads: EAR 089
  • Approvals: CE, RoHS, FCC, Canada, RCM, VCCI, WEEE
  • Warranty: 5 years (90 days on battery)
• CHG 520
  • Dimensions: 12″L x 6.25″W x 1.5″H (30.48 cm x 15.875 cm x 3.81 cm)
  • Weight: 13.6 lbs
  • Color: Black metal and plastic
  • Power Supply Input: 120 VAC
  • Power Supply: 100-240V / 12VDC TFP 043
  • Unit Capacity: 5 Units
  • Indicators: Individual Charging Indicators: Red LEDs
  • Warranty: 1 year (90 day warranty on cables and power supply)
  • Approvals: WEEE, RoHS, CE, FCC, CANADA, RCM, VCCI
• NKL 001
  • Color: Black
  • Weight: 1.5 oz
  • Length: 18.5” cord
  • Connector: NKL 001: 3.5 mm mono plug NKL 001-S: 3.5 mm stereo plug with ring disconnected
  • Impedance: 8-16 Ohms
  • Input Power: 500 mW max
• IDP 008 10-3/8" (L) x 6-¼" (W) x 1/8" (H)
