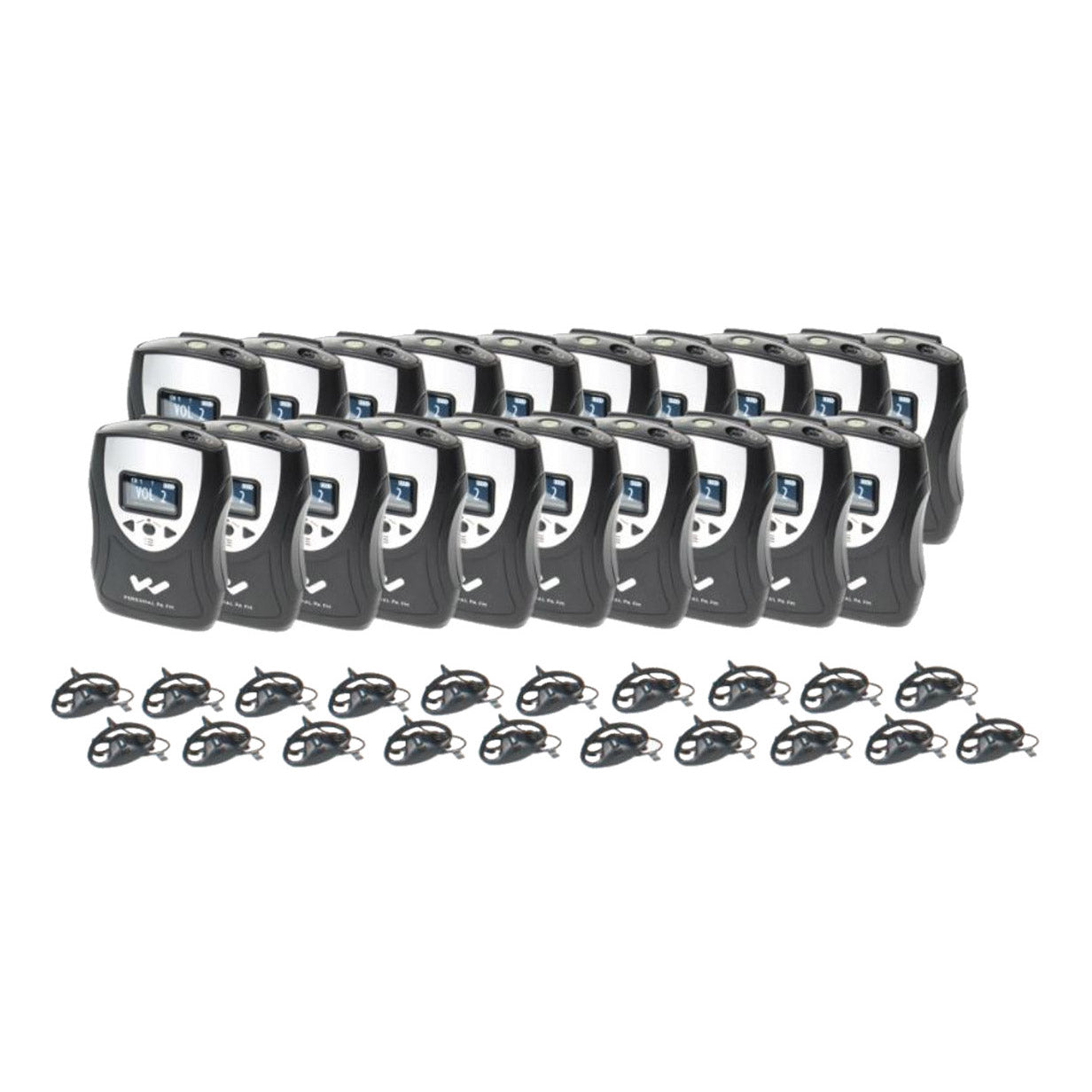

Williams AV PPA R38-20 Receiver
Williams AV PPA R38-20 Receiver
$3,822.00

Williams AV PPA R38-20 Receiver

SoundPro Item: 11227
MPN: PPA R38-20
MSRP: $4,245.00
$3,822.00
Add to Wish List

Account manager
Contact an Account Manager for your personalized price

The PPA Select FM receiver features easy-to-use, seek-button channel selection with access to 17 pre-set wideband frequencies between 72-76 MHz. Compatible with Williams Sound 72-76 MHz transmitters: PPA T46, PPA T45, PPA T45NET, PPA T27. Digitally synthesized for even greater audio clarity and stability. A versatile 3.5mm stereo/mono jack allows for a variety of earphone and headphone options, and is neckloop/telecoil-equipped-hearing-aid compatible.

Williams AV PPA R38-20 Features

  • Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
  • Channel-lock capability
  • Battery-saving sleep mode
  • Low-battery indicator
  • Field tunable
  • Williams AV PPA R38-20 Receiver1
  • Lifetime PLUS Limited1
  • Dimensions4.1x2.85x1.38″ (104x72x35mm)
  • Weight4.6oz (130g) with batteries. 2.6oz (73g) without batteries
  • ColorBlack/Silver. Black ABS Plastic case with Aluminum faceplate.
  • Battery Type(2) AA Alkaline or (2) AA NiMH Rechargeable
  • Battery Life
    • (2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs.
    • (2) A rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs.
  • Current Consumption52mA nominal
  • Operating Temp. Range32° – 122°F (0° to 50°C)
  • Channels17 Wideband, accessed via menu
  • Operating Frequencies72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
  • FM Deviation75 kHz
  • De-Emphasis75 µS
  • Display Screen1″ OLED
  • Power Indication
    • Power button, backlit green.
    • Good battery strength – glows solid. Low battery – flashes.
  • Sensitivity2 µV at 12 dB Sinad with squelch defeated
  • Input Overload100 mV
  • Frequency Response200 Hz – 15 kHz, ±3dB
  • ModulationFM, +/- 75 kHz peak deviation
  • Signal-to-Noise RatioMinimum 65 dB @ 1.0V
  • Receive AntennaIntegral with earphone/headphone cord
  • Audio Output35 mW max at 16Ω
  • Headphone Connector3.5 mm stereo jack, mono output for stereo or mono earphones/headphones
  • Supplied EarphoneStereo,earbud-type with foam cushion, 3.5 mm plug, 32Ω
  • Power Save ModeEnters sleep mode after approximately 3 minutes of no RF signal
  • ApprovalsFCC, Industry Canada, RoHS, WEEE
  • WarrantyLifetime PLUS Limited Warranty, 90 Days on most accessories.

In The Box
