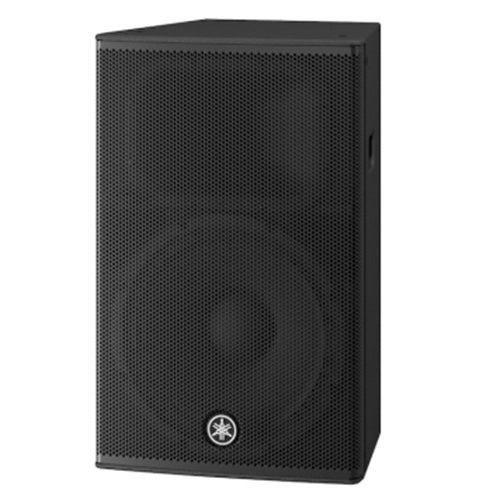

Yamaha CHR15 15-Inch Passive Speaker

The CHR15 from Yamaha is a two-way passive loudspeaker that is ideal for Front-Of-House (FOH) use as a main speaker. Its 15” high-power output woofer delivers well-defined, powerful bass with minimal distortion, while the 1.4” precision compression driver produces accurate mid-range and high frequencies.

Yamaha CHR15 Features

• 15" passive speaker for use as a main speaker in FOH applications
• Plywood cabinet delivers a clear sound with minimal vibration
• Compact size despite 15" LF driver that provides excellent low frequency response
• Dual-angle pole sockets offer both 0° or a -7° down tilt
• Rigging points for use with eye bolts
• Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

• CHR15 15" 2-way passive speaker1

• Speaker Type2-way Speaker, Bass-reflex
• Frequency Range (-10dB)49Hz - 20,000Hz
• Coverage Area (HxV)90° x 60°
• Crossover2,000Hz
• Nominal Impedance8 Ω
• SPL
  • Sensitivity (1W; 1m on axis): 95 dB SPL
  • Peak (calculated): 125 dB SPL
• Components
  • LF
  • Diameter: 15" cone
  • Voice Coil: 2.5"
  • Magnet: ferrite
  • HF
  • Diaphragm: 1.4"
  • Type: 1" throat coaxial compression driver
  • Magnet: ferrite
• Power Rating
  • Noise: 250W
  • PGM: 500W
  • Peak: 1,000W
• I/O ConnectorsSpeakON NL4MP x 2 (Parallel)
• Cabinet Materialplywood
• Finishdurable polyurea painting, black
• Handleside (2)
• Pole SocketΦ35 mm x2 (Bottom, 0° or -7°)
• RiggingTop x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
• Dimensions (WxHxD)17x27.2x15.9"
• Weight48.5 lbs

More about the CHR15

Some venues have low ceilings or other architectural impediments that can detract from your audio quality. Achieve a clear, even mix for everyone in the room with the CHR15's pole mount socket. This socket offers two positions (0° or -7°) to direct the acoustic energy away from reflective surfaces. Other rigging points allow for versatile positioning so you can effectively “aim” your sound where it will have the greatest effect.

More about Yamaha’s CHR Speaker Series

Step up your sound reinforcement with the CHR Series of passive loudspeakers from Yamaha. Feature-packed and pressing the boundaries of professional-caliber audio quality, accuracy, and performance, CHR gives you flexible choices to find the ideal speaker for your application.

Designed for excellence inside and out. Sturdy enough to take on the rigors of demanding applications, each model in the series boasts a rugged cabinet constructed of premium plywood and finished in a tough polyurea coating.

With carefully selected, custom-designed transducers, as well as intelligent processing to optimize system performance, each speaker in the CHR series is made to create great sound in a specific environment, ranging from fixed installations to floor monitoring and FOH applications.
