Yamaha CTL-DM7 DM7 Control Expansion

SoundPro Item: 139806

MPN: CTL-DM7

Description
Specifications
Documentation
Questions & Answers

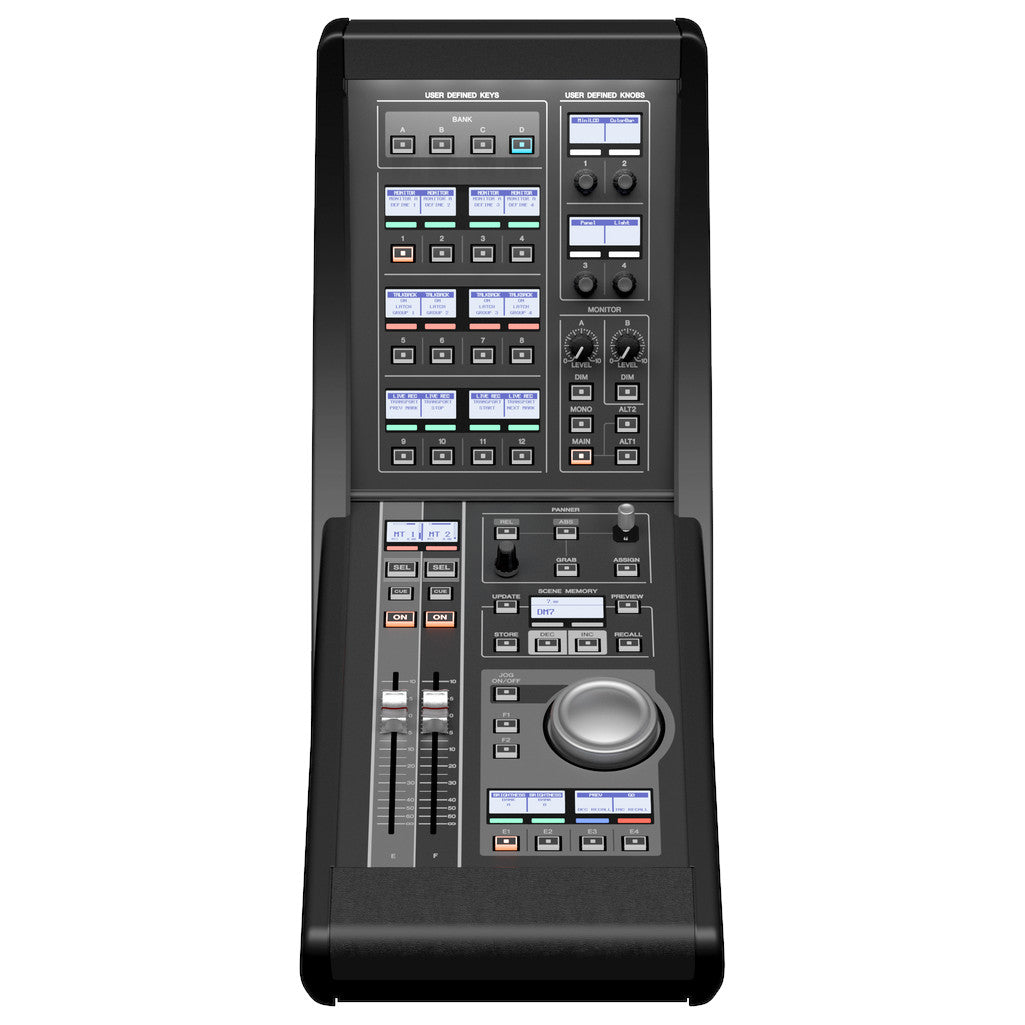

The Yamaha CTL-DM7 is a flexible control expansion for the DM7 and DM7C professional digital consoles. By adding this arm to your console, the user has an increased ability to perform key actions quickly. The expanded user interface includes 4 additional banks of 12 user-defined knobs, bringing a total of 48 independent knobs. The CTL-DM7 is also equipped with a programmable jog wheel, 2 assignable faders, and quick access to scene controls, as well as immersive and surround controls. Broadcast and theater software packs are also included.

Yamaha CTL-DM7 Features

Expanded User Interface for DM7 or DM7C professional digital consoles
Ideal for live sound including broadcast and theater applications
4 additional banks of 12 UDK - total of 48 independent UDKs
4 additional UDK’s at bottom
4 User Define Knobs
Quick access to scene controls
Immersive and Surround Controls
Programable Jog Wheel
2 assignable faders (E/F)
Flexible and dedicated Monitor Controls
Includes Broadcast and Theater Packages

CTL-DM7 DM7 Control Expansion1
Owner's Manual1
AC Power Cord1
DEK-DM7-BR License ID Leaflet1
DEK-DM7-TH License ID Leaflet1

Fader3.94" touch-sensitive motorized fader × 2
Power Requirements
- AC INPUT: 100-240 V, 50/60 Hz; AC power input: V-lock type
- EXT DC INPUT: DC 24 V±1.2 V, 0.78 A or higher, XLR 4-pin chassis connector*1
Power Consumption20W
Dimensions (WxHxD)
- DM7 CONTROL only: 7.52×12.72×22.12" (including link brackets and screws, and rubber feet)
- Linked with DM7: 38.3x12.75×22.2" (including side pads and rubber feet)
- Linked with DM7 COMPACT: 25.51×12.75×22.2" (including side pads and rubber feet)
Weight15.43 lbs
NC Value*2.
- Fan Speed LOW: NC=20
- Fan Speed HIGH: NC=30
Operating Temperature RangeMin: 0°C, Max: 40°C
Storage Temperature RangeMin: −20°C, Max: 60°C
Notes
- *1. 4pin=DC 24 V, 1pin=GND, 2,3pin=N.C.
- *2. Measured 30 cm horizontally away and vertically up from the unit (front pad).

More about Yamaha’s DM7 Series

This family of mixing consoles is characterized by flexibility, functionality, and the ability to evolve as your audio needs change. Their intuitive user interface makes them simple to operate, while their comprehensive suite of powerful features equips them for high performance in an impressive range of audio environments. Meanwhile, their compact design ensures that each DM7 model is easy to incorporate into sound setups of myriad shapes and sizes.

The DM7 Series offers a user experience that surpasses expectations, while its sonic performance meets the most stringent demands of audiences and audio professionals.

This series has been designed with scalability in mind, allowing you to set it up in a variety of configurations based on engineer preference and the requirements of specific applications.

DM7 consoles excel in a wide array of use cases, such as broadcasting, streaming, and music production, as well as live hybrid events and concert performances.
