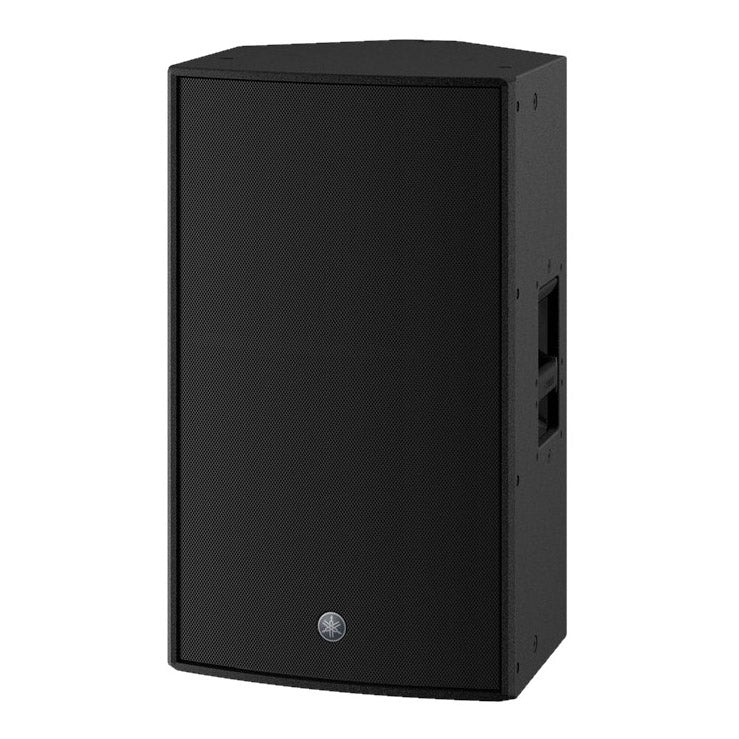

Yamaha CZR15 15-Inch Passive Speaker

The CZR15 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR15 ideal for range of live performance and installed sound environments—from live bands at outdoor festivals to DJ’s in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.

Yamaha CZR15 Features

• 2-way loudspeaker with a 2” HF and a 15" LF
• Features Yamaha's own Wide Dispersion CD Waveguide Horn
• High power 800W(PGM) power handling and Bi-amp capable
• Floor monitoring setting enables mirroring configuration
• Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
• Dual-angle pole socket
• Optional speaker cover (SPCVR-DZR15)
• Rotatable horn and variety of U-bracket options (UB-DZR15H/V) for rigging allow for very flexible setup and speaker placement
• Durable Black or White finish

• CZR15 15-Inch Passive Speaker1

• Speaker type2-way Speaker, Bass-reflex
• Frequency range (-10dB) Passive: 43 Hz - 20 kHz, Normal (*1): 34 Hz - 20 kHz, FOH (*1): 33 Hz - 20 kHz
• Coverage areaH90ﾟ x V50ﾟ Rotatable Constant Directivity Horn
• Floor Monitor Angle50° Symmetrical
• Components
  • LF: 15" Cone, 3" Voice Coil, Neodymium magnet
  • HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
• Crossover2.0 kHz
• Power rating
  • NOISE: Passive (EIA 426-A) 400 W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W
  • PGM: Passive (EIA 426-A) 800 W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 100W
  • PEAK: Passive (EIA 426-A) 1600 W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 200W
• Nominal impedancePassive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω
• SPL
  • Sensitivity (1W; 1m on axis): Passive: 97dB SPL, Bi-amp: LF: 97dB SPL, HF: 108dB SPL
  • Peak (Calculated): Passive: 129 dB SPL, Bi-amp: LF: 129dB SPL, HF: 131dB SPL
• I/O connectorsSpeakON NL4MP x 2 (Parallel)
• HandleAluminium die-cast, Side x2
• Pole socketΦ35 mm x2 (0° or -7°)
• RiggingM10 x 12
• Dimensions
  • W: 450 mm (17.7")
  • H: 761 mm (30.0") (with rubber feet)
  • D: 460 mm (18.1")
• Net weight21.3 kg (47.0 lbs)
• OptionsBracket: UB-DZR15H/V, Cover: SPCVR-DZR15
• OthersEnclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black/White

More about Yamaha’s CZR Passive Speakers

The CZR Series is a range of passive loudspeakers offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. The CZR is ideal for a range of live performance and installed sound environments— from live bands at outdoor festivals to DJ’s in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive bass performance. For even more bottom end to round out your sound, adding CXS XLF Series passive subwoofers can extend your system’s low frequency performance dramatically down to a startling 29Hz for throbbing low frequency reproduction capability that’s sure to impress.
