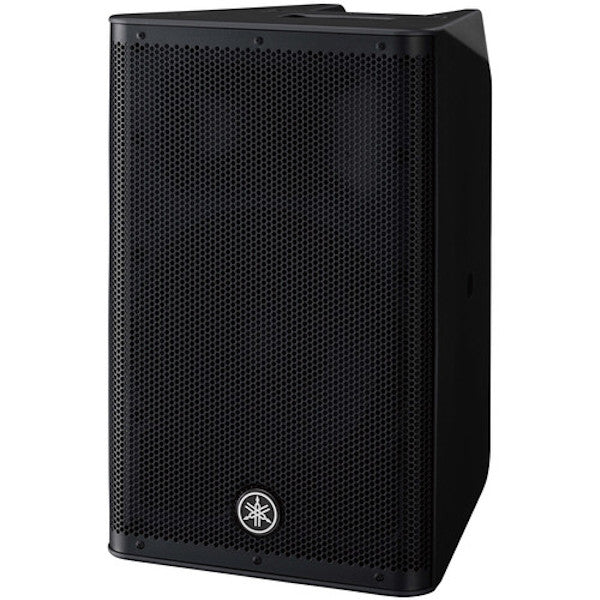

Yamaha DXR10mkII 10-Inch Powered Speaker

The DXR10mkII from Yamaha is a 10” powered speaker that delivers up to 132 dB SPL.

Its compact, portable build makes it an ideal choice for a wide range of applications, such as amplifying vocals or instruments, functioning as a floor monitor, or comprising a compact SR system. The DXR10mkII boasts optimal versatility without compromising on audio quality or powerful performance.

Yamaha DXR10mkII Features

• 10" powered loudspeaker with 1100W Class-D amplifier
• Achieves high SPL output with remarkable clarity throughout its frequency response
• 1.75" neodymium high-frequency compression driver and high-output 10" woofer which combine for a wide frequency response with powerful bass
• Precision 48-bit DSP processing for clear high-definition sound and built-in D-Contour intelligent dynamic control
• Durable and compact ABS enclosure
• Symmetrical Design for mirror-mode floor monitoring

• DXR10mkII 10" 2-Way Powered Speaker1
• UB-DXR10 (U-bracket)1

• Speaker type10" 2-way, Bi-amp powered speaker, Bass-reflex type
• Frequency Range56Hz - 20kHz
• Nominal coverage
  • H: 90°
  • L: 60°
• Components
  • LF
    • Diameter: 10" cone
    • Voice Coil: 2"
    • Magnet: Ferrite
  • HF
    • Diaphragm:1.75"
    • Type: 1" throat compression driver
    • Magnet: Neodymium
• CrossoverFIR-X tuning™ (linear phase FIR filter)
• Output powerDynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
• Maximum output level (1m; on axis)132dB SPL
• I/O connectorsINPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1
• ProcessorsD-CONTOUR: FOH/MAIN, MONITOR, OFF
• Power requirements100V - 240V, 50Hz/60Hz
• Power consumption90W
• Flying and mounting hardwareTop x2, Rear x1 (Fits for M8 x 15mm eyebolts)
• Pole socket35mm with 2-way features (0 or 7 degrees)
• Dimensions (W x H x D)12x19 3/4 x 12 1/4" (305x502x310 mm)
• Net weight30.6 lbs (13.9 kg)
• MaterialABS (Matte Finish, Black)

More about Yamaha’s DXR mkII Powered Speakers

Raw power and advanced DSP are perfectly blended in Yamaha’s next generation of the renowned DXR Series.

Boasting superior quality and clarity, DXR mkII loudspeakers deliver more SPL and feature a larger, yet much lighter 1.75” Neodymium HF compression driver.

In collaboration with NEXO, these speakers have been specifically designed to meet the needs of sound reinforcement professionals in either fixed installations or mobile live performances.
