Priced and sold as pairs
The HS3 from Yamaha is a pair of high-quality compact studio monitors for the uncompromising creator.
Yamaha HS3 Features
- Priced and sold as pairs
- 2-way bass-reflex powered speaker with 3.5" cone woofer and 0.75" dome tweeter
- 70 Hz - 22 kHz frequency response (-10 dB)
- 26W + 26W output power (Dynamic, RL=6 Ω)
- ROOM CONTROL and HIGH TRIM response controls
- XLR/TRS Phone (COMBO), RCA, and Stereo Mini inputs
- Stereo mini - RCA cable, speaker cable, and anti-slip pad included
- HS3 3.5-Inch Powered Studio Monitors2
- Stereo Mini - RCA Cable 1.5 m1
- Speaker Cable 2.5 m1
- Anti Slip Pad1
- Quick Start Guide1
- Safety Guide1
- Speaker type2-way powered speaker, Bass-reflex type
- Frequency response (-10dB) 70 Hz - 22 kHz
- Frequency response (-3dB) 85 Hz - 20 kHz
- Crossover3.2 kHz
- Maximum Output Level (Measured peak, IEC noise@1m) 100 dB SPL
- Components
- HF: 0.75" Dome
- LF: 3.5" Cone
- Nominal impedance6Ω
- I/O connectors[Input Connector] L Side: COMBO (XLR/TRS Phone) ×2, RCA ×2, Stereo Mini, R Side: Speaker Input; [Output Connector] L Side: Headphone, Speaker Output
- Output power26 W + 26 W (Dynamic, RL=6 Ω), 20 W + 20 W (THD 0.1%, 1kHz, RL=6 Ω)
- Input sensitivityLINE 1 (COMBO): +4 dBu, LINE 2 (RCA, ST Mini): -10 dBu (Volume: Maximum)
- Input LevelLINE 1 (COMBO): +20 dBu, LINE 2 (RCA, ST Mini): +6 dBu (Maximum Input)
- Input impedanceLINE 1 (COMBO): 20 kΩ, LINE 2 (RCA, ST Mini): 10 kΩ

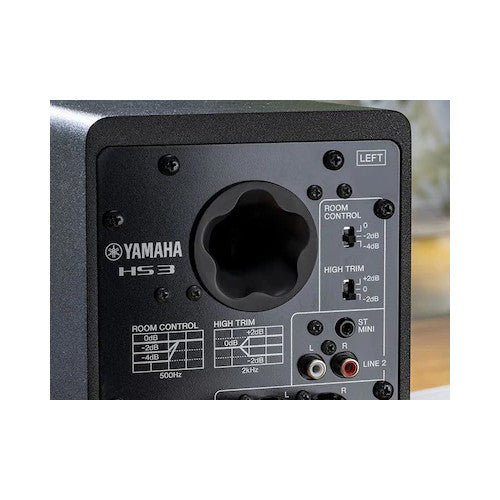

- ControlsFront: Volume, Rear: ROOM CONTROL SWITCH (0/-2/-4 dB under 500 Hz), HIGH TRIM SWITCH (+2/0/-2 dB above 2 kHz)
- IndicatorsPower ON (White LED)
- Power requirementsDepending on area of purchase; 100-240 V, 50/60 Hz (*)
- Power consumption15W
- Cabinet materialMDF
- Dimensions
- W: L Side: 132 mm (5.2"), R Side: 132 mm (5.2")
- H: L Side: 223 mm (8.8"), R Side: 223 mm (8.8")
- D: L Side: 189 mm (7.4"), R Side: 177 mm (7.0")
- Net weightL Side: 2.8 kg (6.2 lb), R Side: 2.1 kg (4.6 lb)
More about Yamaha's HS Studio Monitors
Experience exceptional accuracy with Yamaha’s HS Series of speakers. These are the perfect studio reference monitors for any audio application that requires precision and accuracy, such as mixing, music production, and recording—all from speaker monitors that deliver a concise sound image, high resolution, and flat response in close quarters.
HS Series speakers deliver consistent, high-resolution sound with exceptionally flat response across the sound spectrum. Their bi-amp design is perfectly matched to the transducers, with a separate amp for the woofer and tweeter each. Inside and out, this series of monitor speakers is built to enhance your sound. Their cabinets eliminate unwanted resonance. Constructed of dense and resilient MDF, the enclosures also feature a three-way mitered-joint technique that anchors the corners to improve durability and eliminate unwanted resonance. Ready to meet the demands of professional audio production applications, the HS Series also includes a speaker port design that reduces audible noise up to 6dB for better sonic clarity. In addition, full-range models feature two response controls that allow you to adapt the speakers’ settings to the specific acoustics of your space’s shape and size.
