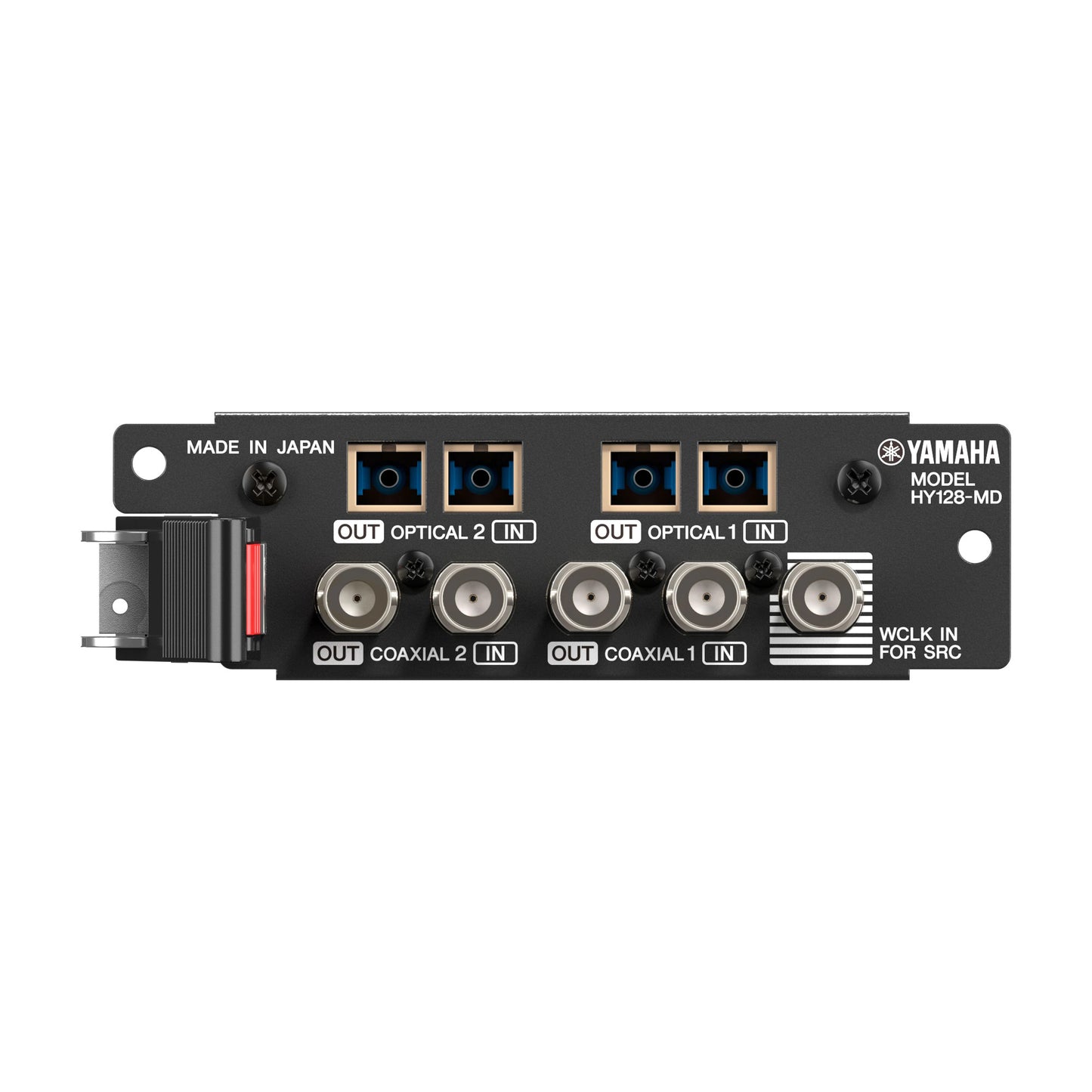

Yamaha HY128-MD Rivage Audio Interface Expansion Card

Yamaha’s HY128-MD Rivage is an audio interface expansion card that provides MADI connectivity. It transmits and receives up to 128 input and 128 output channels of uncompressed 48kHz/24-bit digital audio. Onboard sample rate conversion allows interconnection between devices operating at different sampling rates. Optical and coaxial connectors support redundant connections. If a problem occurs in one transmission line the system automatically switches to the second connection.

Yamaha HY128-MD Features

• Transmits and receives up to 128 input and 128 output channels of uncompressed 48kHz/24-bit digital audio
• Optical and coaxial connectors support redundant connections. If a problem occurs in one transmission line, the system automatically switches to the second connection

• HY128-MD Rivage Audio Interface Expansion Card1

• Dimensions (WxHxD)4.9x1.5x8.2" (125x37x207mm)
• Net Weight1 lb (0.45 kg)

More about Yamaha’s RIVAGE PM Series

Achieve the ultimate sound in a comprehensive ecosystem of audio products: Yamaha’s RIVAGE PM. Comprised of mixing consoles, control surfaces, processors, and more, RIVAGE PM systems allow for optimized audio efficiency in a wide range of professional applications and a variety of venues. Offering tons of features and functionality, this series is ideal for live sound engineers who crave creative freedom and flexibility.

All RIVAGE PM consoles offer a similar interface for easy alternating between models. Their intuitive layout shares easy-to-reach, simple-to-read touch panel displays and a Selecting Channel section on a raised upper panel. All consoles feature up to three bays of 12 faders each, and touch-sensitive display panels, as well as Yamaha’s Selected Channel Section for direct, fast access to all channel parameters.

All RIVAGE PM system components are compatible, allowing you to mix and match them to build the ideal system for your application’s scale and your project’s budget. What’s more, components from earlier systems will work in combination with newer models, delivering even more consistency over your system without the need to start your setup from scratch.
