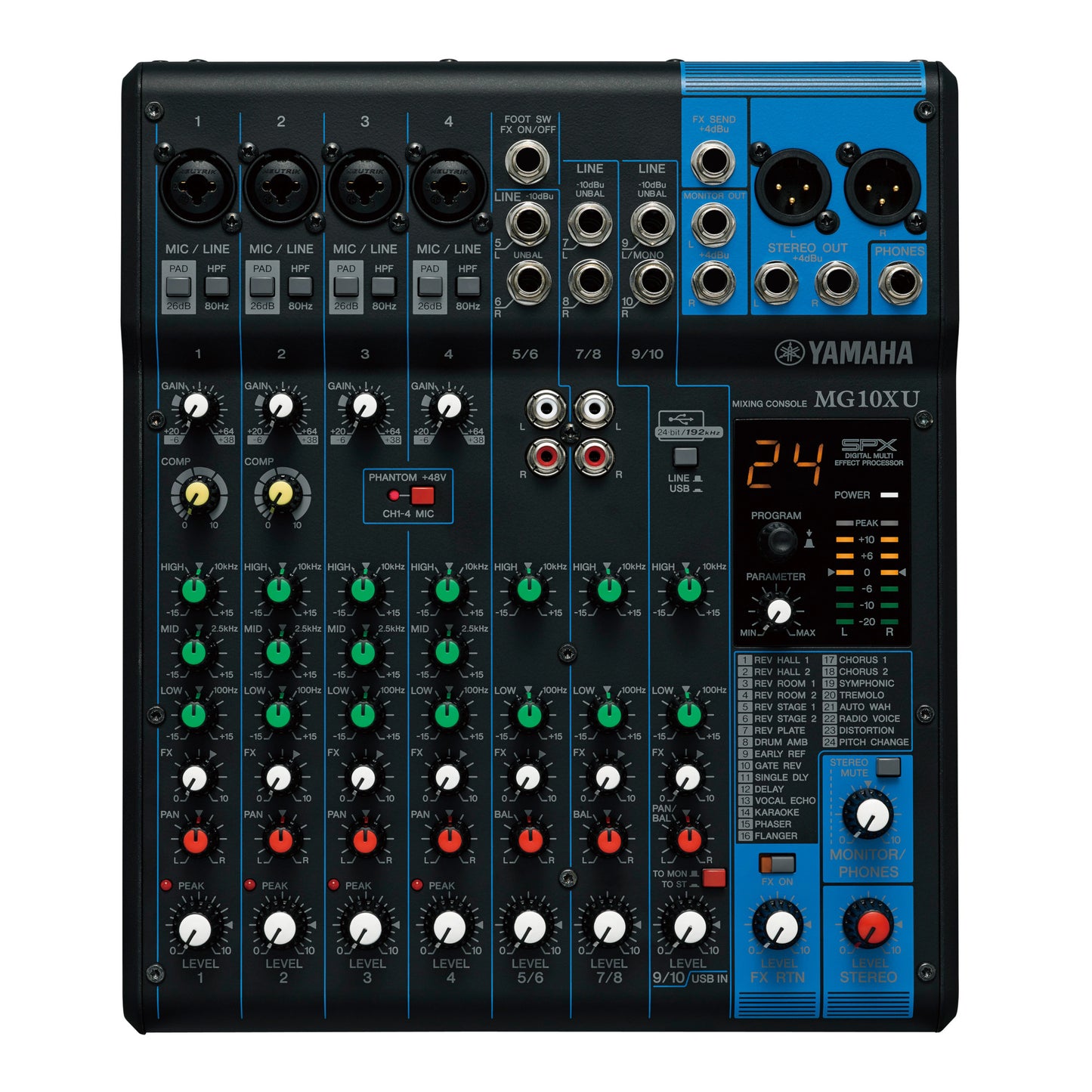

The MG10XU is a compact analog mixing console in Yamaha’s MG series. This 10-channel console provides a maximum of 4 mic / 10 line inputs (4 mono + 3 stereo) and 1 stereo bus. In addition to all the benefits of the MG series consoles itself, the MG10XU includes the Cubase AI DAW software download version.
Yamaha MG10XU Features
- 10-channel mixing console with effects and USB connectivity
- Perfect for installed, recording, or live music settings in many applications
- Tweak your mix for livelier guitars, punchier bass, a tighter snare, and more
- Includes Cubase AI DAW software download version
- Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
- 1 Stereo Bus
- 1 AUX (incl. FX)
- "D-PRE" mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- High-grade effects: SPX with 24 programs
- 24-bit / 192kHz 2in / 2out USB Audio functions
- Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Metal chassis
- MG10XU 10-channel analog mixer with effects and USB1
- Power adaptor1
- Cubase AI download information1
- On-board processorsSPX algorithm 24 programs
- Input channels4 mono [mic/line], 3 stereo [line]
- Output channels2 stereo out, 1 monitor out, 1 phones, 1 aux send
- Bus1 stereo, 1 aux[fx]
- Input channel function
- Pad: 26dB (mono)
- HPF: 80Hz, 12dB/oct (mono)
- EQ high: gain +15dB/-15dB; frequency 10kHz shelving
- EQ mid: gain +15dB/-15dB; frequency 2.5kHz peaking
- EQ low: gain +15dB/-15dB; frequency 100Hz shelving
- Peak LED: LED turns on when post EQ signal reaches 3dB below clipping
- Level meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
- THD<0.02%
- Frequency response20Hz - 48kHz +/-0.5dB
- Equivalent input noise-128dBu
- Residual output noise-102dBu
- Crosstalk-83dB
- Power consumption22.9W
- Dimensions (WxHxD)9.6x2.8x11.6"
- Weight4.63 lbs (2.1 kg)
More about Yamaha's MG Mixing Consoles
MG mixers feature some of the same studio-quality preamps and powerful digital processing technologies from high-end professional consoles, packaged together in rugged reliable housing.
With 6-20 channel options to choose from, there is an MG console perfect for installed, recording, or live music settings in many applications.
Premium D-PRE Preamp
Sonic purity and unmatched sound quality start with the D-PRE Class-A mic preamps present in all MG series mixers. This preamp uses an inverted Darlington circuit comprising two cascading transistors in a design that supplies more power with lower impedance. The overall construction of the preamp allows each MG console to deliver incredible and realistic sound with minimal distortion, and a wide frequency range makes sure it can handle signals from any audio source accurately.
Op-amps for Excellent Audio
Custom-made MG01 op-amps put sound quality before electrical design and efficiency. Silicon wafers and copper wire are some of the materials included to achieve excellent resolution.
Powerful, Personalized Features
Phantom power and pad switch lets you take advantage of the upsides of condenser microphones while dodging some of the downsides. The pad switch attenuates high input signals from miked instruments, helping avoid clipping.
Tools for Crafting Your Sound
One-knob compressors, EQ and high-pass filters, and Aux sends all give you the power to tweak your mix for livelier guitars, punchier bass, a tighter snare, and any other adjustments you want to make.
Connectivity to Customize Your Mixing Setup
All the MG consoles have high-quality balanced XLR connectors on mono microphone/line channels and XLR-equipped stereo channels. A host of inputs and outputs are available for you to connect all the gear you’re working with.
