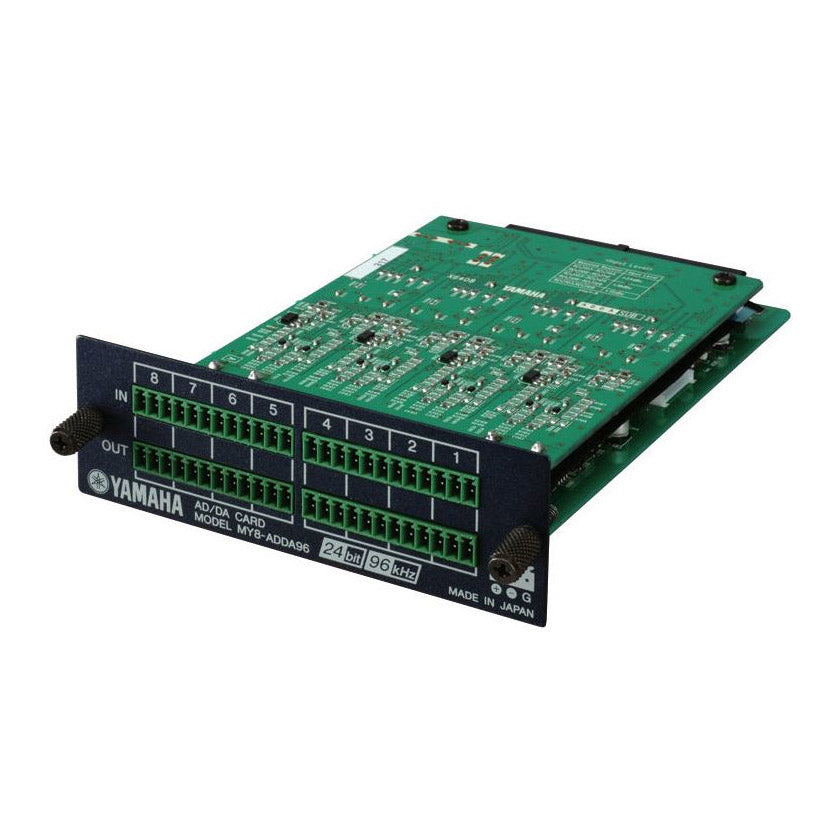

Yamaha MY8ADDA96 8-Channel Analog I/O Expansion Card

In addition to full 96 kHz support, the MY8-ADDA96 features Euroblock connectors for optimum reliability and connection ease in a wide variety of installations.

Offering 8 channels of analog input plus 8 channels of analog output in a single-slot card, the MY8-ADDA96 has been specifically designed for use with Yamaha's DME24N or DME64N Digital Mixing Engines, but is also an excellent I/O expansion choice for Yamaha digital mixing consoles.

Another advantage is low power consumption that allows up to four of these cards to be installed in one DME64N unit providing a total of 32 analog inputs and outputs without placing excessive power load on the system. And, of course, the MY8-ADDA96 employs high-performance A/D and D/A converters that deliver superior sound for any application.

Yamaha MY8ADDA96 Features

• 24bit resolution, 96kHz compatible 8-in/8-out analog audio interface
• EuroBlock connectors
• Max input/output level before clip: +24dBu
• Dimensions: 120x40x176mm (4.7x1.6x6.9")

• MY8ADDA96 8-Channel Analog I/O Expansion Card1

• Channel Count96kHz compatible 8IN / 8OUT
• Format Analog
• Resolution 24bit
• Connector EuroBlock connectors (balanced)
• Analog Input Characteristics
  • Input Terminals: In 1-8
  • Actual Load Impedance: 10kΩ
  • For Use with Nominal: 6000Ω Lines
  • Input Level (Max. before Clip): +24dBu (12.28V)
  • Connector: Euroblock (balanced)
  • *1. In these specifications, when dBu represents are specific voltage, 0 dBu is referenced to 0.775 Vrms.
  • *2.AD converters are 24bit linear, 128 times oversampling. (Fs=44.1kHz, 48kHz)/64 times oversampling. (Fs=88.2kHz, 96kHz
• Analog Output Characteristics
  • Output Terminals: Out 1-8
  • Actual Source Impedance: 10kΩ
  • For Use with Nominal: 600Ω Lines
  • Output Level (Max. before Clip): +24dBu (12.28V)
  • Connector: Euroblock (balanced)
  • *1. In these specifications, when dBu represents are specific voltage, 0 dBu is referenced to 0.775 Vrms.
  • *2.DA converters are 24bit linear, 128 times oversampling. (Fs=44.1kHz, 48kHz)/64 times oversampling. (Fs=88.2kHz, 96kHz)
