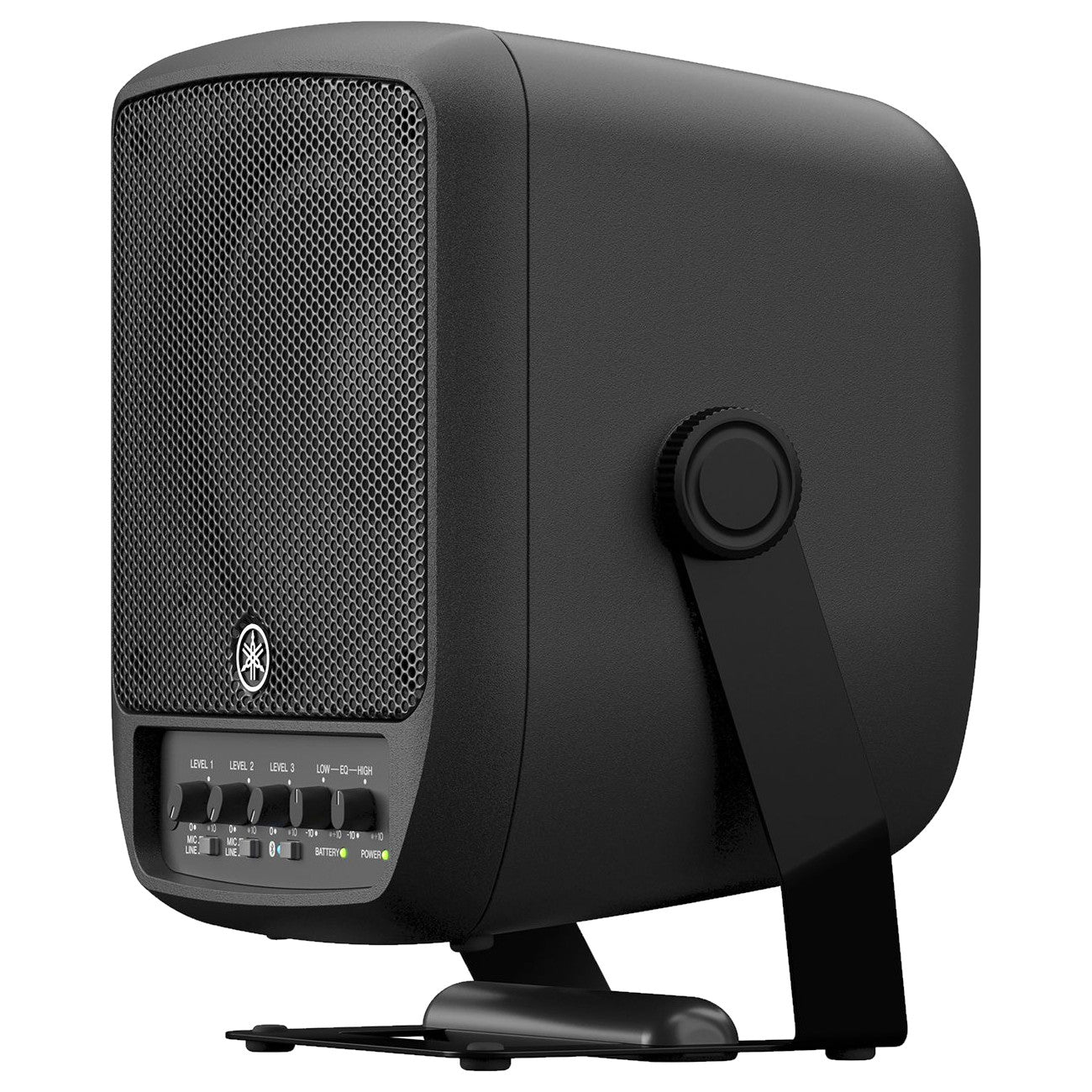

Set up your sound wherever you need it with the STAGEPAS100BTR with included battery from Yamaha.
More than just a speaker, this portable, battery-powered PA speaker system provides optimal mobility with impressive sonic performance, allowing you to turn any location into a live stage for gigs.
PLEASE NOTE: This model includes a battery. If you’re looking for the standard model (without a battery), see the STAGEPAS100.
Yamaha STAGEPAS100BTR Features
- Portable Battery Powered PA Speaker System
- Great for live stage performances or gigging
- 100W Class-D amplifier
- 1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
- 3-channel mixer (2 monaural mic/line + 1 line)
- Equipped with a 2-band master EQ
- Compatible with Hi-Z input (Channel 2 only)
- Equipped with mix-out
- Carrying handle doubles as an adjustable stand
- Compatible with audio accompaniment over Bluetooth
- Internal lithium-ion battery
- STAGEPAS100BTR Portable Battery Powered PA Speaker System1
- Power cord1
- PA-500 AC adapter1
- Type2-way Bi-amp Powered Speaker with mixer
- I/O
- INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line)
- OUTPUT: XLR3-32 (INPUT 1-3 mix)
- Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1
- Mixing capability
- Mixing channels: >3
- Input channel functions: Hi-Z: CH2
- Output channel functions: 2 Band EQ
- Speaker typeCoaxial speaker with compression driver
- Frequency range (-10dB)70 Hz – 20 kHz
- Coverage areaH90ﾟ x V90ﾟ
- Crossover1.8 kHz (FIR-X)
- Maximum output level (1m; on axis)120 dB SPL *1
- Components
- LF: 6.5" Cone, 1.7" voice coil
- HF: 1" throat compression driver, 1.4" voice coil
- Amplifier classClass-D
- Power rating (Dynamic)100 W (LF: 93 W, HF: 7 W)
- CoolingNatural convection (no fan)
- Power consumption10W (Idle), 30W (1/8 power)
- Power requirements100-240 V 50/60 Hz
- Battery
- Type: Rechargeable Lithium ion battery pack
- Capacity: 60Wh
- Operating Time: Maximum 6 hrs, 1/16 power continuous 5 hrs
- Charging Time: Approx. 2.5 hrs
- Cabinet materialPlastic (PP)
- HandleBottom x1 (Rotatable)
- Flying and mounting hardware1 × 3/8", depth 12 mm (center of handle)
- Dimensions (WxHxD)9.5x12.3x8.5" (239x310x215mm), with handle
- Weight11.5 lbs (5.2 kg), without AC adaptor
More about the STAGEPAS100BTR
This PA system features a powerful, high-quality coaxial compression driver, proprietary FIR-X filters for the HF and LF crossover to deliver sound pressure, precise phase response, and a natural dispersion. The resulting sound is nuanced, clear, and loud enough to ensure everyone in your audience hears your performance loud and clear.
Great for Gigging
Lightweight and durable, the STAGEPAS100BTR takes portability to a new level. It also boasts effortless operation and setup so you can unload at a gig and start sharing your sound in moments. Just turn the power on, connect a microphone and instrument, turn up the volume, and you're ready to go. The STAGEPAS100BTR also includes a master EQ right on the front panel, allowing you to adjust your mix in the moment.
