Complex network switch setup can now be accomplished easily by anyone thanks to Yamaha’s SWP1 series L2 Gigabit Dante switches. Specifically created to deliver maximum benefit with the greatest possible setup and operating ease, the SWP1 offers several advantages and conveniences that cannot be found in other network switch configurations. One switch setting optimizes SWP1 series network switches for Dante operation, and the dedicated computer app Yamaha LAN Monitor delivers “network visibility” for thorough monitoring and control. Many of the functions made possible with the SWP1 are all possible with one click or one button press.

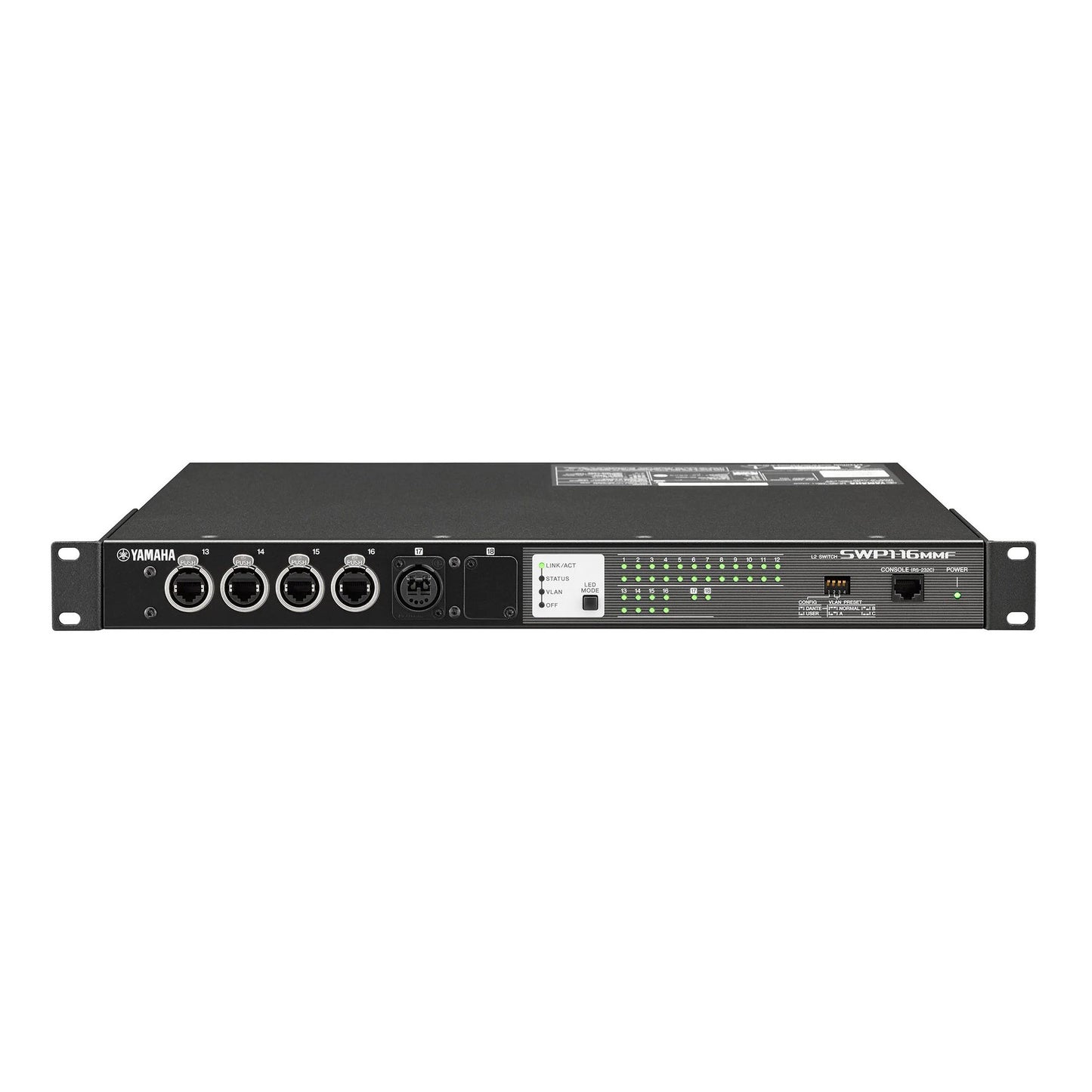

Yamaha SWP1-16MMF Features
- Ideal for Dante network systems
- 12etherCON ports
- 4 RJ45 ports
- 1 opticalCON port
- Option slot to add another port
- DIP switch Dante optimization
- 3 preset VLAN types to handle multiple services simultaneously
- Network visibility
- SWP1-16MMF L2 switch1
- Switching capacity36 Gbit/s
- Throughput27 Mpps
- Frame buffer1024kB
- VLANPort VLAN, Tag VLAN (IEEE802.1Q), Private VLAN
- Max number of VLANs256 (VLAN ID 1-4,094) *VLAN ID 1 is the default VLAN ID
- IP multicastIGMP Snooping (v1/v2/v3)
- QoS8 egress queues, Policy-based QoS, Remarking (CoS, ToS, DSCP), Scheduling (SP, WRR)
- Flow controlIEEE802.3x (Full-duplex), back pressure (Half-duplex)
- DIP switchesCONFIG, VLAN PRESET
- Power supply (AC IN inlet)AC100V-240V, 50/60Hz, internal power supply, locking type
- External power supply requirements24VDC+/-2V, 1A, XLR-4-32 type connector
- Max power consumption16W, 0.29A
- Heat dissipation14.0kcal/h
- Operating temperature32°F to 104°F (0°C to 40°C)
- Dimensions (WxHxD)18.89x1.73x14.25"
- Weight10.14 lbs (4.6 kg)
More about Yamaha’s SWP1 Network Switches
Audio network setup, monitoring, and operation are easier than ever with Yamaha’s SWP1 Series of network switches. Putting to use IT and pro audio expertise, these switches are an ideal solution for professional audio installations.
Audio networking technology has become one of the fastest-growing aspects of live sound and pro audio gear. With SWP1, a complex network switch setup can now be accomplished by anyone. All it takes is a simple setting to optimize these switches for Dante. Meanwhile, the Yamaha LAN Monitor computer application offers network visibility for comprehensive monitoring and control.
