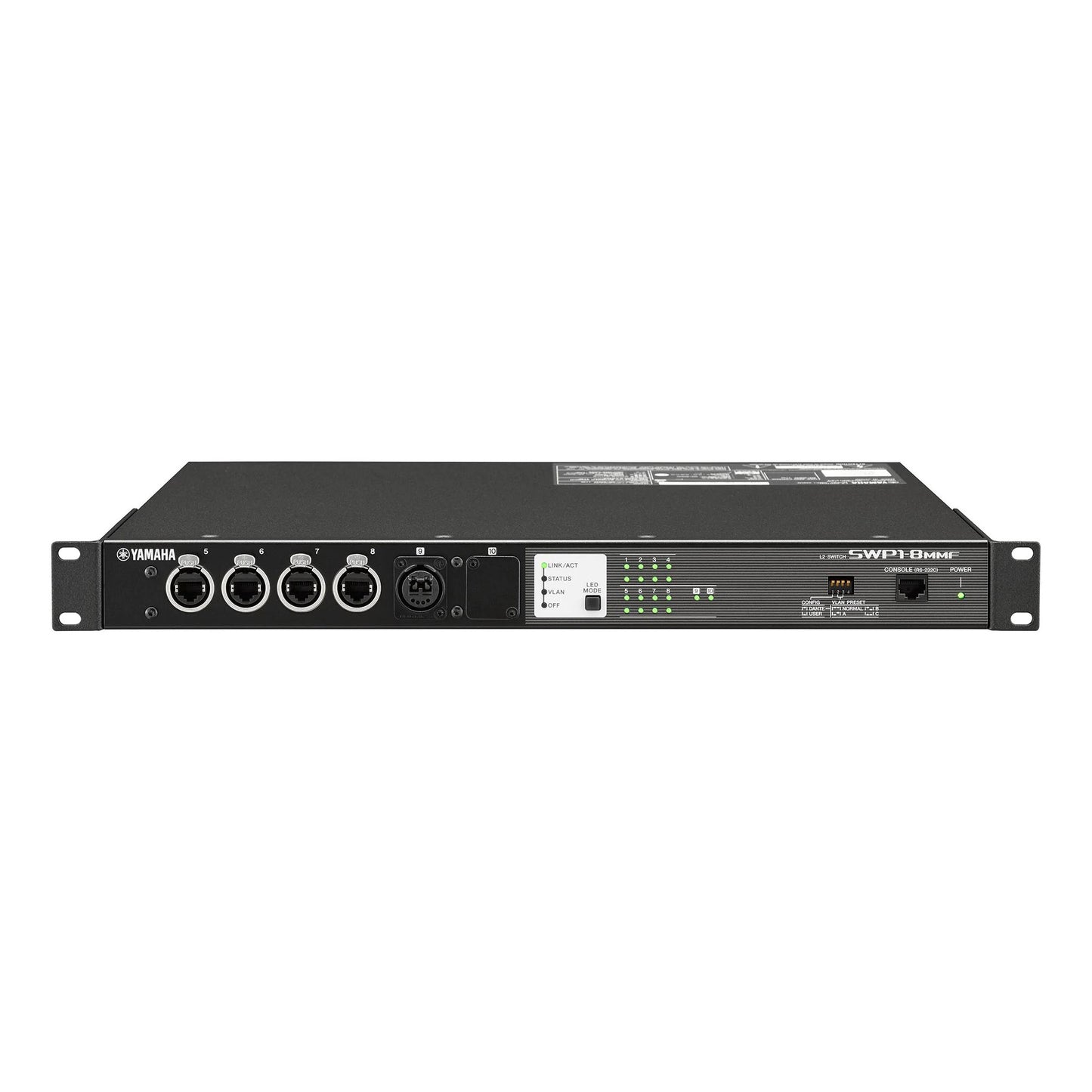

Yamaha SWP1-8MMF 8-Port L2 Network Switch

Tailored for sound installation and live audio networking purposes, the SWP1-8MMF L2 Switch by Yamaha is equipped with eight etherCON ports, along with one opticalCON port. Additionally, it offers the flexibility of an option slot for an extra port, catering to specific connectivity requirements.

Yamaha SWP1-8MMF Features

• Network Switch for installed audio
• Tailored for live audio networks
• A great choice for professional audio contractors and integrators
• Effortless integration via Dante
• etherCON Connectors: 4 front / 4 rear
• opticalCON Connectors: 1 front
• Optional optical module slot: 1 front
• Power consumption: 11W

• SWP1-8MMF L2 Switch1
• Power cord1
• Owner's manual1

• Number of LAN ports (1000BASE-T/100BASE-TX/10BASE-T, etherCON connector) 8
• Number of SFP ports (1000BASE-SX, opticalCON connector) 2 (1 optical module is installed as standard)
• Console port 1 (RJ-45)
• Automatic negotiation Available
• Auto MDI/MDI-X Available
• Switching capacity 20 Gbit/s
• Throughput 15 Mpps
• Maximum number of MAC addresses 16,384
• Frame buffer 1024 kB
• VLAN Port VLAN, Tag VLAN (IEEE802.1Q), Private VLAN
• Maximum number of VLANs 256 (VLAN ID 1-4,094) *VLAN ID 1 is the default VLAN ID
• IP multicast IGMP Snooping (v1/v2/v3)
• QoS 8 egress queues, Policy-based QoS, Remarking (CoS, ToS, DSCP), Scheduling (SP, WRR)
• Flow control IEEE802.3x (Full-duplex), back pressure (Half-duplex)
• Support functions Storm control, HOL blocking prevention, Loop detection, ACL, SNMP agents, Link aggregation (IEEE 802.3ad LACP, Static), Spanning tree (STP*, RSTP*, MSTP), Port mirroring, Port shutdown, Link speed down shift, Packet counter, Power saving mode (IEEE802.3az EEE; Disabled in DANTE mode), DHCP client, Logging, Firmware download via TFTP/HTTP, Config file download via TFTP *STP and RSTP are supported via downward compatibility of MSTP.
• DIP switches CONFIG, VLAN PRESET
• Indicators Front: POWER, LED MODE×4, PORT×8×2*, SFP×2 *The LED MODE button allows the PORT lamps to be switched between indicating LINK/ACT-SPEED, STATUS, or VLAN.
• Operating temperature 0 to 40°C
• Storage temperature -20 to 60°C
• Power supply (AC IN inlet) AC100V-240V, 50/60Hz, Internal power supply (no power switch), Power supply inlet: locking type
• Power supply (EXT DC INPUT inlet) External power supply requirements: 24VDC±2V, 1A, XLR-4-32 type Connector
• Maximum power consumption 11 W, 0.21 A
• Heat dissipation 9.5 kcal/h
• Chassis Metal case, no fan
• Hazardous substances management RoHS compliant
• Dimensions (WxHxD) 480x44x362mm
• Weight 4.2 kg

Networking Audio Gear - Optimizing Your Sound

Among the many options that audio systems can provide, DANTE capability lets you enjoy enhanced connectivity and functionality. Network systems are typically designed to be permanently installed for a clean, minimalistic look to your audio setup.

Networked audio is ideal for meeting the needs of venues of all shapes and sizes, including houses of worship, sports stadiums, clubs, concert halls, schools, convention centers, and so on.

More about Yamaha's SWP1 Network Switches

Audio network setup, monitoring, and operation are easier than ever with Yamaha’s SWP1 Series of network switches. Putting to use IT and pro audio expertise, these switches are an ideal solution for professional audio installations.

Audio networking technology has become one of the fastest-growing aspects of live sound and pro audio gear. With SWP1, a complex network switch setup can now be accomplished by anyone. All it takes is a simple setting to optimize these switches for Dante. Meanwhile, the Yamaha LAN Monitor computer application offers network visibility for comprehensive monitoring and control.
