Yamaha VC8N 8-Inch Ceiling Speaker without Back Can

The VC8N from Yamaha is an 8-inch ceiling speaker without a back can. It is designed to give budget-conscious commercial venues high-quality sound coverage.

Yamaha VC8N Features

• Engineered for optimum BGM and voice reproduction
• No back can low-profile design allows installation in limited ceiling spaces
• Direct support for low-impedance or high-impedance connections
• 16Ω in low-impedance is advantageous when connecting multiple speakers in low impedance system
• Double-threaded speaker clamp screws for speedy tightening
• Paintable grilles with magnetic catches
• Black and white versions available
• 2.8 kg (6.2 lbs), Ø325 x D131 mm (Ø12-3/4” x D5-1/8”)
• Single unit package

• VC8N 8" 2-Way Ceiling Speaker without Back Can1
• C-Ring1
• Tile Rails2
• Grille1
• Safety wire1
• Cutout template1
• Owner's Manual1

• Speaker Type2way Coaxial type (without backcan)
• Frequency Range (-10dB) 52 Hz - 20 kHz (Half-space: 2π)
• Nominal Coverage110° conical (Half-space: 2π)
• Components
  • LF: 8” Cone
  • HF: 1” Soft Dome
• Power Rating
  • NOISE: 25W
  • PGM: 50W
  • PEAK: 100W
• Nominal Impedance16Ω
• Transformer Taps
  • 100V: 12W, 6W, 3W
  • 70V: 12W, 6W, 3W, 1.5W
• SPL
  • Sensitivity (1W; 1m on axis): 91 dB SPL (Half-space 2π)
  • Peak (Calculated): 111 dB SPL (Calculated, 1 m)
• I/O ConnectorsPush terminal (WAGO 294 /2 pin) × 1, Wire size : Solid conductor Min. AWG18 (0.75 sq) / Max. AWG12 (3.5 sq), Standard conductor Min. AWG18 (0.75 sq) / Max. AWG14 (2 sq)
• Protection Circuit (Load Protection)Full-range power limiting to protect network and transducers
• FinishVC8NB: Black (approx. Munsell N3), VC8NW: White (approx. Munsell N9.3)
• Dimensions
  • Diameter: 325 mm (12 - 3/4")
  • D: 131 mm (5 - 1/8")
• Net Weight2.8 kg (6.2 lbs)
• Cutout SizeØ285 mm (Ø11 - 1/4")
• Required Ceiling Board Thickness2 mm – 37 mm
• CertificationCE, RoHS

More about Yamaha'c VC Ceiling Speakers

Made for commercial installations, Yamaha’s VC series of ceiling speakers deliver high-quality sound without breaking the bank. These speakers are designed to offer wide coverage areas for large spaces such as retail, offices, restaurants, healthcare facilities, transportation terminals, and more.

Ideal for environments with limited ceiling or wall space, VC speakers boast a lightweight, low-profile design with reduced physical depth. Their elegant aesthetics effortlessly blend into the installation for a polished, professional look.

Easily adaptable to a wide range of installations, VC speakers offer 16-ohm capacity and support both high- and low-impedance connections. Depending on your application’s needs, you can install a large number of speakers on either impedance connection. In addition, speaker wattage can be switched easily, even after installation.

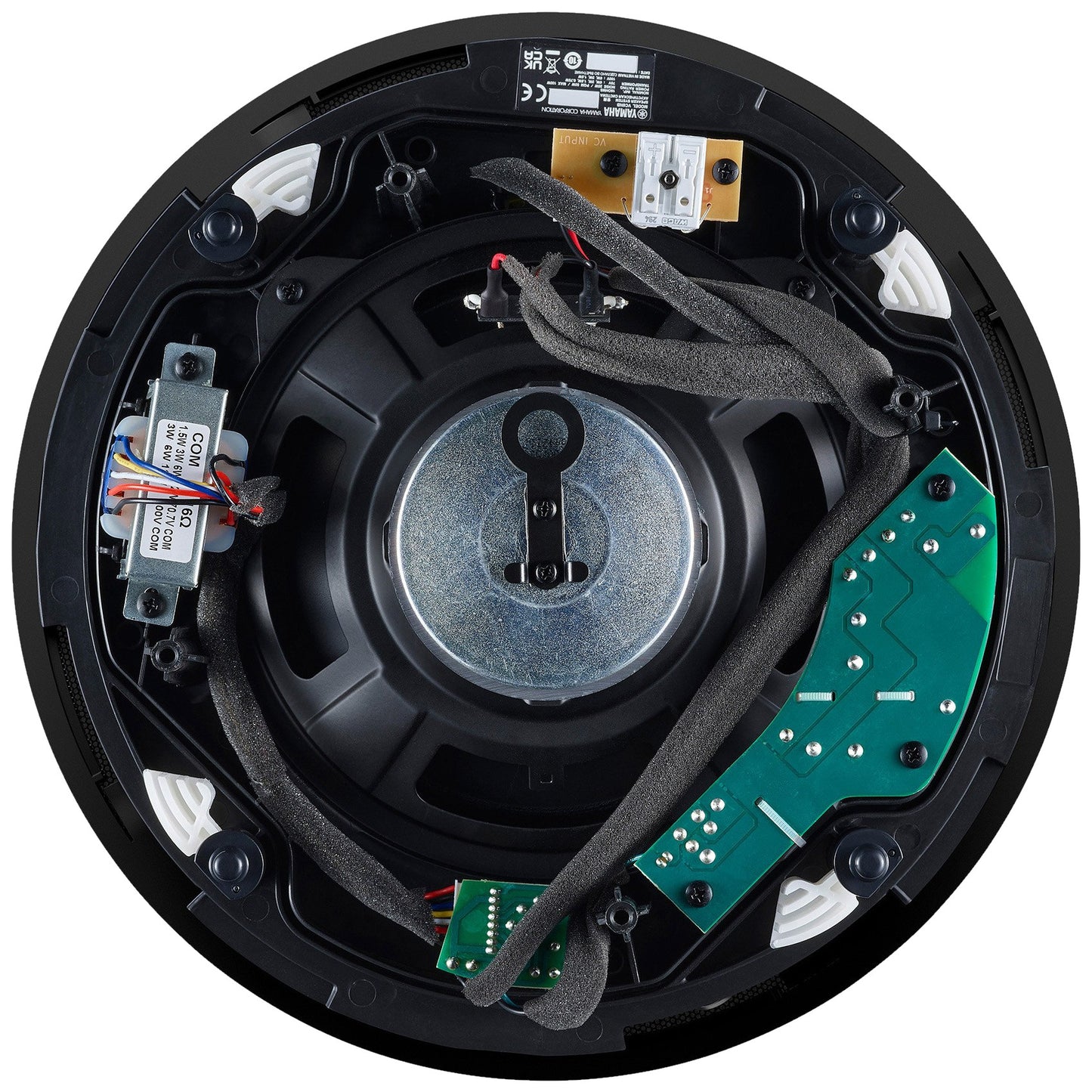

VC Series is comprised of six models: three with back cans and three without. The three without back cans (N) are lighter in weight and have a smaller price point; these models come with back covers to protect the speaker unit and interior circuitry from dust and moisture.

The mechanical features of VC Series speakers allow them to be installed safer and faster. Large mounting clamps with non-slip treads ensure secure mounting.
