Priced and sold as pairs

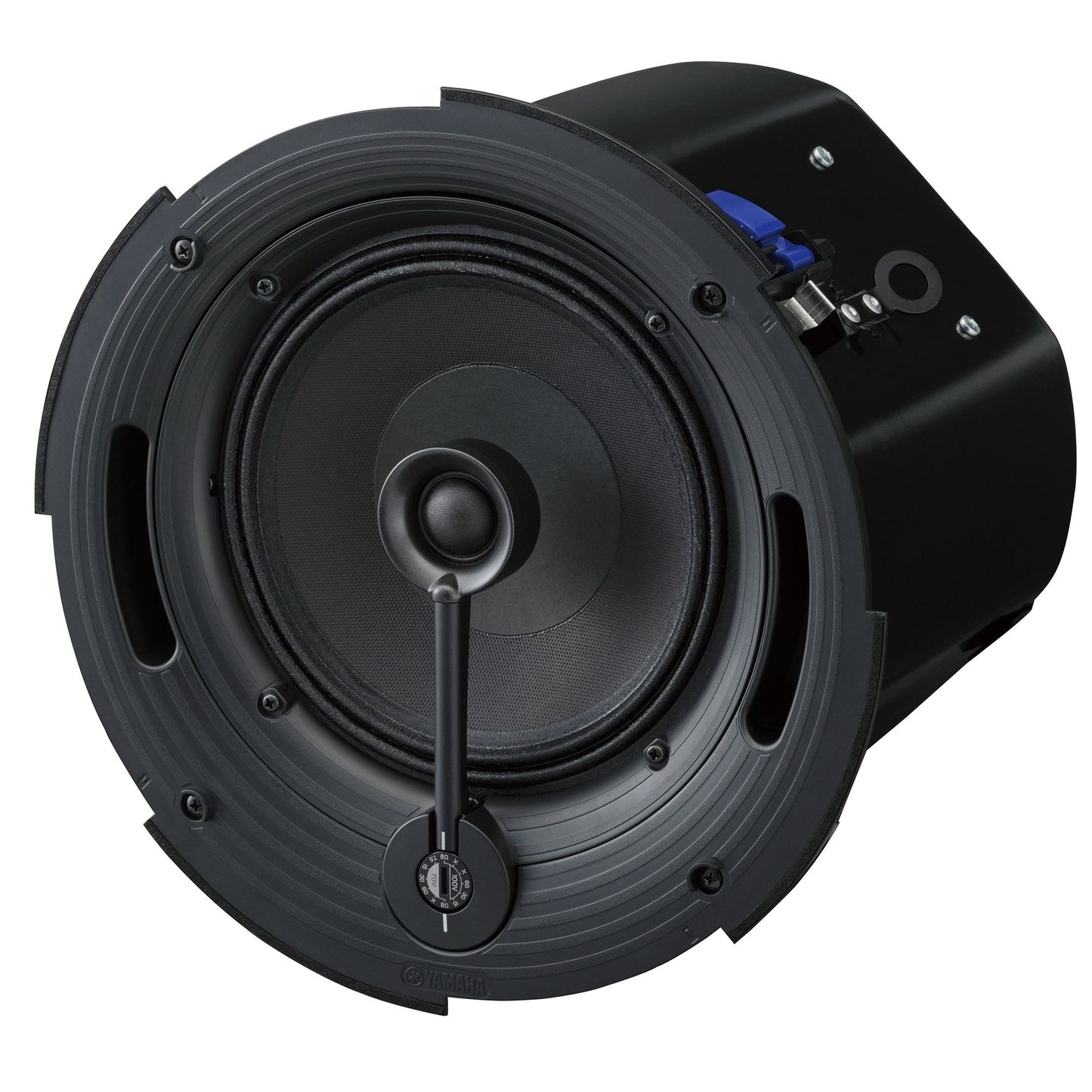

The VXC8 from Yamaha is an 8” in-ceiling speaker designed for use in commercial installations that require stellar music reproduction and accurate vocals for overhead announcements.
Yamaha VXC8 Features
- Priced and sold as pairs
- Series offers three different woofer sizes in either black or white
- Features newly customized transducers for superb music reproduction as well ascrystal clear announcements
- Equipped with internal transformers that allow both high and low impedance drive, which can be selected by simply switching the tap on the baffle
- Anti-Drop tab allows the speakers to be mounted temporarily in the ceiling for improved safety and ease of installation
- A flexible carrying band makes the speakers very portable and allows carrying multiple speakers at once
- Comes complete with O-rings and tile rails for safer and smoother installation
- Overload protection circuit provided to protect speaker components
- Comes with paintable speaker grilles for flexible design ideas
- VXC8 8" 2-Way Ceiling Speakers2
- O-ring2
- Tile Rail4
- Cutout Template1
- Speaker Type2-way, Acoustic suspension
- Frequency Range (-10dB) 55Hz - 20kHz (Half-space:2π)
- Nominal Coverage100° conical (Half-space :2π)
- Components8" Cone LF, 1” soft dome
- Power Rating
- NOISE: 90W
- PGM: 180W
- PEAK: 360W
- Nominal Impedance8Ω
- Transformer Taps
- 100V: 60W (170Ω), 30W (330Ω), 15W (670Ω)
- 70V: 60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω)
- SPL
- Sensitivity (1W; 1m on axis): 90 dB SPL (Half-space 2π)
- Peak (Calculated): 116dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)
- I/O Connectors1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -)
- FinishBlack or white
- Dimensions
- Diameter: 325mm (12.8")
- D: 259mm (10.2")
- Net Weight6.6kg (14.6lbs)
- Cutout SizeØ285 mm (Ø11 1/4")
- Required Ceiling Board Thickness5 mm – 35 mm
- CertificateUL1480, NFPA70, CE, EAC, RoHS
More about Yamaha's VXC In-Ceiling Speakers
Superb music reproduction and clear speech intelligibility are at the heart of Yamaha’s VXC Series of in-ceiling loudspeakers. Combining premium acoustics with an elegant design, VXC delivers quintessential quality in models that have been optimized for safe, easy installation. This series is comprised of a comprehensive range of models that vary in coverage patterns and frequency response, while their enclosures are available in black or white finishes and can be painted to better match any décor or interior design for seamless integration into your space.
VXC speakers are designed to emphasize aesthetics without compromising functionality, so you get the sound you want without visual distraction. From network component selection and the placement of acoustic absorption material to premium transducers and enclosures that optimize low-frequency response, VXC is characterized by a build that offers unprecedented natural sound reproduction. For example, an innovative tweeter design provides unrestricted woofer movement for improved sound clarity, which is further enhanced by the hexagonal grille. An internal transformer enables high-impedance operation while the 8-ohm bypass switch supports low-impedance functionality. In addition, VXC models feature anti-drop tabs that enable them to be temporarily mounted in the ceiling for safer, easier installation.
