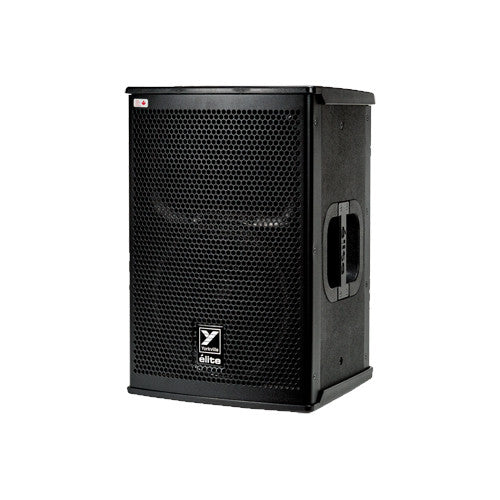

The EF10 from Yorkville is a 10-Inch Passive Speaker. Building on the market success and positive user reaction to the Elite powered cabinets, Yorkville Sound introduces three new elite passive speakers. Now available in 10, 12 and 15-inch configurations, the passive elites' provide the perfect solution for installations and venues with existing power amps.
Yorkville EF10 Features
- Ten-inch Two-Way Passive speaker
- 325 Watts (650 Watts Peak / 250 Watts Continuous)
- 127dB Peak (124dB Continuous) Max SPL
- 65 - 20k (Hz +/- 3dB)
- Made in Canada
- EF10 10-Inch Passive Speaker1
- System Type Two Way
- Active or Passive Passive
- Power Rating (Watts) 325 Watts (650 Watts Peak / 250 Watts Continuous)
- Biampable No
- Nominal Impedance (Ohms 8
- Sensitivity (dB @1Watt/1m) 99
- Max SPL (dB) 127dB Peak (124dB Continuous)
- Frequency Response (Hz +/- 3dB) 65 - 20k
- Crossover Frequency (Hz) 2900
- Driver Configuration 10-inch / 1-inch
- HF Driver(s) 1-inch throat (1-inch Titanium Diaphragm)
- HF Horn ABS plastic custom Waveguide
- HF Dispersion (°H x °V) 100x30
- HF Protection 2xSK3 protection bulbs
- LF Driver(s) 10-inch (2-inch voicecoil)
- Inputs - 1/4" Jacks 2
- Inputs - Speakon 4-pin 2
- Bar Handles 1
- Flypoints 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side) + 1 Pullback (Back)
- Pole Mount Adapter (1 3/8"-3.5cm) Yes
- Enclosure Materials 15mm (5/8inch) 11-ply Russian Birch
- Grille Perforated Metal
- Covering / Finish Black Ultrathane Paint
- Dimensions (DWH xbackW, inches) 13 x 13.7 x 20 x 11.1
- Dimensions (DWH xbackW, cm) 33 x 34.8 x 50.8 x 28.2
- Weight (lbs/kg)42.5 / 19.4
