Elite-level performance now available in passive speakers. The EF12 from Yorkville is a 12-Inch Passive Speaker. Building on the market success and positive user reaction to the Elite powered cabinets, Yorkville Sound introduces three new elite passive speakers. Now available in 10, 12 and 15-inch configurations, the passive elites' provide the perfect solution for installations and venues with existing power amps.
Yorkville EF12 Features
- 12-inch Two-way Passive Loudspeaker
- 600 Watts (1200 Watts peak) v127dB Peak (124dB Continuous) Max SPL
- 55 - 18k (Hz +/- 3dB)
- Made In Canada
- EF12 12-Inch Passive Speaker1
- System Type Two Way
- Active or Passive Passive
- Power Rating (Watts) 600 Watts (1200 Watts Peak / 300 Watts Continuous)
- Biampable No
- Nominal Impedance (Ohms) 8
- Sensitivity (dB @1Watt/1m) 97
- Max SPL (dB) 128dB Peak (125dB Continuous)
- Frequency Response (Hz +/- 3dB) 55 - 18k
- Crossover Frequency (Hz) 1900
- Driver Configuration 12-inch, 3-inch Diaphragm
- HF Driver(s) 3-inch Voicecoil (Titanium Diaphragm)
- HF Horn ABS plastic custom Waveguide
- HF Dispersion (°H x °V) 60x40
- HF Protection 3xSK3 protection bulbs
- LF Driver(s) 12-inch (3-inch voicecoil)

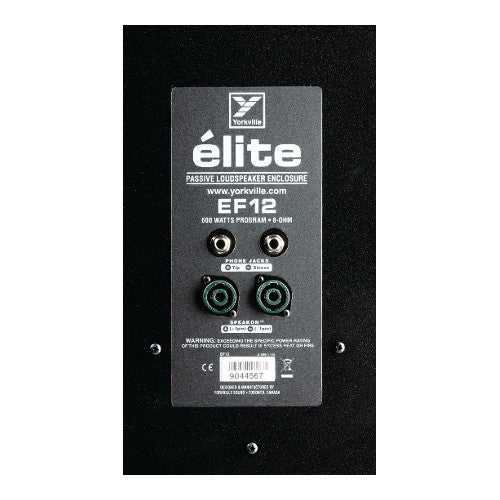

- Inputs - 1/4" Jacks 2
- Inputs - Speakon 4-pin 2
- Bar Handles 2
- Flypoints 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side, 2 Pullback)
- Pole Mount Adapter (1 3/8"-3.5cm) Yes
- Enclosure Materials 15mm (5/8inch) 11-ply Russian Birch
- Grille Perforated Metal
- Covering / Finish Black Ultrathane Paint
- Dimensions (DWH xbackW, inches) 14 x 16 x 25.5 x 9.5
- Dimensions (DWH xbackW, cm) 35.5 x 40.5 x 64.8 x 24
- Weight (lbs/kg) 51 / 23
