- Mic Preamp ConnectorXLR Floating balanced, Pin 2 Hot
- Mic Preamp Input Impedance~4.2kΩ
- Mic Preamp Gain0dB to +60dB
- Mic Preamp Phantom Power+48VDC, applied to XLR pins 2 and 3 through 6.81kΩ resistors
- CMRR>40dB, typically 55dB
- Mic Preamp Max Input Level0.2Vrms, Gain = 30dB
- Mic Preamp EIN-125dBu, 22Hz-22kHz, 150Ω source impedance
- Input Connectors(line) Floating balanced, TIP Hot
- Input Impedance(line) 10kΩ unbalanced, 20kΩ balanced
- Max Input(line) >+21dBu, balanced or unbalanced
- Input Gain Range(line) -15dB to +45 dB

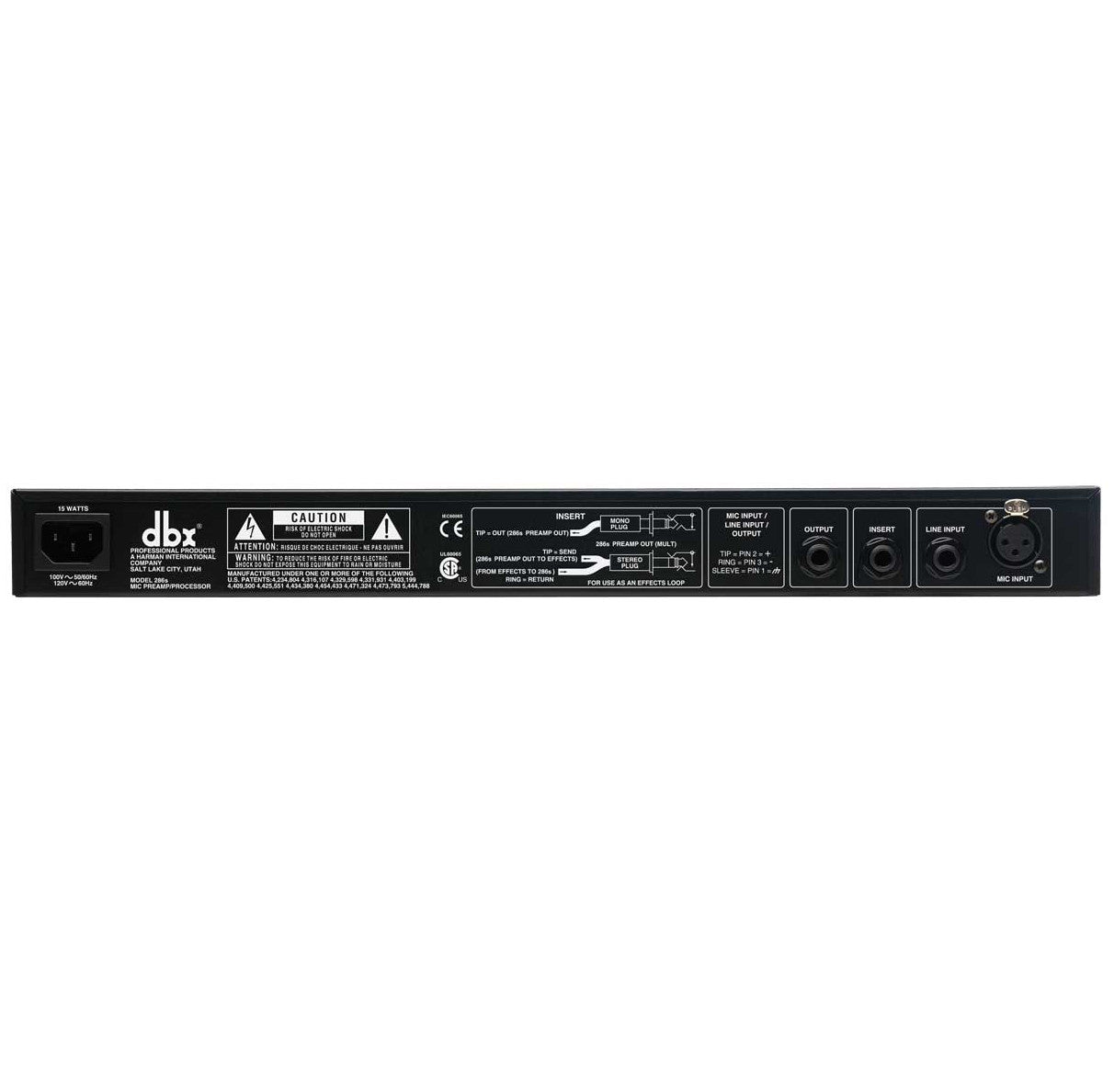

- Insert Connector1/4" TRS: Normalled; tip is Send, ring is Return
- Insert Impedance>5kΩ (ring-return); 100Ω (tip-send)
- Insert Max Level>+21dBu; >+20dBm (600Ω load-tip)
- Insert Noise<-84dBu, unweighted (20Hz-20kHz); LINE GAIN Control set to 0dB
- Insert Distortion<0.01% THD, 20Hz-20kHz, +10dBu
- Output Connectors1/4" Balanced/Unbalanced TRS Connectors
- Output Impedance100Ω unbalanced, 200Ω balanced
- Max Output>+21dBu, >+20dBm (600Ω load)
- Gain Adjustment Range-30dB to +10dB
- Noise<-80dBu unweighted (20Hz-20kHz); Both Gain Controls set for 0dB, all processing controls OFF
- Frequency Response20Hz to 20kHz, +0.5, -0.5dB
- THD<0.08%THD, 20Hz-20kHz, +10dBu, all Processing Controls OFF
- Compressor Threshold Range-40dBu to +20dBu
- Compressor Threshold CharacteristicOverEasy®
- Compressor Ratio>4:1 For input levels beyond 20dB above threshold
- Max Compression30 dB
- Compressor Attack TimeProgram-Dependent; >1s for small level increases, down to 10ms for larage increases
- Compressor Release TimeProgram-Dependent; adjustable between approximately 1dB/sec and 75dB/sec
- Compressor DistortionTypically <0.05%THD, 20Hz-20kHz, 15dB G/R, +10dBu Output, DENSITY @ 0
- IMDSMPTE: <0.05%; 60Hz/7kHz 4:1, 15dB G/R, +10dBu Output Level, DENSITY @ 0
- De-esser CharacteristicWideband Gain Reduction
- De-esser Frequency Range800Hz to 10kHz High Pass, 12dB/octave
- De-esser Release Time12dB/octave Program-Dependent; approximately 1mS/dB
- Enhancer HF Detail CharacteristicProgram-controlled shelving equalizer, approximately 15dB maximum HF boost
- Enhancer LF Detail CharacteristicBell-shaped boost @ 80Hz, bell-shaped cut @250Hz, ratio is approximately 2:1
- Expander/Gate Threshold RangeOFF to +15dBu
- Expander/Gate RatioAdjustable 1.5:1 to 10:1
- Expander/Gate Max Depth>50dB
- Expander/Gate Attack TimeProgram-Dependent, approximately 2mS (at maximum attenuation)
- Expander/Gate Release TimeProgram-Dependent, approxiamtely 10mS/dB
- Expander/Gate Dynamic RangeTypically 105dB
- Power Consumption15 W
- Operating VoltageDO: 120VAC 60Hz, 100VAC 50/60Hz; EU: 230VAC 50/60Hz
- Operating Temperature32°F to 113°F (0°C to 45°C)
- Dimensions1.75" x 5.75" x 19"
- Weight4.5 pounds
