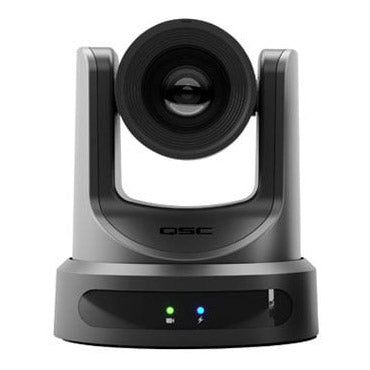

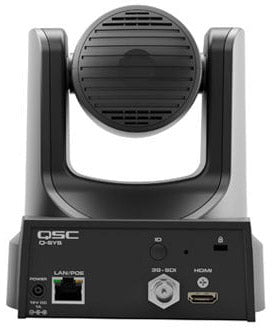

Q-SYS NC-12x80 PTZ Conference Camera with Optical Zoom

Q-SYS NC-12x80 PTZ Conference Camera with Optical Zoom

SoundPro Item: 129738 | Part Number: NC-12x80

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 12x optical zoom, 80° horizontal field of view
  • Distribute video via the Q-LAN network anywhere it is needed
  • Power over Ethernet (PoE)
  • Complete camera imaging controls, including white balance, focus and exposure
  • User-configurable resolution and quality for IP streams (up to 1080p), providing greater flexibility for a wide variety of use cases
  • Image Rotation control to allow for inverted mounting (optional ceiling mount accessory is the PTZ-CMB1)
  • Local 12 V connection for PTZ models (power supply not included)
  • PTZ models include PTZ-WMB1 wall mount bracket for simple installation
  • Comprehensive management via Q-SYS Designer Software and Q-SYS Reflect Enterprise Manager
  • Auto-Framing, when enabled, tightly frames the faces found within the camera's actual field of view.
Log in or register for YOUR best price

The Q-SYS NC Series PTZ conference cameras deliver high-quality video feeds natively to the Q-SYS Platform. The Q-SYS NC-12x80 offers motorized pan, tilt, and zoom (PTZ) functionality to enable a more broad range of room layouts, sizes and purpose. Joined by the NC-110 ePTZ model, the entire NC Series offers simple and scalable video solutions for any size meeting space.

Driven by the Q-SYS OS, the NC Series integrate seamlessly into any Q-SYS system, allowing for easy camera feed routing anywhere on the network without the need for complicated programming or video matrix hardware. These camera video feeds can be delivered to any modern video conferencing applications such as Microsoft Teams, Zoom, Google Meet and Cisco Webex via any Q-SYS AV bridging peripheral.

View full details

Specifications

Connectivity
HDMI 2.0 Output
4K @ 25, 29.97, 30 fps1080p @ 25, 29.97, 30, 50, 59.94, 60 fps1080i @ 50, 59.94, 60 fps720p @ 30, 50, 59.94, 60 fps
Construction
Lens Characteristics (wide to tele)
12x optical zoom, f=3.47 mm to 41.65 mm, F1.84 to F3.72
General
Specifications
NC-12x80
Description
Network camera with motorized PTZ, 12x optical zoom and 80° field-of view
Image Sensor
1/2.8" Low Noise CMOS
Sensor Scanning Mode
Progressive
Horizontal Rotation Range
±170°
Vertical Rotation Range
-30° to +90°
Pan Speed Range
1.7° to 100°/s
Tilt Speed Range
1.7° to 69.9°/s
Ceiling Mountable
Image rotation for ceiling mounting, ceiling mount bracket accessory PTZ-CMB1 sold separately
Minimum Illumination
0.5 Lux @ (F1.8, AGC ON)
Shutter
1/30 s to 1/1000 s
White Balance
Auto, indoor, outdoor, one-push, manual, specified color temperature
IP Stream Resolutions (Preview Window)
H.264 @ 360p, 270p or 180p
