Specifications
Dimensions
Speaker Dimensions (HxWxD)
23.7 x 14 x 13.8 in
Weight
Net Weight
39 lb
Audio
Frequency Response
50 Hz - 20 kHz (-6 dB)
Maximum Rated SPL
132 dB @ 1m, peak 126 dB @ 1m, continuous
Connectivity

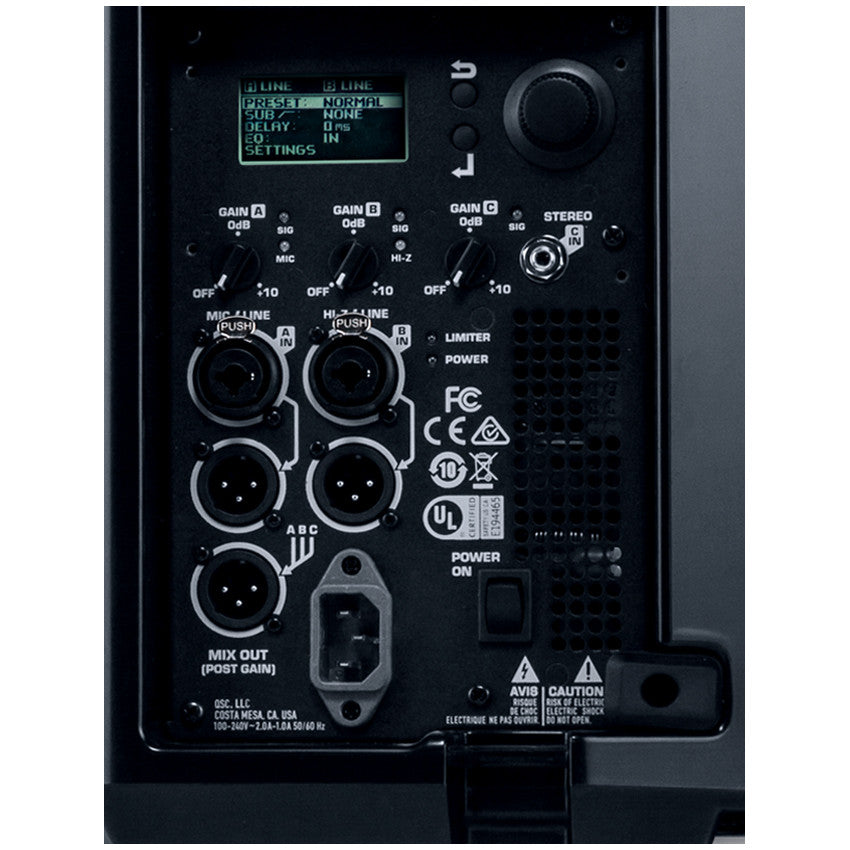

Connectors
2 x locking XLR/F 1/4" combo (Mic/Line Input and Hi-Z/Line Input), 1 x 3.5 mm TRS (Stereo Input), 2 x XLR/M (Loop-thru Output), 1 x XLR/M (Mix Output), 1 x locking IEC power connector
AC Power Input
Universal power supply 100 - 240 VAC, 50 - 60 Hz
Construction
Enclosure Material
Impact Resistant ABS
General
LF Transducer
305 mm (12-Inch), cone
HF Transducer
35.6 mm (1.4-Inch) titanium diaphragm compression driver
Nominal Coverage Angle
75° Axisymetric
Amplifier Power Capacity
Peak: 1800 W (LF), 225 W (HF) (Class D)

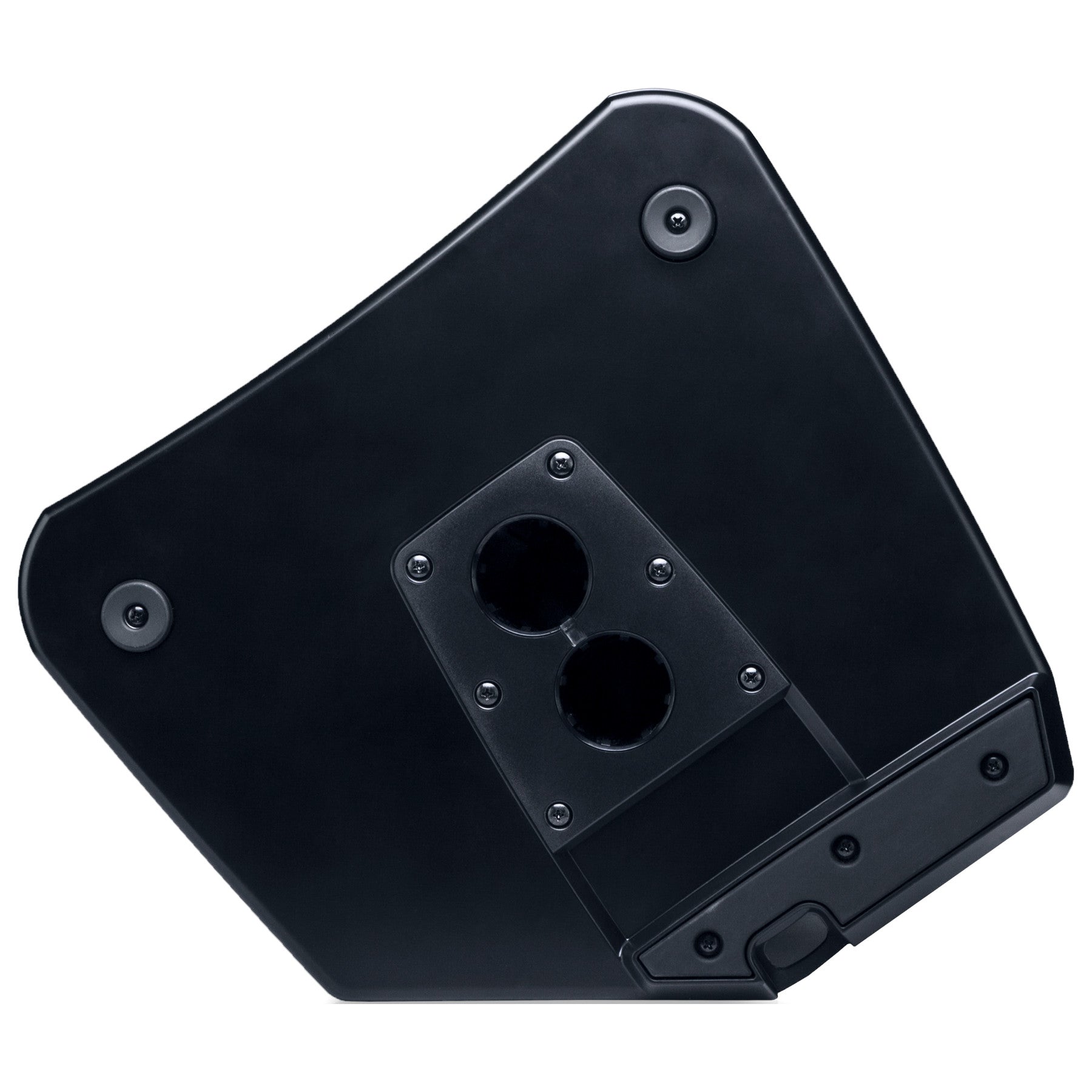

Mounting Options
2 x M10 threaded inserts plus Pull-Back
RF
Frequency Range
45 Hz - 20 kHz (-10 dB)
