• Radial DiNET DAN-TX2 2 Channel Dante Network Transmitter
1 1

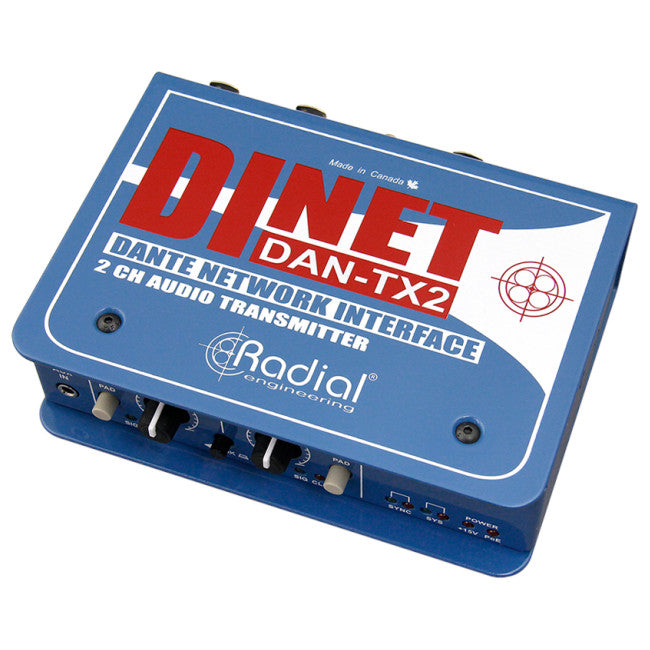

Radial DiNET DAN-TX2 2 Channel Dante Network Transmitter

Radial DiNET DAN-TX2 2 Channel Dante Network Transmitter

SoundPro Item: 39140 | Part Number: R800 1064

$579.99
$696.00 $579.99
Your Price Sold out
MSRP: $696.00 | MAP: $579.99

Usually ships in 5-7 business days

  • Connect any line level source to a Dante network
  • XLR, 1/4" TRS, RCA and 3.5mm input jacks
  • 24bit/96kHz analog to digital conversion
  • Handles signal levels up to +24dBu
  • Compliant to AES67 specifications
Log in or register for YOUR best price

The DiNET DAN-TX2 makes it easy to transmit two channels of high quality analog audio over a Dante or AES67-compliant network. Multiple input options are provided, with Balanced XLR/TRS connectors for professional audio sources, RCA jacks for line level consumer devices, and a 3.5mm aux input for connection to laptops, smartphones, and tablets. Trim controls and pad switches are included for each channel, with a link switch to simplify control for stereo sources. The RJ45 network connection is compatible with Neutrik etherCON connector carriers to prevent accidental disconnection and protect cable terminations, and redundant powering is available for critical applications by using the included external power supply and Power over Ethernet (PoE) simultaneously. The DAN-TX2 can be mounted in 19" equipment racks with the optional SA series rackmount adaptor kit.

View full details

Specifications

Certifications
FCC Approval
Meets FCC Part 15B Class A
Warranty
Radial 3-year, transferable
Dimensions
Bit Depth
24 bit
Dimensions (LxWxD)
4.5x2x6” (121x6x147mm)
Electrical
Balanced Input Impedance
40kOhm
Unbalanced Input Impedance
20kOhm
Power Consumption
1.25W
Audio
Audio Circuit Type
High current balanced active input device
Sample Rate
44.1kHz, 48kHz, 88.2kHz, and 96kHz
Frequency Response
20Hz-20kHz
Output Connectors
RJ45 Ethernet with locking etherCON
Connectivity
Maximum Input
+28dBu
Equivalent Input Noise
-98dB
Input Connectors
2x XLR/TRS combo, 3.5mmTRS, 2x RCA
Construction
Construction
14-gauge steel
Finish
Durable powder coat
Controls
LED Indicators
SYNC, SYS, +15V, and PoE
General
Idle Channel Noise
-108dB
Dynamic Range
>103dB
Channel Separation
>85dB
Total Harmonic Distortion + Noise
0.008% @ -6dBfs
IMD
0.0017% -10dBfs
Pad
-18dB
Power Over Ethernet (PoE)
Class 1 IEEE 802.3af
RF
Number of Channels
2
Power
Power
15VDC 400mA (included) or PoE
