RF Venue DFIN-IPXDISTRO4 Diversity Fin IPX with DISTRO4 System | Color: Black

RF Venue DFIN-IPXDISTRO4 Diversity Fin IPX with DISTRO4 System | Color: Black

SoundPro Item: 203360 | Part Number: DFIN-IPXDISTRO4

$1,619.00
$1,619.00 $1,619.00
Your Price Sold out
MSRP: $1,619.00 | MAP: $1,619.00

In stock and ready to ship

  • Includes DISTRO4 antenna distribution system
  • Hybrid LPDA and dipole antenna design
  • Captures both vertical and horizontal polarization
  • Reduces multipath interference and dropouts
  • Replaces two traditional directional antennas
  • Compatible with any brand wireless microphone system
  • Improves RF and audio performance in difficult environments
  • Compact, portable, and easy to deploy
  • Works with antenna distribution systems for multi-channel setups
  • Distributes RF and DC power to multiple receivers
  • Cascade capability for expanded systems
Log in or register for YOUR best price

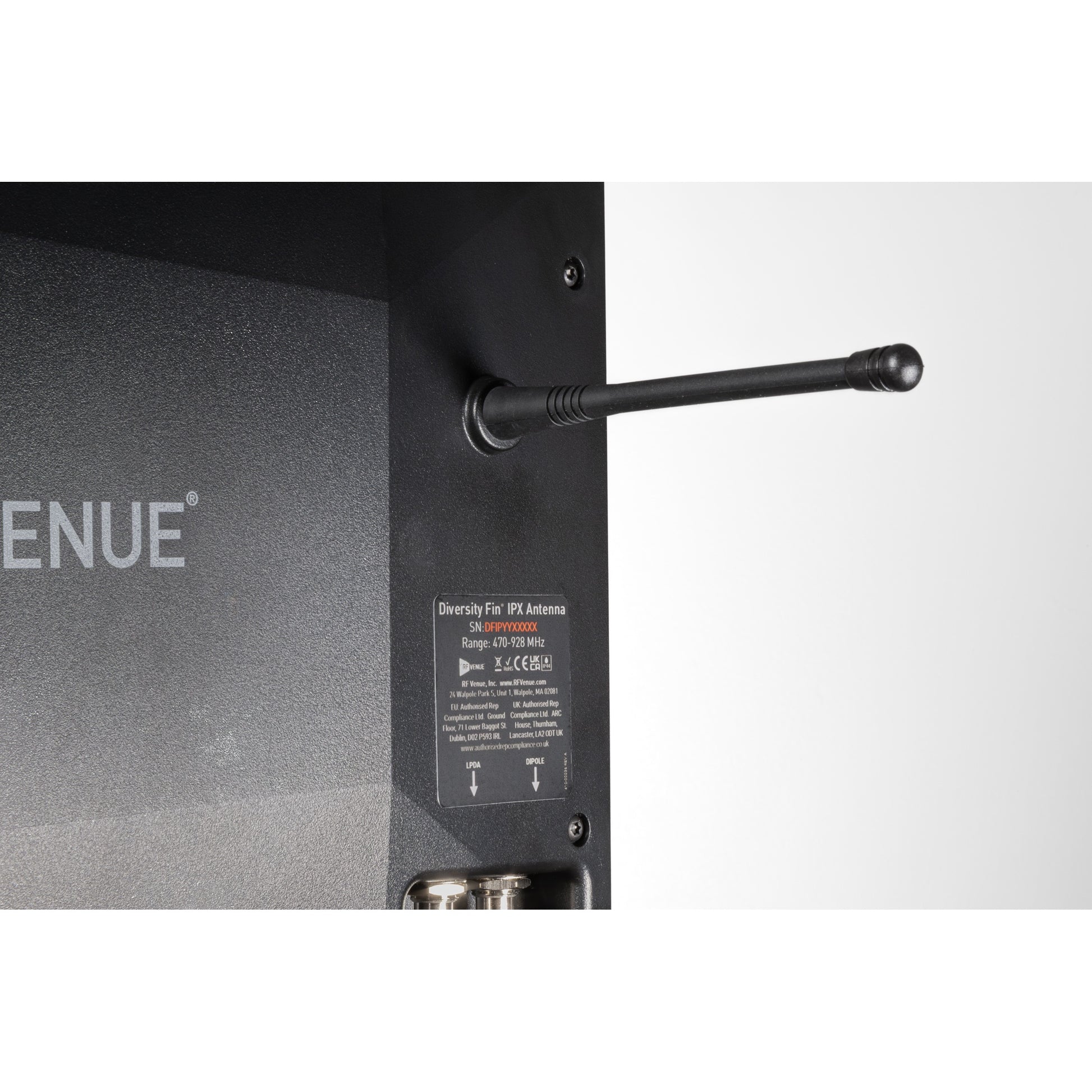

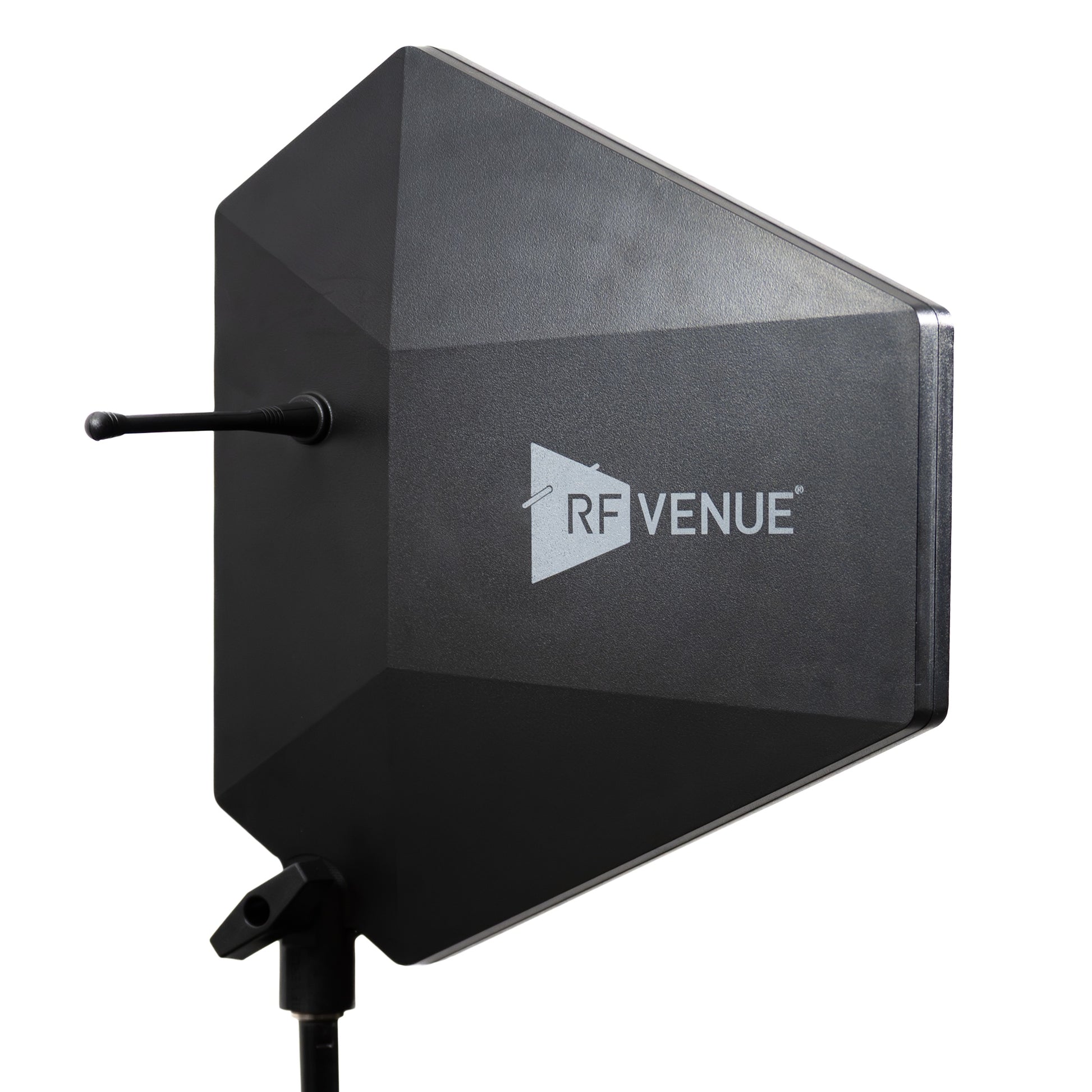

The RF Venue Diversity Fin IPX is a multi-purpose antenna designed for wireless microphone systems and other UHF receivers using diversity reception. It combines a directional log-periodic dipole array (LPDA) with a bidirectional dipole element to reduce multipath interference and improve signal reliability.

The antenna captures both vertically and horizontally polarized RF signals, delivering consistent performance in reflective indoor environments and challenging RF conditions. Its compact, integrated design replaces two traditional paddle antennas while saving space and setup time.

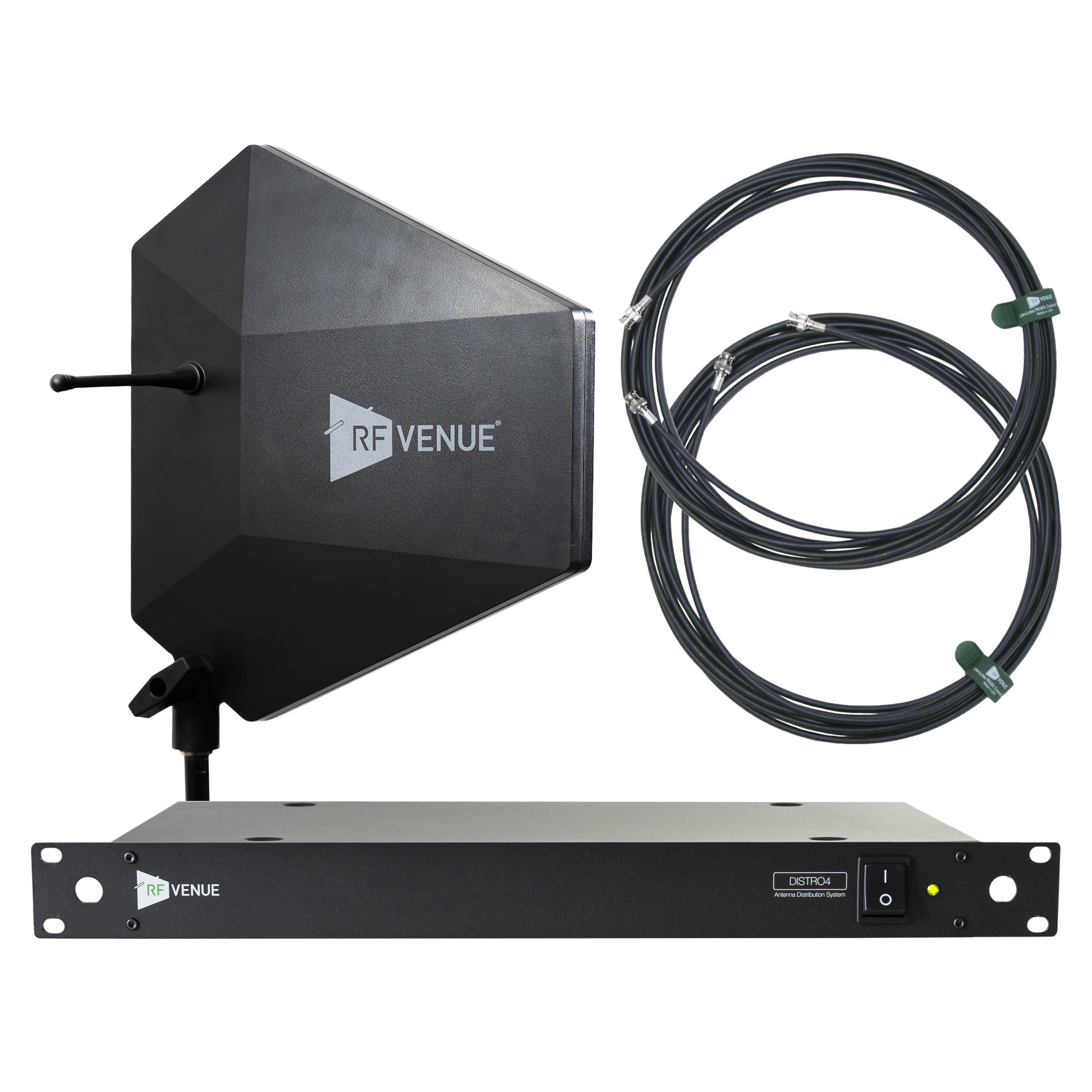

The 4 Channel Wireless Microphone Upgrade Pack with Diversity Fin® IPX Antenna combines the rugged, IP-rated weather-resistant Diversity Fin IPX Antenna with the high-performance DISTRO4 Antenna Distribution System and premium RG8X cabling.

View full details

Specifications

Operating Frequency
470–698 MHz
Bandwidth
228 MHz
Impedance
50 Ω
Average Return Loss
-9.4 dB
Gain
LPDA 5 dBd / Dipole 1.8 dBd
Beamwidth
LPDA 140° / Dipole 100°

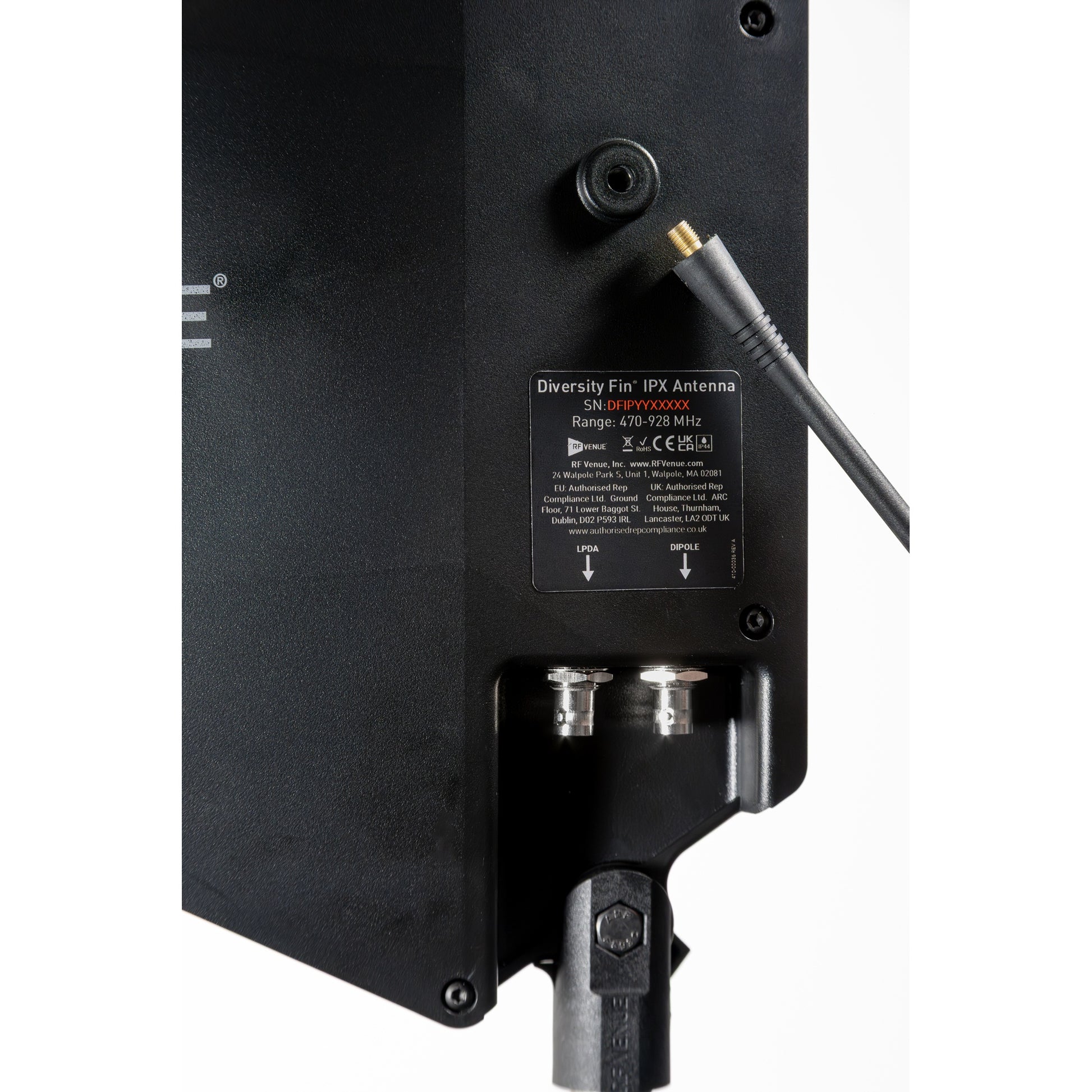

Connector
2 × BNC (dual outputs)
Dimensions
300 mm × 370 mm
Weight
454 g
Mounting Threads
1/4"-20, 3/8"-16, 5/8"-27
Operating Temperature
-23°C to 54°C
Included
Diversity Fin IPX antenna; DISTRO4 4-channel antenna distribution system; (10) BNC RF jumper cables; (4) DC power jumper cables; (1) AC power cable; (2) 25 ft RG8X low-loss coaxial cables
