Specifications
Construction
Housing
Molded ABS

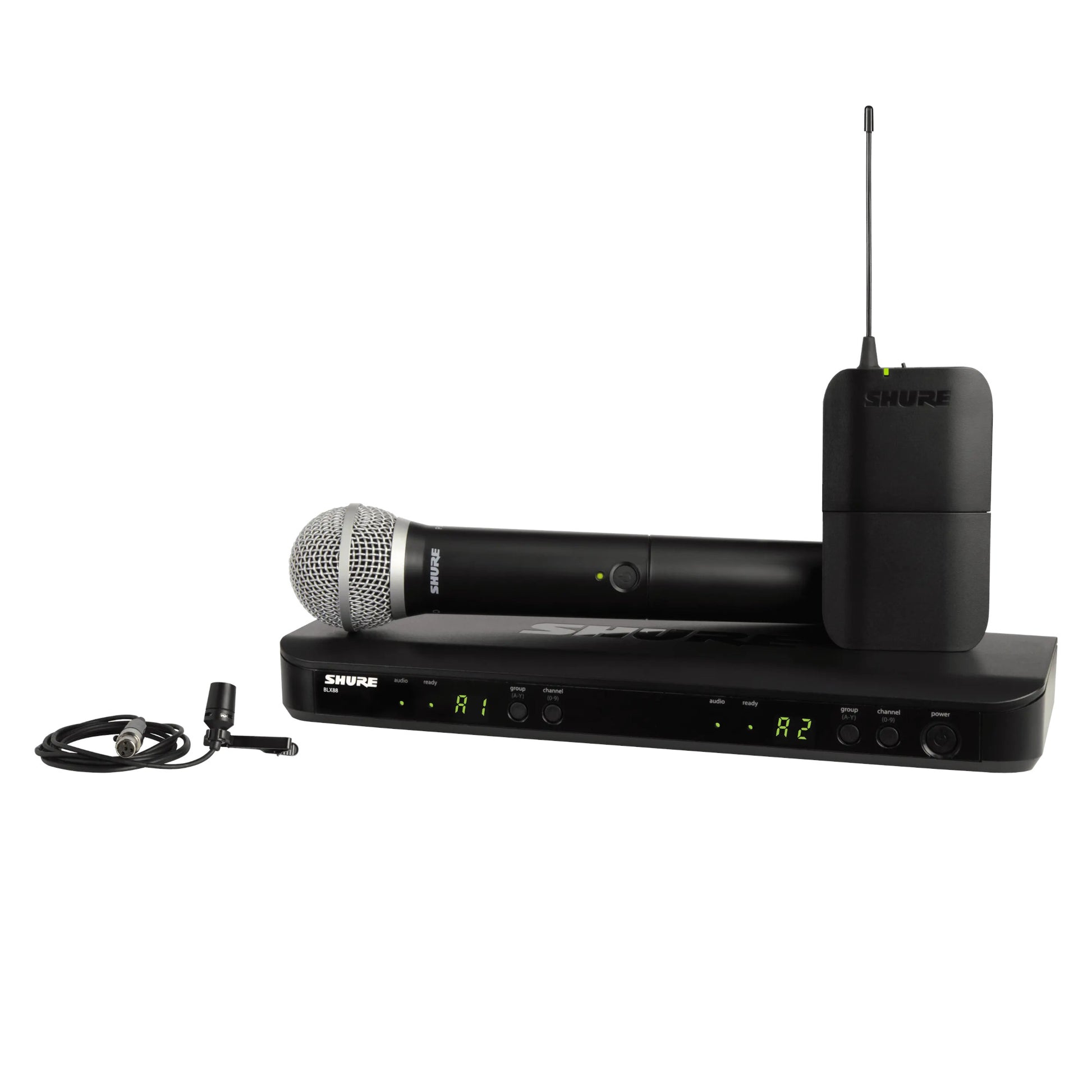

Included Items

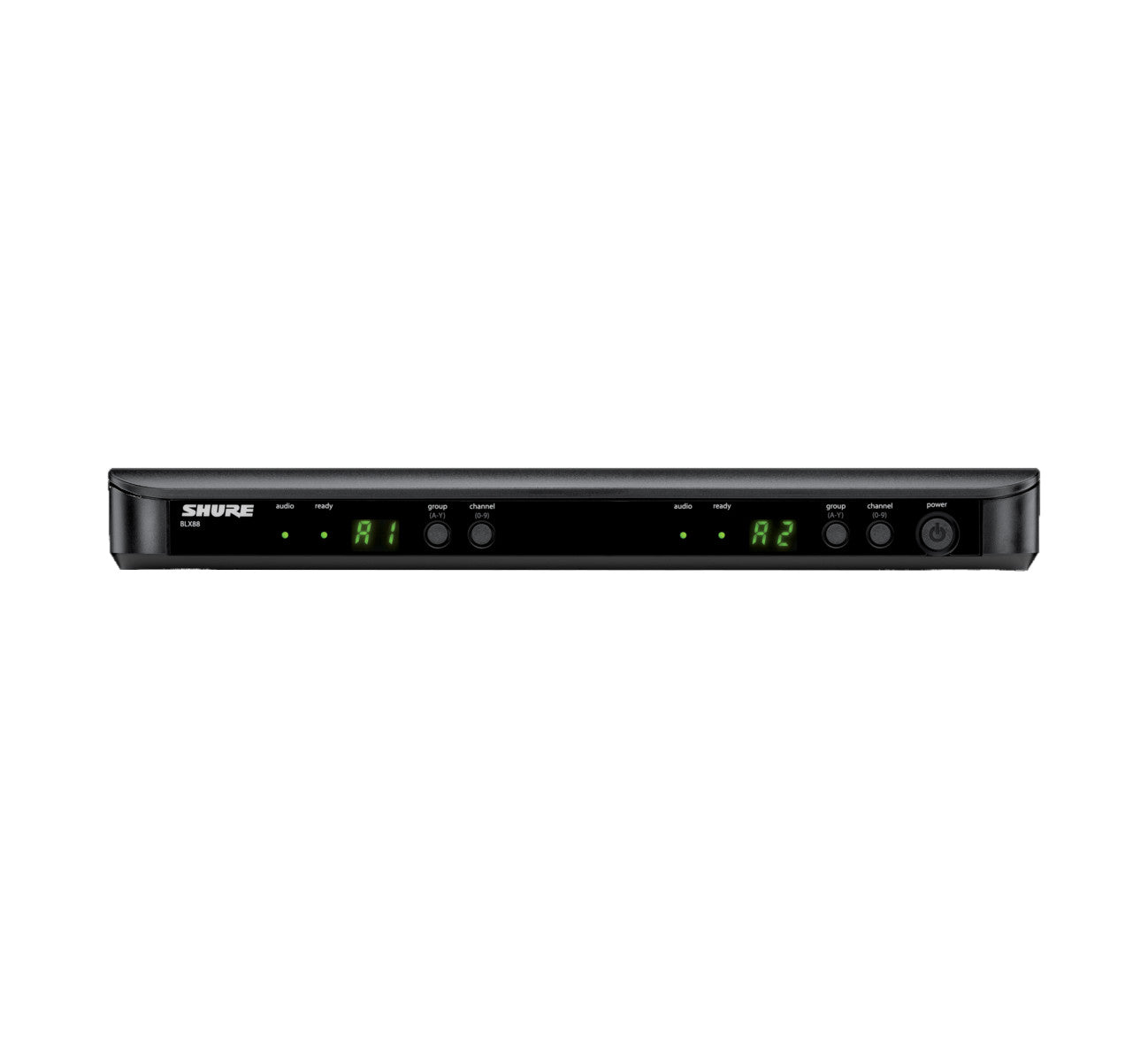

BLX88 Dual-Channel Receiver
1x

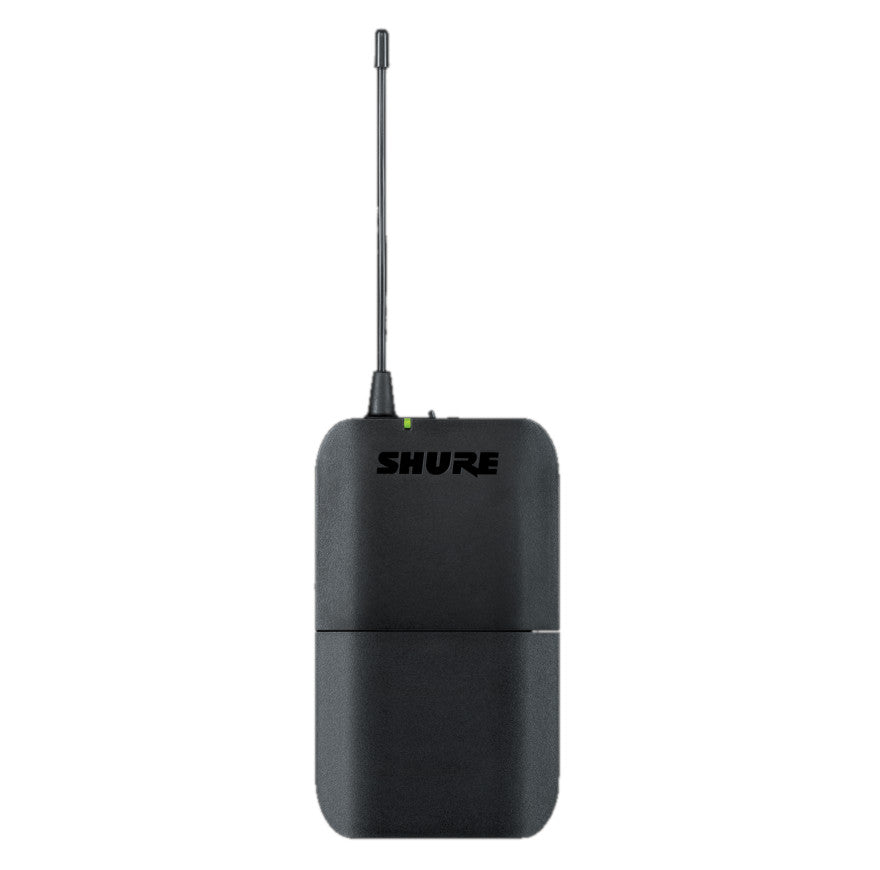

BLX1 Bodypack Transmitter
1x

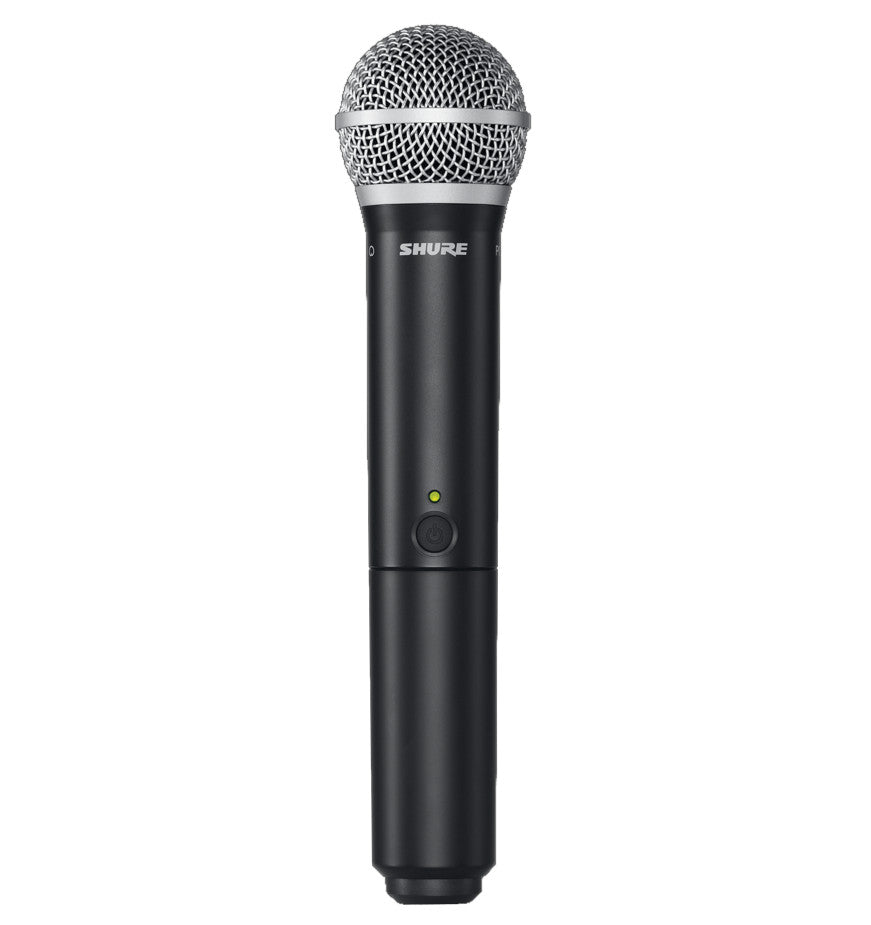

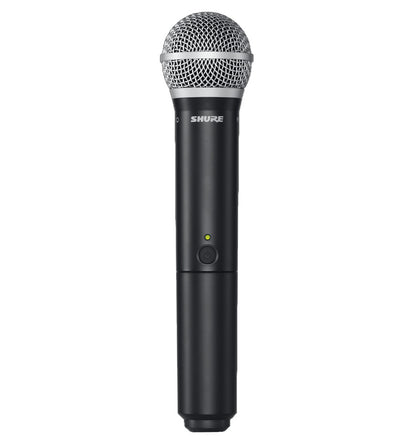

BLX2/PG58 Handheld Transmitter
1x

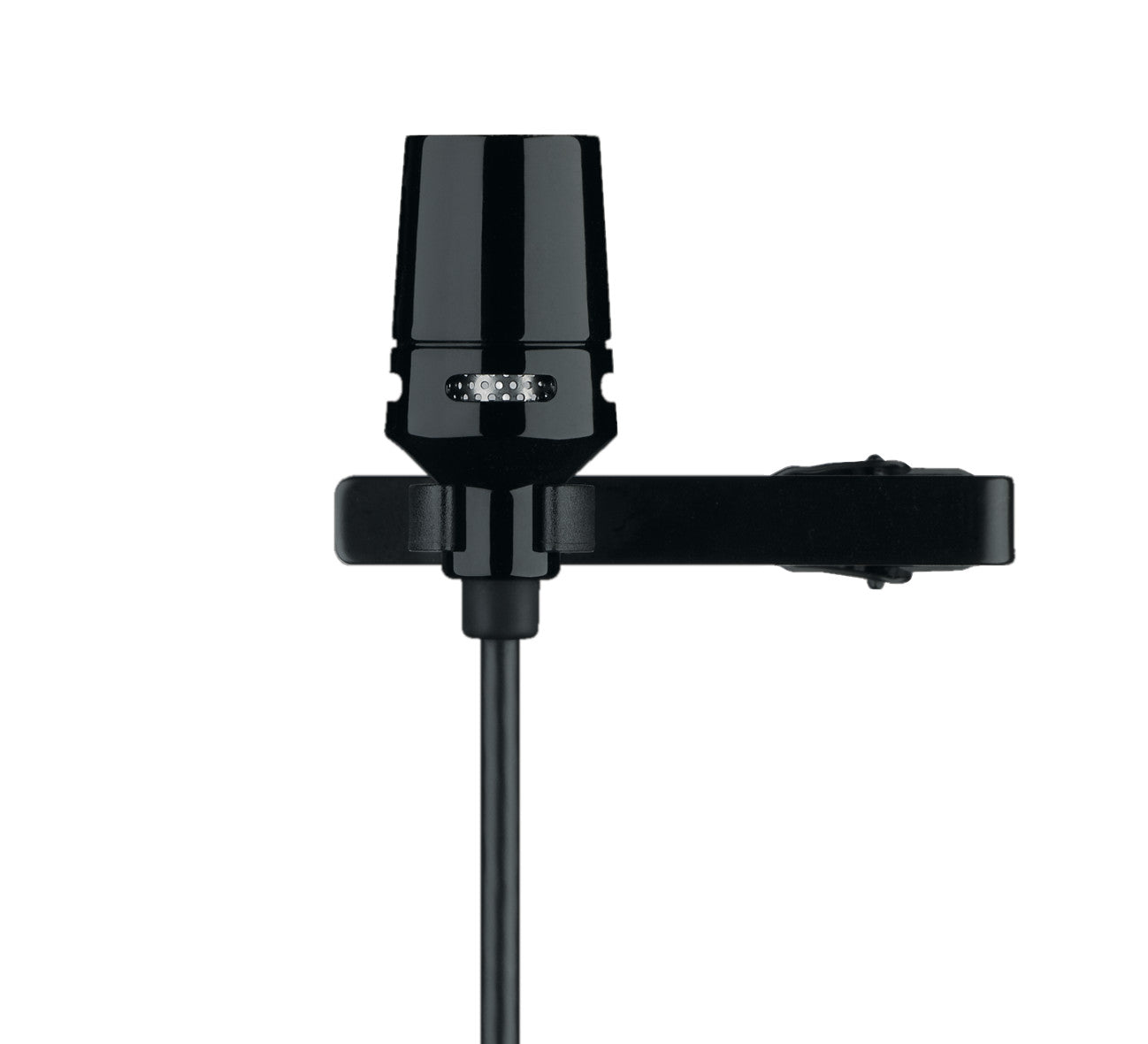

CVL Lavalier Microphone
1x
WA371 Swivel Adapter
1x
PS24 Power Supply
1x
31B1856 Thread Adapter
1x
Windscreen
1x
Lavalier Clip
1x
Shipping
Weight
2.6 oz. (75 g), without batteries
General
System
Working Range: 91 m (300 ft) Line of Sight, Audio Frequency Response: 50 to 15,000 Hz, Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone : 0.5%, typical, Dynamic Range: 100 dB, A-weighted, typical, Operating Temperature: -18°C (0°F) to 57°C (135°F), Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

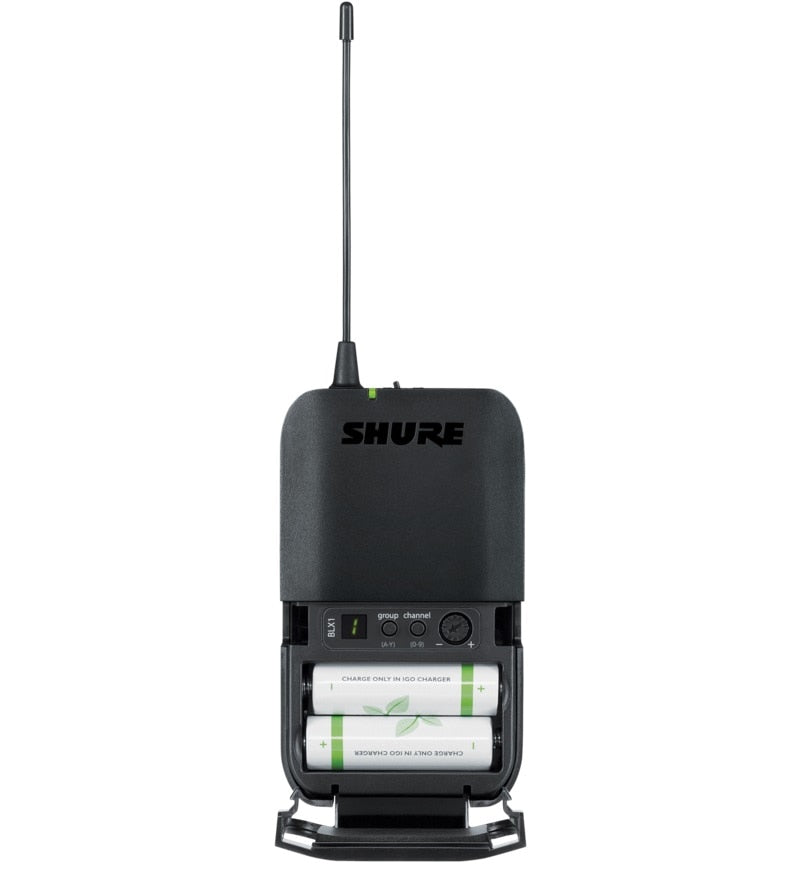

BLX1 Transmitter
Audio Input Level, max: -16 dBVmaximum, min (0 dB): +10 dBVmaximum, Gain Adjustment Range: 26 dB, Input Impedance: 1 MΩ, RF Transmitter Output: 10 mW, typical, Dimensions: 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D, Weight: 2.6 oz. (75 g), without batteries, Housing: Molded ABS, Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline, Battery Life: up to 14 hours (alkaline)
BLX2 Transmitter
Audio Input Level, 0dB: -20 dBVmaximum, Gain Adjustment Range: 10 dB, RF Transmitter Output: 10 mW, typical, Dimensions: 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia., Weight: 7.7 oz. (218 g) without batteries, Housing: Molded ABS, Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline, Battery Life: up to 14 hours (alkaline)

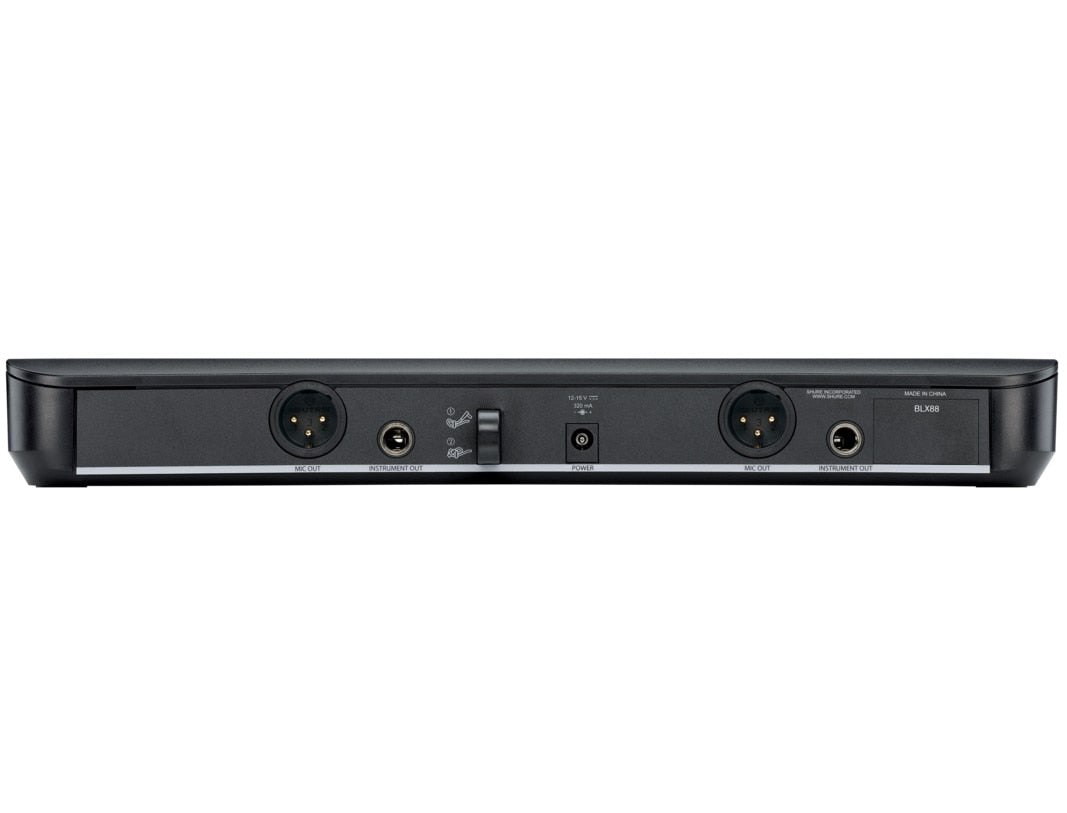

BLX88 Receiver
Output Impedance, XLR connector: 200 Ω, 6.35 mm (1/4") connector: 50 Ω, Audio Output Level (Ref. ±33 kHz deviation with 1 kHz tone), XLR connector: –27 dBV (into 100 kΩ load), 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load), RF Sensitivity: -105 dBm for 12 dB SINAD, typical, Image Rejection: >50 dB, typical, Dimensions:1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D, Weight:15.1 oz. (429 g), Housing: Molded ABS, Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
