Specifications
Dimensions
Dimensions
8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
Electrical
Power Requirements
2 LR6 AA batteries, 1.5 V, alkaline
Audio
Audio Frequency Response
50 to 15,000 Hz
Gain Adjustment Range
10 dB
RF Sensitivity
-105 dBm for 12 dB SINAD, typical
Connectivity
RF Transmitter Output
10 mW, typical
Construction
Housing
Molded ABS
Environmental
Operating Temperature
-18°C (0°F) to 57°C (135°F)
Shipping
Weight
7.7 oz. (218 g) without batteries
General
Working Range
91 m (300 ft) Line of Sight
System
Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone: 0.5%, typical
Dynamic Range
100 dB, A-weighted, typical
Polarity
Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
BLX2 Transmitter
Audio Input Level

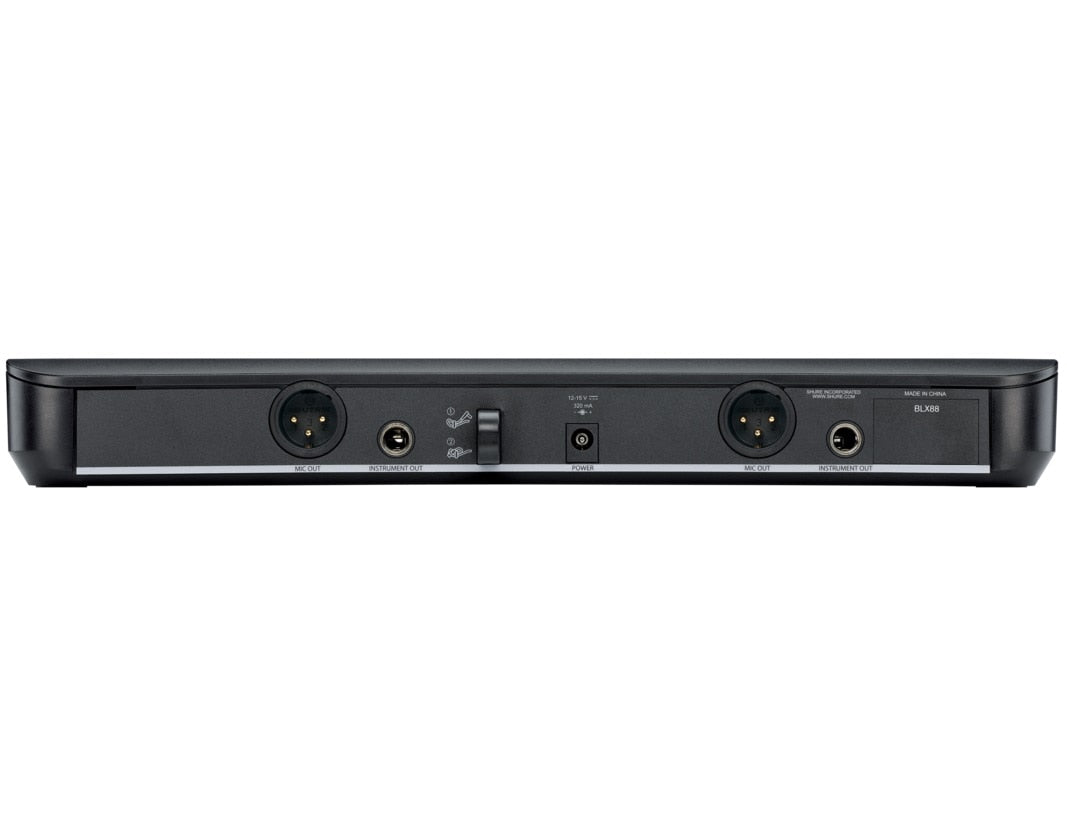

BLX88 Receiver
Output Impedance, Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone XLR connector: –27 dBV (into 100 kΩ load)6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
Image Rejection
>50 dB, typical
Power
Battery Life
up to 14 hours (alkaline)
