• Yamaha TF3 24-Channel Digital Mixing Console
1 1

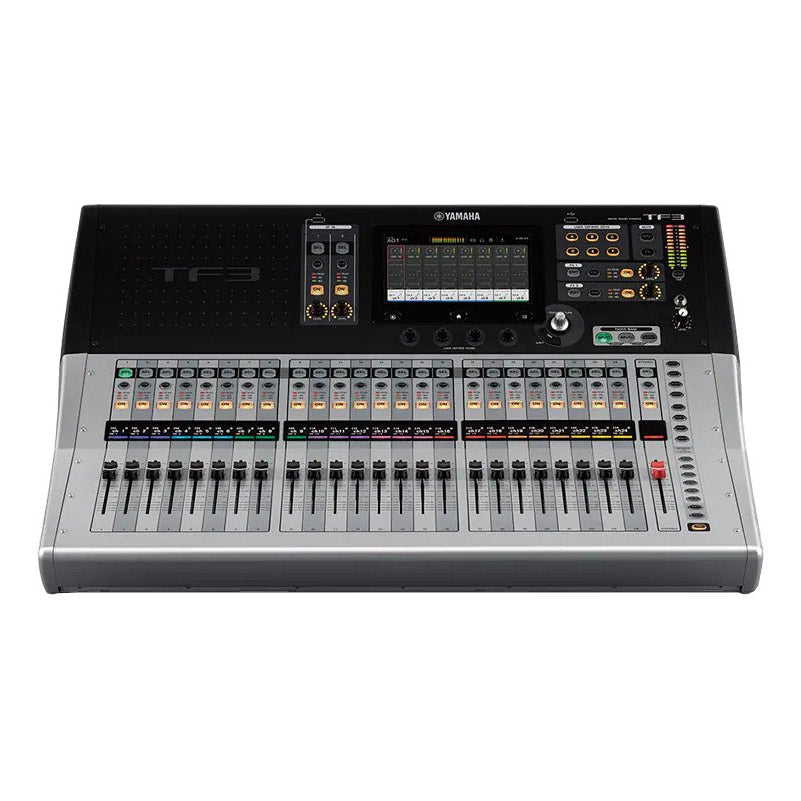

Yamaha TF3 24-Channel Digital Mixing Console

Yamaha TF3 24-Channel Digital Mixing Console

SoundPro Item: 26882 | Part Number: TF3-CA

$3,099.99
$3,626.00 $3,099.99
Your Price Sold out
MSRP: $3,626.00 | MAP: $3,099.99

In stock and ready to ship

  • 25 motor faders (24 channels + 1 master)
  • 8 DCA groups with Roll-out
  • 24 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
  • 16 analog XLR outputs
  • 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
  • 1 expansion slot for NY64-D audio interface card
  • Touch operation for intimate control
  • 1-knob COMP™ and 1-knob EQ™
  • GainFinder™ supports precision gain setup
  • QuickPro Presets™ provide instant access to pro sound setups
  • Two scene memory banks
  • Compatible with many apps including dedicated apps TF Editor, TF StageMix and MonitorMix
  • Natural sound foundation with extra creative freedom
  • Recallable D-PRE™ mic preamps
  • 8 powerful processing/effect units
Log in or register for YOUR best price

Great for a wide range of applications, the TF3 24-Channel Digital Mixing Console from Yamaha offers sizable input capacity and hands-on control. It features 25 motor faders, 48 input mixing channels, and a large suite of inputs and outputs—all in a compact build that’s easy to incorporate into your sound setup.

View full details
  • Mixing capacity
    • Input channels: 48 (40 mono + 2 stereo + 2 return)
    • Aux buses: 20 (8 mono + 6 stereo)
    • Stereo buses: 1
    • Sub buses: 1
  • Fader configuration24 + 1 (Master)
  • Input channel functions8 DCA groups
  • I/O
    • Inputs: 24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
    • Outputs: 16 (XLR)
    • Expansion slots: 1
  • On-board DSP8 Effects + 10 GEQ
  • USB34x34 USB Audio Interface, 2-track recording via USB Storage Device
  • Internal sampling frequency rate48kHZ
  • Signal delayless than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
  • Fader100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
  • THDless than 0.05%
  • Frequency response20Hz - 20kHz (+0.5dB, -1.5dB)
  • Dynamic range110dB typical
  • Equivalent input noise-128dBu typical
  • Residual output noise-85dBu
  • Crosstalk-100dB
  • Power requirements100-240V 50/60Hz
  • Power consumption110W
  • Dimensions (WxHxD)28.2x8.9x23.6"
  • Weight37.5 lbs (17 kg)
