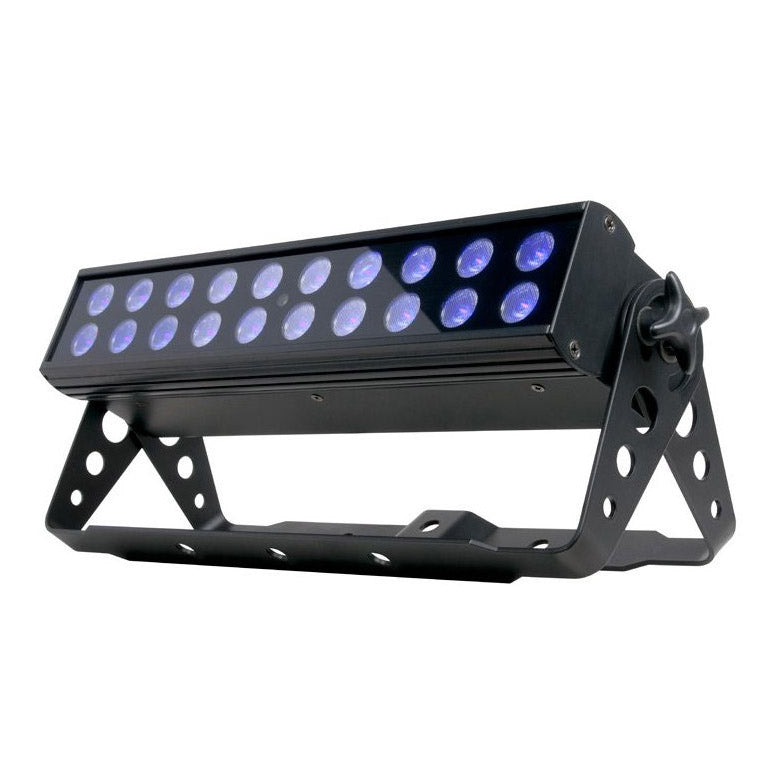

The UV LED BAR20 IR is a high output ultraviolet LED backlight that comes with the UC IR wireless remote for easy control of On/Off and strobe speed. It’s powered by 20x 1-Watt UV LEDs with a maximum power draw of only 30W. The beam angle of 10-degrees x 40-degrees. With a LED life of approximately 50,000 hours, the UV LE 20 IR is a nearly maintenance free solution for washing stages, nightclubs, Bowling Center, Roller Rinks and Fun Centers with ultraviolet light.
Control the fixture from the built-in 3-button LCD menu, DMX control, from the UC IR wireless remote or the Airstream IR APP.
ADJ UV LED BAR20 IR Features
- High output ultraviolet LED backlight
- Low power consumption, low heat
- Flicker free
- Linkable via 3-pin XLR cable
- 3-button LED DMX display on rear panel
- Can be daisy chained
- Scissor yoke allows fixture to be hung or set on the ground
- UC IR wireless remote ensures easy control over power and strobe speed
- Airstream IR APP compatible with iOS device
- Ideal for stage washes, nightclubs, bowling alleys, roller rinks and more
- UV LED BAR20 IR ultraviolet LED black light1
- UC IR wireless remote control1
- Light Source20x 1 watt UV LEDs
- LED Lifetimeapproximately 50,000 hours
- Operational Modes
- Sound Active
- DMX-512
- Primary/Secondary
- Manual
- 3 DMX Channel Modes1/2/3
- Electronic Dimming0-100%
- Refresh Rate1kHz
- Beam Angle10 degrees vertical x 40 degrees horizontal linear beam angle - great for wall washing
- Daisy Chain10 fixtures @ 120V; 20 fixtures at 230V
- Power Draw30W
- Wavelength390-410 nanometers
- Multi-Voltage OperationAC 100-240V, 47/63Hz
- Weight5 pounds
- Dimensions (LxWxH)13.25" x 2.5" x 7"
