Blustream ARC11 Audio Return Break Out

The Blustream ARC11 Audio Return Break Out ARC11 has been designed to extract audio from the HDMI ARC (Audio Return Channel) of a display. Featuring both an analog audio, and optical audio output, it can extract the embedded ARC audio information for use within a multi room audio distribution system.

Blustream ARC11 Features

• Extracts audio from the Audio Return Channel of a HDMI signal
• Features analog audio breakout of 2ch PCM audio signals, where source audio is 2ch PCM
• Features optical audio breakout of multi-channel and 2ch audio formats
• Supports the following embedded audio formats: Dolby Digital 5.1, Dolby Digital 2.0, DTS-ES 6.1, DTS 5.1, DTS 2.0, PCM 2.0

• ARC11 Audio Return Break Out1
• 5V/1A DC USB Power Supply1
• Mounting Kit 1
• Quick Reference Guide1

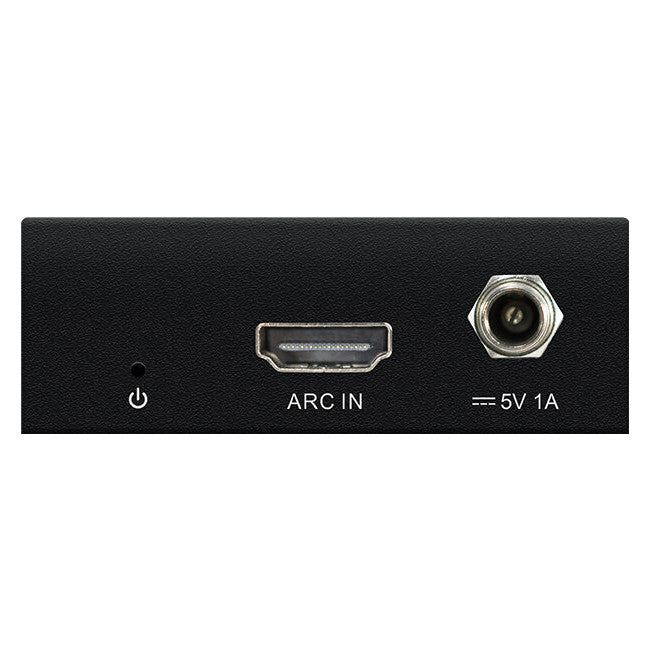

• Audio Input Connectors1 x HDMI Type A, 19-pin, female
• Audio Output Connectors2 x RCA analog Left / Right, 1 x TOSLINK optical output
• Dimensions (W x H x D)70mm x 73mm x 25mm
• Shipping Weight0.4kg
• Operating Temperature32°F to 104°F (0°C to 40°C)
• Storage Temperature-4°F to 140°F (-20°C to 60°C)
• Power Supply5V/1A DC USB
