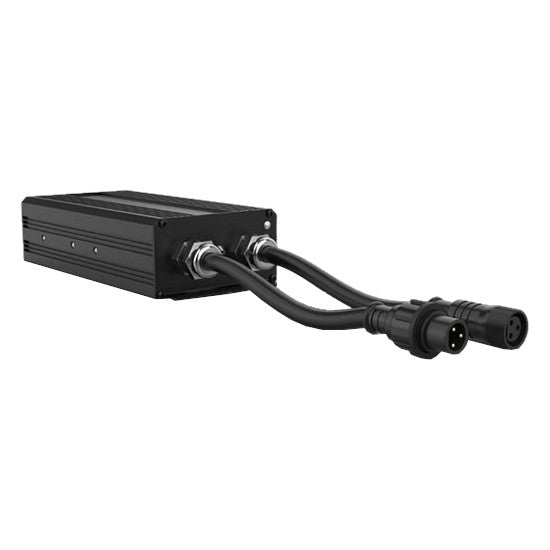

Chauvet Pro EPIX Flex Boost 24V In-Line Voltage Booster

ÉPIX Flex Boost is a 24V in-line voltage booster that doubles the capacity of each output on the ÉPIX Flex Drive and the quantity of ÉPIX Flex 20 it controls. There is no need to solder into system with this plug-and-play operation.

Chauvet Pro EPIX Flex Boost Features

• IP65 outdoor rated in-line voltage booster for ÉPIX Flex 20
• Works when connected to the outputs of the ÉPIX Flex Driver

• EPIX Flex Boost 24V In-Line Voltage Booster1
• Seetronic Powerkon power cord1

• Physical
  • Dimensions: 8.13x3.56x1.83 in (206.5x46.5x90.5 mm)
  • Weight: 4.4 lb (2 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum
• Connections
  • Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Device inputs: (1) 3-pin male IP FlexDevice Outputs: (1) 3-pin female IP Flex
  • Physical Linking: 2 inline ÉPIX Flex 20Cable Length (signal): 1.16 ft (0.355 m)
  • Cable Length (power): 5 ft (1.5 m)
• Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 200 W, 1.6 A @ 120 V, 60 Hz
  • Power and Current: 200 W, 0.87 A @ 230 V, 50 Hz
• Certifications/Qualifications
  • CE, METIP Rating: IP65, outdoor/wet, with pressure equalizing M14 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
  • MET Listing Number: E114016-1144
  • US Safety: UL 8750
  • Canadian Safety: CSA C22.2 No. 250.13-12
