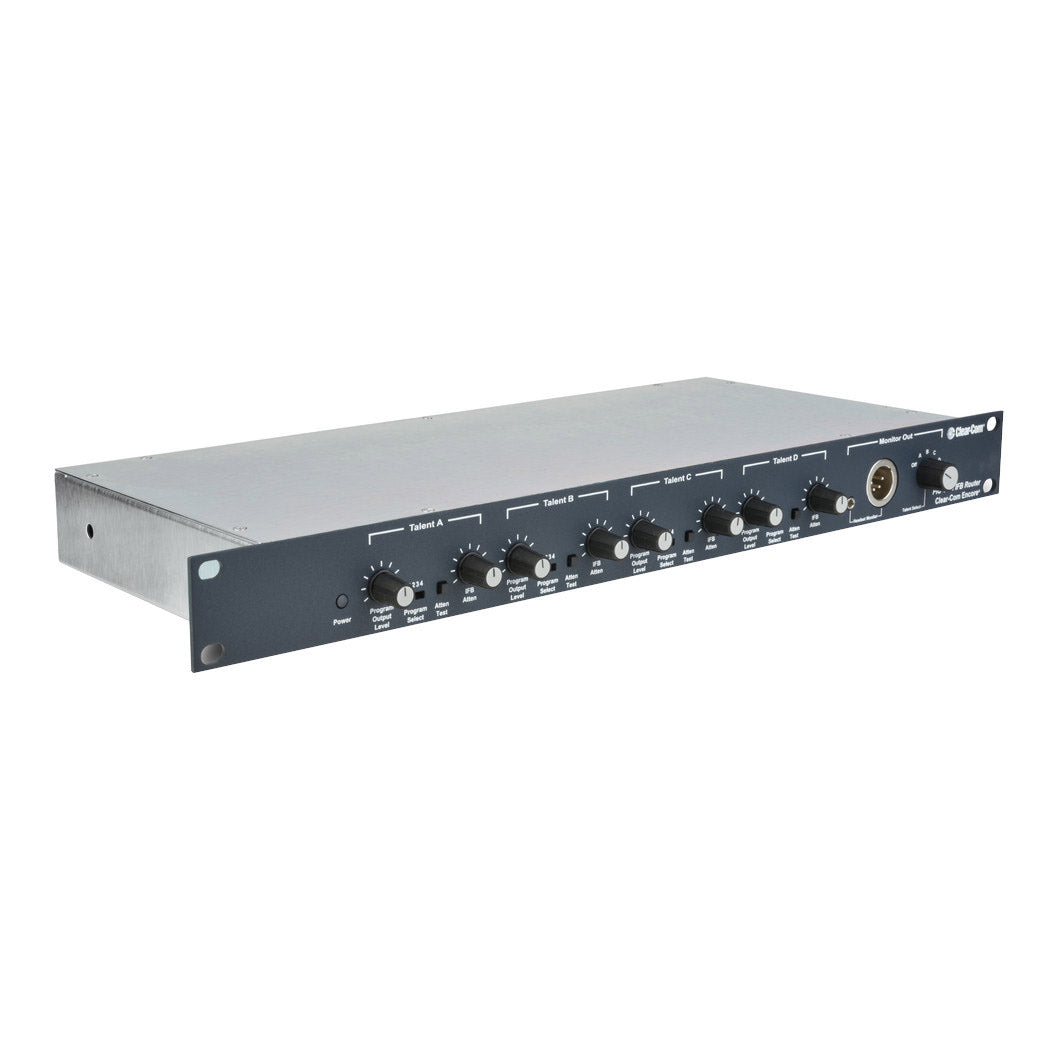

Clear-Com PIC-4744 Encore Program Interrupt/IFB Router

The PIC-4744 provides four XLR3M analog partyline level audio outputs (Talent channels) and four XLR3F analog line level audio inputs (Program channels). Each Talent channel can select and place one of the four program sources to the output. A front panel variable trim pot is supplied for adjusting the source level to the output.

Clear-Com PIC-4744 Features

• Four separate Program channels and Talent channels
• Wet/Dry switch to access 3rd party wireless IFB, console input, recording devices, etc.
• Program attenuation individually adjustable for each talent output
• Tally lights indicate IFB channels in use
• All IFB button simultaneously access all IFB channels
• Powered by the intercom line

• PIC-4744 Encore Program Interrupt/IFB Router1

• Program Line Input
  • Maximum Level Before Clipping: >= 20dBu
  • Input Impedance: <10kΩ
• Audio
  • Output Level for Talent: Clear-Com Partyline Level (approx. -10dBu)
  • PGM Source Adjustable Range: +20dBu
  • Attenuation Adjustable Range: 50dBu
• Frequency ResponsePanel Input – Talent: 200 – 18kHz +3dB
• Max DistortionProgram Input – Talent: <= 0.1%
• NoiseProgram Input – Talent: < -85dBu
• Power
  • Input Voltage Range: 20-30V DC
  • Input Current: <= 90mA
• Rear Panel Connectors
  • IFB Input: (2) XLR6F-Switchcraft pin layout*
  • Power Loop Through: (1) XLR3M, (1) XLR3F
  • Talent Out: (4) XLR3M
  • Program In: (4) XLR3F
  • Wet/Dry Switch: (4)
• Front Panel Controls & Indicators
  • (1) Power indicator LED
  • (4) Program Output level controls
  • (4) Program Select input switches
  • (4) Attenuation (Atten) test buttons
  • (4) Attenuation (Atten) level controls
  • (2) Headset Monitor ports (3.5mm and XLR)
  • (1) Monitor select switch
• Environmental32˚ – +122˚F (0˚ – +50˚C)
• Dimensions (WxHxD)19x1.75x7.5" (483x44x190mm)
• Weight5.76lbs (2.6kg)
• *IMPORTANT: XLR Connector CompatibilityClear-Com products featuring 6-pin XLR connectors utilize the Switchcraft XLR pin layout. Compatible connectors are available from manufacturers, such as Switchcraft and Neutrik, yet compatibility must be verified. Neutrik 6-pin XLR connectors must include “S” in the part number to ensure compatibility.
