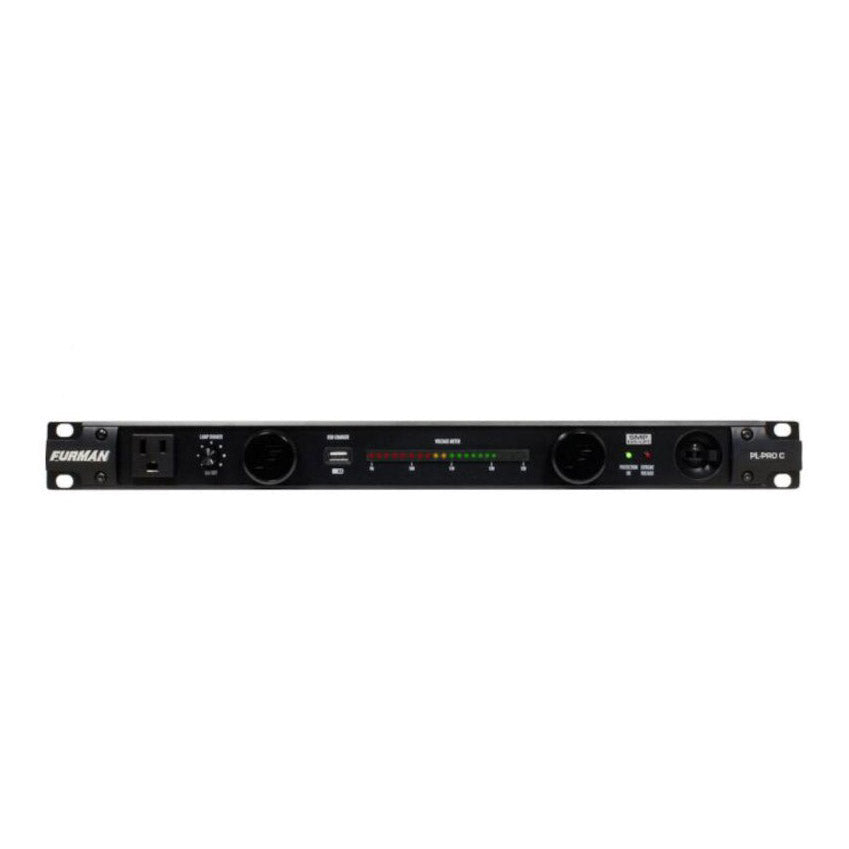

Furman PL-PROC 20A Power Conditioner with Voltmeter

The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design. The Classic Series features Furman's revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge supressors. The PL-PROC 20A Power Conditioner with Voltmeter is great for instrument rigs, DJ equipment, in recording and pro audio applications.

Furman PL-PROC Features

• SMP technology provides surge and spike protection
• LiFT offers AC power filtering noise filtration
• Advanced EVS circuitry voltage protection powers itself and connected equipment in unsafe conditions
• Dual smooth track retractable LED lights
• Diagnostic LED status indicators
• USB charger on front panel
• LED voltmeter
• Isolated banks minimize inter-component interference and noise contamination
• 3 widely spaced outlets accommodate bulky AC power transformers and wall warts
• 20 amp rating
• 8 rear panel outlets
• 1 front panel convenience outlet
• BNC lamp connector powers standard gooseneck lamp (not included)
• Steel chassis construction with anodized aluminum front panel and glass epoxy printed circuit boards
• Rack mountable
• TUVus compliant
• 5 Year Limited Warranty

• PL-PROC 20A power conditioner with voltmeter1
• Set of rack ears1
• AC power cord1

• Response time1 nanosecond
• Max surge current6,500 amps
• Line voltage120 volts
• Outlets9
• Isolated banks2
• Power consumption12 watts
• Under-voltage shutoff90V
• Over-voltage shutoff140 VAC
• Max current rating20 amps
• Initial clamping level188 VAC peak @ 3,000 amps
• Filtration ratings10dB (at 10kHz), 40dB (at 100kHz), 50dB (at 500kHz)
• AC power cord10 ft, captive 3/12 AWG, with NEMA 20 plug
