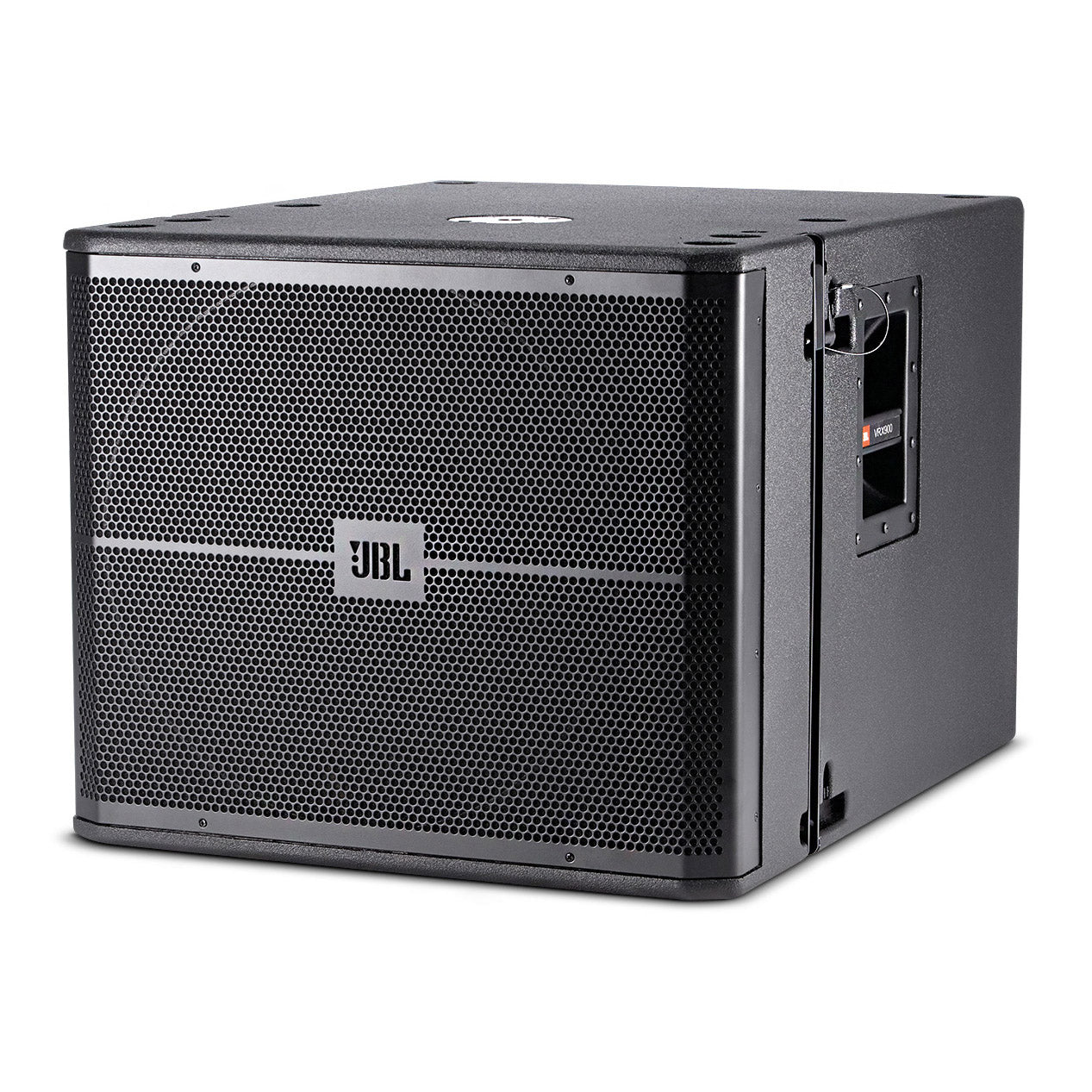

JBL’s VRX918S compact, high-power, suspendable subwoofer system features patented Differential Drive, 18" woofer in a front-loaded, vented enclosure, and more. The VRX918S was designed specifically for use in arrays with the VRX932LA Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918S subwoofers.
JBL VRX918S Features
- Integral rigging hardware for simple connection of VRX932LA line-arrays and optional array frame
- 18 inch, 2268H Differential Drive® woofer for extended low-frequency output
- Large port area for reduced distortion
- 20 mm threaded pole socket for solid, secure satellite speaker mounting
- VRX918S Flyable Subwoofer1
- Power Rating 800 W / 1600 W / 3200 W
- Frequency Range 31 Hz – 220 Hz
- Dimensions (H x W x D) 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)
- Frequency Range (-10dB) 31 Hz – 220 Hz
- Recommended Crossover Frequencies 80 Hz, 24 dB / octave HPF80 Hz, 24 dB / octave LPF
- System Maximum SPL 130 dB SPL peak
- System Sensitivity (1w @ 1m) 95 dB SPL
- LF Driver 1 x JBL 2268H 457 mm (18 in) Differential Drive woofer
- Nominal Impedance 8 ohms
- Active Tunings Tunings available at www.jblpro.com
- EnclosureRectangular, 18 mm, 13-ply birch plywood
- Suspension / Mounting Optional VRX932LA-AF line array frame kit or 10mm eyebolt
- Finish Black DuraFlex™ finish
- Grille Powder coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing
- Inputs Neutrik® Speakon® NL-4 (x2)
- Net Weight (each) 37 kg (81 lb)
- Outputs 1 x XLR
