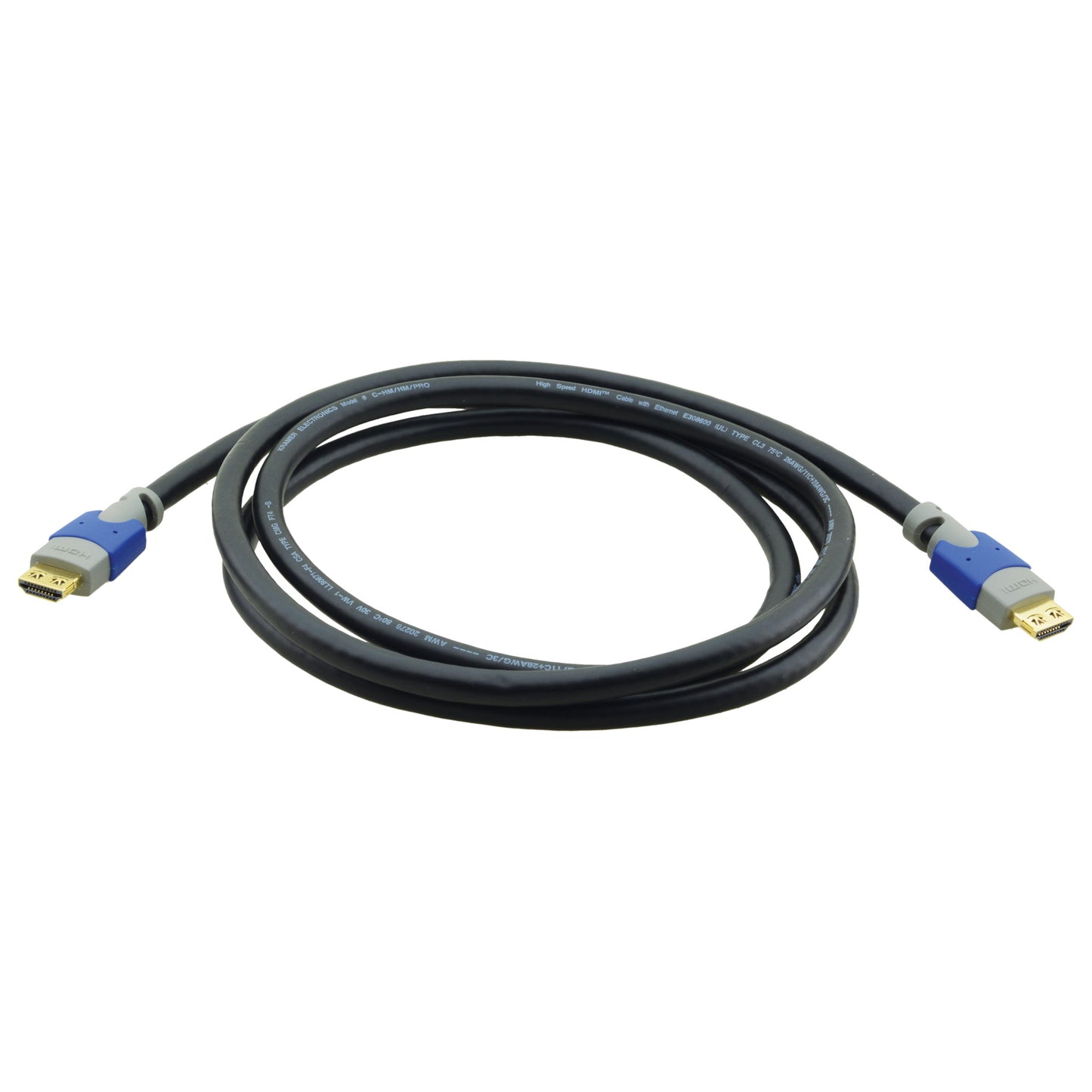

Kramer C-HM/HM/PRO High-Speed HDMI Cable with Ethernet

With heavy−duty construction, triple−shield bonded pairs and K−Lock connectors, PRO series cables are robust and reliable for the most demanding applications.

Kramer's C−HM/HM/PRO HDMI cable delivers high−speed, high−performance digital video and audio with impeccable impedance stability, low skew, high signal integrity, and noise immunity for up to 4K@60Hz (4:4:4).

Kramer C-HM/HM/PRO High-Speed HDMI Cable with Ethernet Features

• Max. Data Rate — 18Gbps.
• Max. Resolution — 4K@60Hz (4:4:4).
• Deep Color — Supports 24–bit, 30–bit, 36–bit and 48–bit (RGB or YCbCr) color depths. Best for multimedia applications or home cinema and surround systems.
• Multi–Channel Audio Support — Supports audio stream for external decoding by AV receivers and automatic audio syncing capabilities.
• High Quality Connectors — 24K gold–plated, corrosion–resistant and best possible connectivity.
• K–Lock Pull–Resistant Connectors — Provides 15lbs of restraining force for a non–slip connection.
• Premium certified (up to 15ft)
• Shield — Triple overall shield against EMI/RFI interference
• Varied Selection of Lengths — Available in versions of 0.9 to 19.8m (3, 6, 10, 15, 25, 35, 50 and 65ft).

• C-HM/HM/PRO High-Speed HDMI Cable with Ethernet1

• Video
  • Max Resolution for 3–20ft (.9–6.1m) lengths: 4K@60Hz (4:4:4)
  • Max Resolution for 25–35ft (7.6–10.7m) lengths: 4K@30Hz (4:4:4)
  • Max Resolution for 50ft (15.2m) lengths: 1080p 12bit
  • Max Resolution for 65ft (19.5m) lengths: 1080p
  • Max Data Rate for 3–20ft (.9–6.1m) lengths: 18 Gbps (6Gbps per channel)
  • Max Data Rate for 3–15ft (.9–4.6m) lengths: 18 Gbps (6Gbps per channel)
  • Max Data Rate for 25–35ft (7.6–10.7m) : 10.2 Gbps (3.4Gbps per channel)
  • Max Data Rate for 50ft (15.2m) lengths: 6.68Gbps (2.2Gbps per channel)
  • Max Data Rate for 65ft (19.5m) lengths: 4.46Gbps (1.4Gbps per channel)
  • Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
  • HDMI Compliance: HDR, HDCP 2.2, EDID and CEC, ARC and ETH
• AudioSupported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS–HD Master Audio™, DVD Audio, SA–CD
• Physical
  • HDMI Source: On a male HDMI type A, 24K gold–plated K–Lock connector
  • HDMI Display: On a male HDMI type A, 24K gold–plated K–Lock connector
• Conductors
  • Material: Bare Copper
  • 3–35ft (.9–10.7m) lengths: 26AWG (7/0.160)
  • 50ft (15.2m) lengths: 24AWG (7/0.20)
• ScreeningType: Triple shielding
• Jacket
  • Color: Black
  • Diameter for 3–35ft (.9–10.7m) lengths: 8 ± 0.19mm
  • Diameter for 50ft (15.2m) lengths: 9.50 ± 0.25mm
  • Material: PVC
• Mechanical
  • Cable Bending Radius for 3–35ft (.9–10.7m) lengths: 80mm
  • Cable Bending Radius for 50ft (15.2m) lengths: 95mm
• Electrical
  • Temperature Rating: 80°C
  • Voltage Rating: 30V
  • Conductor Resistance – 26AWG: 148Ω/km
  • Conductor Resistance – 24AWG: 63.2Ω/km MAX. at 20Ω
• Standard Compliance
  • Safety: Flammability Rating — CL3/FT4
  • Environmental: RoHS 2011/65/ EU
