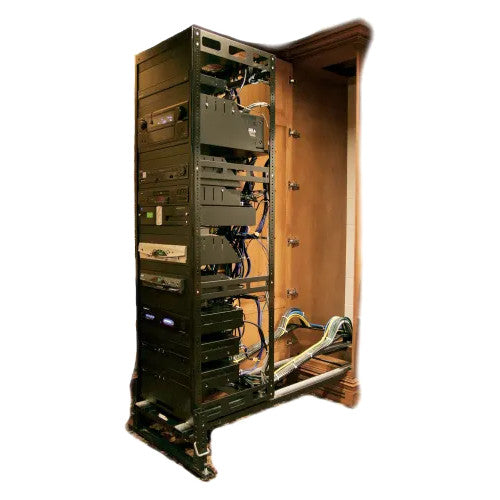

Specify an AXS when installing audio and video equipment flush into a wall or cabinet; ideal for larger systems. The patented pull-out design provides access to rear equipment connections. Entire bays of equipment can be rolled out for service and installation flexibility.
Middle Atlantic AXS Service Tracks Features
- Unique interlocking corner joint for exceptional strength and easy assembly
- Service stand raises service tracks to bottom of AXS, allowing it to pull out
- Service tracks include built-in level to save time
- Removable rack frame can be integrated off-site to save time
- Articulating cable carriers provide effective cable management (non-rotating models only)
- Standard fixed front and rear 10-32 threaded rackrail with numbered spaces
- Service tracks and stands sold separately
- Middle Atlantic AXS Service Tracks1
- Dimensions & Measurements
- Depth: 16.5-26 in (41.9-66 cm)
- Extension Length: 25-48 in (63.5-121.9 cm)
- Height: 21.9-79.9 in (55.7-203.1 cm)
- Primary Package Weight: 17.5-80.8 lbs (7.9-36.7 kg)
- Rack Units: 10-43 RU
- Usable Depth: 16.5-26 in (41.9-66 cm)
- Usable Height: 17.5-75.3 in (44.5-191.1 cm)
- Weight Capacity: 650 lbs (294.8 kg)
- Width: 19.1-19.3 in (48.6-48.9 cm)
- Characteristics & Features
- Federal Ops Country of Origin: USA
- Finish: Black Powder Coat
- Material: Steel
- Mounting Points: 4
- Rack Rail Type: 10-32
- Certifications
- Greenguard
- LEED Contribution
- ROHS
- TAA
