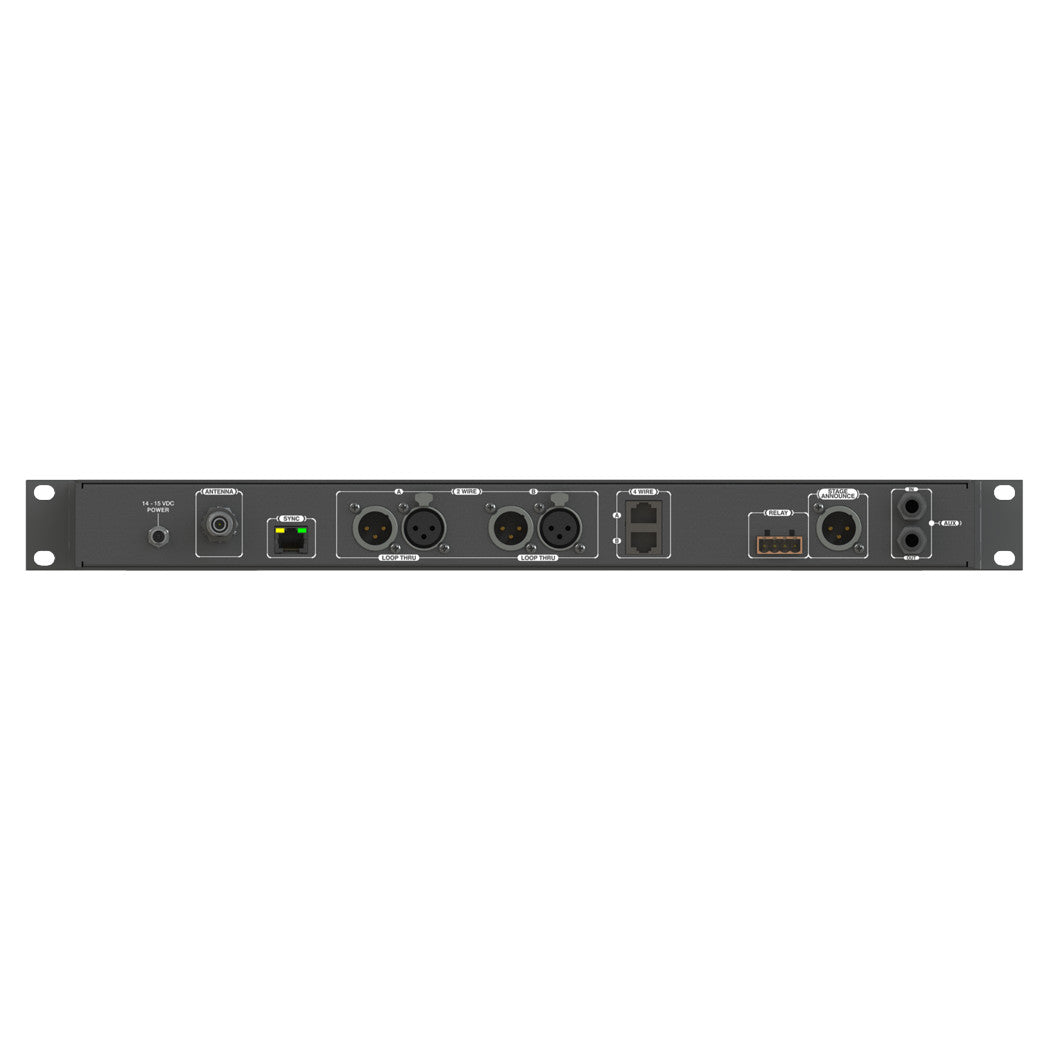

Pliant Technologies CB2-2400 CrewCom 2.4GHz 2-Channel Base Station

The CrewCom CB2 2400 1RU BaseStation features 2-channels, a 2.4GHz internal radio, and supports up to six CRP-12-2400 Radio Packs.

The CB2 BaseStation establishes the wireless connectivity while also providing external connections to common established intercom systems. This system also provides external connectivity via two 2-Wire or two 4-Wire ports. A maximum of two CB2 BaseStations can be linked together. Note: The CB2 BaseStation is ONLY compatible with the CRP-12-2400 Radio Pack, is NOT compatible with any CrewCom CRP-22 or CRP-44 Radio Packs.

Pliant Technologies CB2-2400 Features

• Each CB2 BaseStation supports up to 6 Radio Packs
• Easy-to-use interface with large informative backlit display and clearly laid out quick-access controls
• 2-Wire and 4-Wire intercom connections
• Front panel USB ports for Radio Pack pairing and firmware updates
• Front panel headset monitor station
• Stage announce audio output and relay
• Aux In/Out for program input and intercom audio output
• External 2 dB omni-directional antenna
• Sync input to receive sync from another CB2 BaseStation or CrewCom system. Sync port can link audio between two CB2 BaseStations.

• CB2-2400 CrewCom 2.4GHz 2-Channel Base Station1
• 14 VDC External Power Supply (part number PPS-14V)1
• Omni-Directional Antenna 1
• USB A to Micro B Cable1
• Quick Start Guide1
• USB Flash Drive that includes product documentation and Firmware Updater Application1
• Warranty Extension Registration Card1

• RF Frequency2400–2483 MHz
• RF Scheme FHSS with TDMA
• Effective Radiated Power 100 mW (+20 dBm)
• Radio Certification FCCID: HSW-CCT24 and IC: 4492A-CCT24
• Transmission Range150 m (approx. 500 ft.) under typical conditions; 450 m (approx. 1500 ft.) line of sight. Note: Functional range depends on many variables, including RF signal absorption, reflection, and external interference.
• Hardwired Intercom Audio Channels 2
• No. of Active Radio Packs Supported 6
• No. of Paired Radio Packs Supported (per CB2) 6
• USB Ports (1) USB Type A; (1) Micro USB
• Front Panel LCD Display 512 × 128 resolution
• Stage Announce and Relay 1 Relay via Phoenix Conn
• Sync Port (supports one connection) (1) RJ-45 for copper
• 2-Wire Intercom Connection 2 Channels via XLR 3F with XLR 3M loop (2 ports)
• 2-Wire Compatibility Clear-Com, RTS, and AudioCom (Balanced)
• 4-Wire Intercom Connection 2 Channels via RJ-45
• Stage Announce Output XLR 3M, balanced, transformer isolated
• Aux In 6.35 mm (1/4 in.) 3 conductor jack, 17.5 dBu max in (nominal line level +5 dBu), balanced, transformer isolated
• Aux Out 6.35 mm (1/4 in.) 3 conductor jack, 17.2 dBu into 600 ohms (nominal line level +5 dBu), balanced, transformer isolated
• Power Input/Connector 2.5 × 5.5 × 8 mm, 14 VDC, 1.2 A
• Dimensions (L×W×H) 1 RU, 48.26×4.39×29.67 cm (19×1.73×11.68 in.) metal enclosure
• Weight 2.7 kg (5.9 lb)
• Operating Environment -20° to 50° C (-4° to 122° F); 10% to 90% Humidity
• Maximum Sync Line Length CAT 5e (or greater) 100 m (330 ft.)
• Maximum Altitude 2,000 m (6,562 ft.)
• RoHS Compliant Yes
• Compliance Model Number B22545
• Number of Antenna Connections per CB2 1
• Antenna Connector Type RP-TNC
• Supplied Antenna +2 dBi Omni-directional (whip)
• Notes
  • *CB2-2400CE model meets the same specifications and complies with ETSI standards (300.328 v1.8.1). Non-CE models are non-compliance with some ETSI standards.
  • ** This information is subject to change without notice. Please check Pliant Technologies' website for the latest system specifications and certifications.
