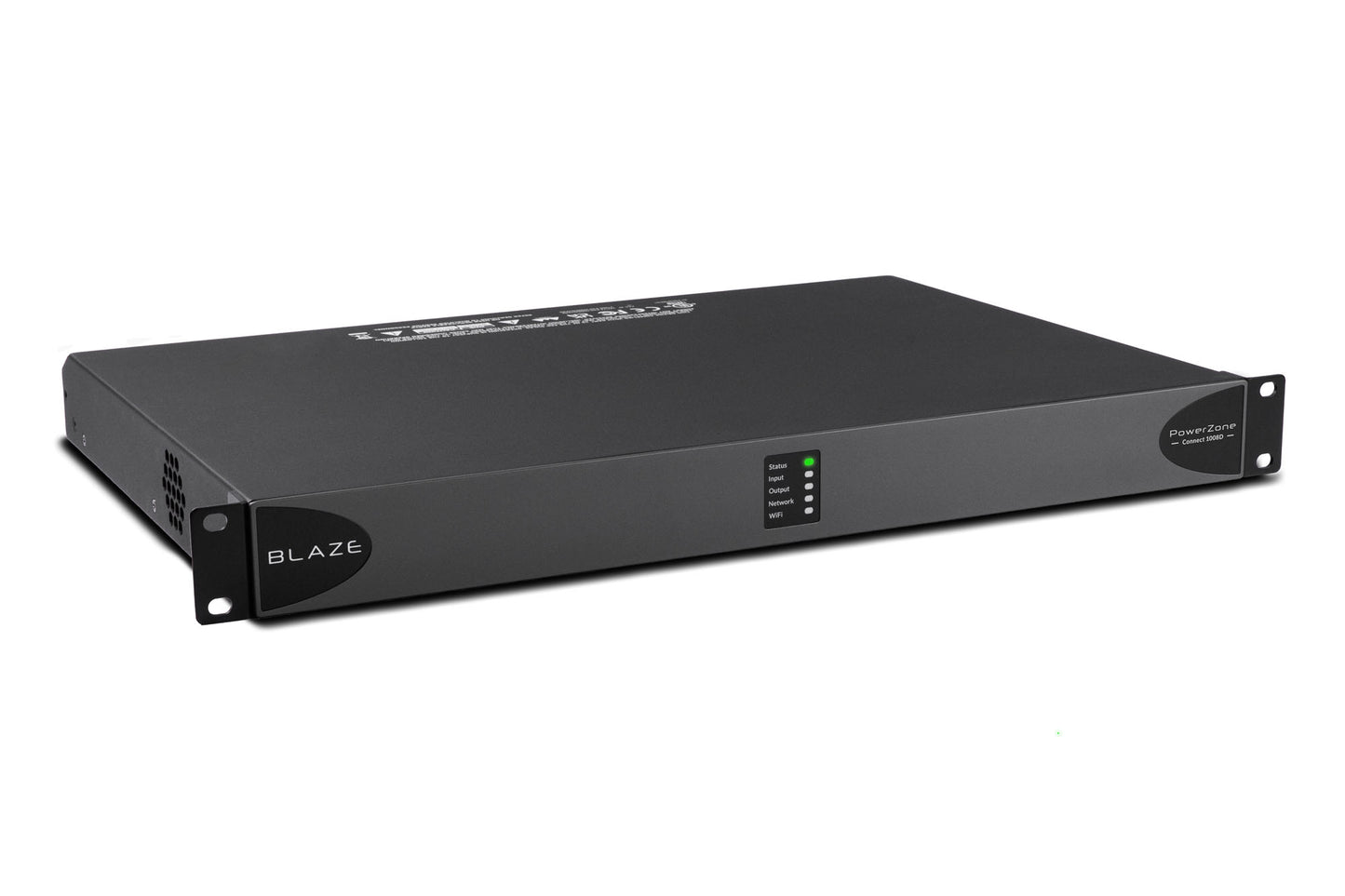

Blaze Audio PowerZone Connect 1008D DSP-Enabled Dante Power Amplifier

The PowerZone Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to simplify the lives of system installers, providing unmatched reliability, efficiency, and exceptional system configuration. Their compact form factor makes them an ideal choice for audio/voice installation projects with limited space constraints, demanding high-output performance of up to 1000 W. The 1U family powers both conventional low-impedance (4 Ω to 16 Ω) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes.

• Compact 20-input 1000W max 8-channel Dante-enabled networkable matrix smart amplifier
• Onboard mixing, DSP, Wi-Fi, control and powersharing

• Total Power1000W
• 8Ω8 x 125 W
• 4Ω8 x 125 W
• 70V4 x 250 W
• 100V4 x 250 W
• Powersharing? 2 X 250 W
• Channel Configuration
  • Lo-Z: 8x125W @4/8Ω
  • Hi-Z: 4x 250W @70/100V
  • Powersharing ?4x 250W
• Analog Inputs
  • 8 channels
  • Ch 1 - 8: Balanced Mic/Line - Euroblock
  • Ch 1 - 8 : RCA Unbalanced
• Analog Outputs
  • 8 channels - Hi-Z/Lo-Z
  • Euroblock connectors
• Digital Inputs
  • 2 x S/PDIF
  • 4 x Dante
• Digital Outputs
  • 2 x S/PDIF
  • 4 x Dante
• Network
  • RJ45; built-in Wi-Fi
  • RJ45; Dante
• DSP
  • PowerZone Control
  • &
  • PowerZone Control Center
• Control
  • PowerZone Control
  • 3rd Party Drivers
  • (Crestron, Q-SYS, RTI, Control4, etc.)
• GPIOGND,2,GND,4,5,6,7,8
• Physical Unit (H/W/D)1.7 x 17.3 x 12.6 in

• Amplifier unit1
• Mains Power cable3
• Input connector2
• Output connector2
• GPIO socket connector1
• Adhesive rubber feet4
• Document pack1
