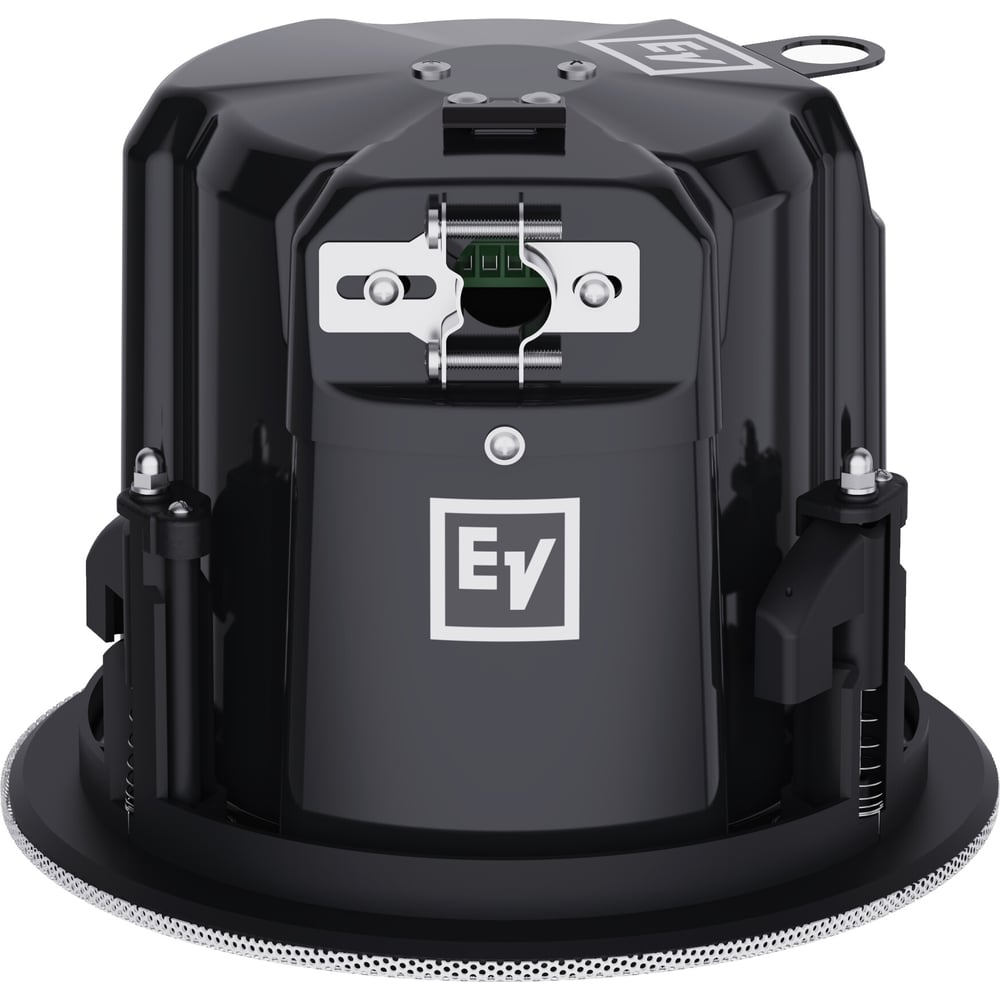

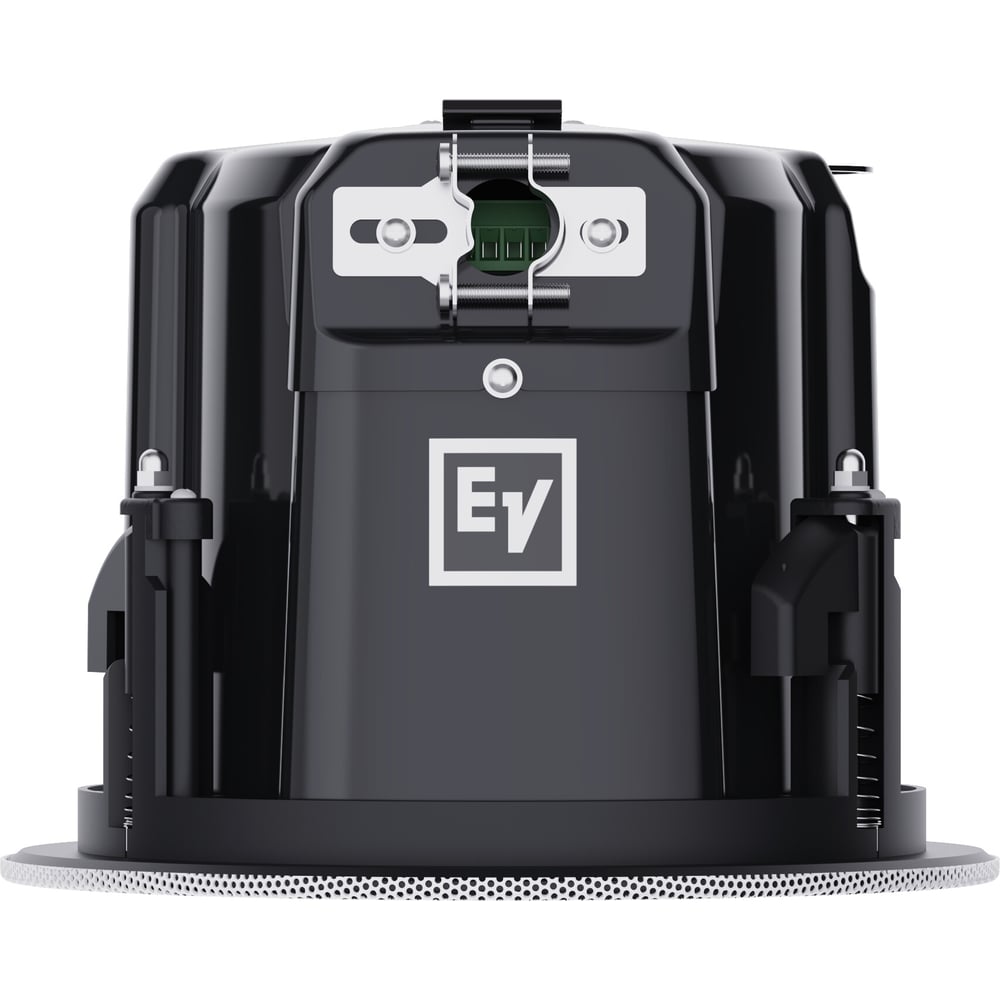

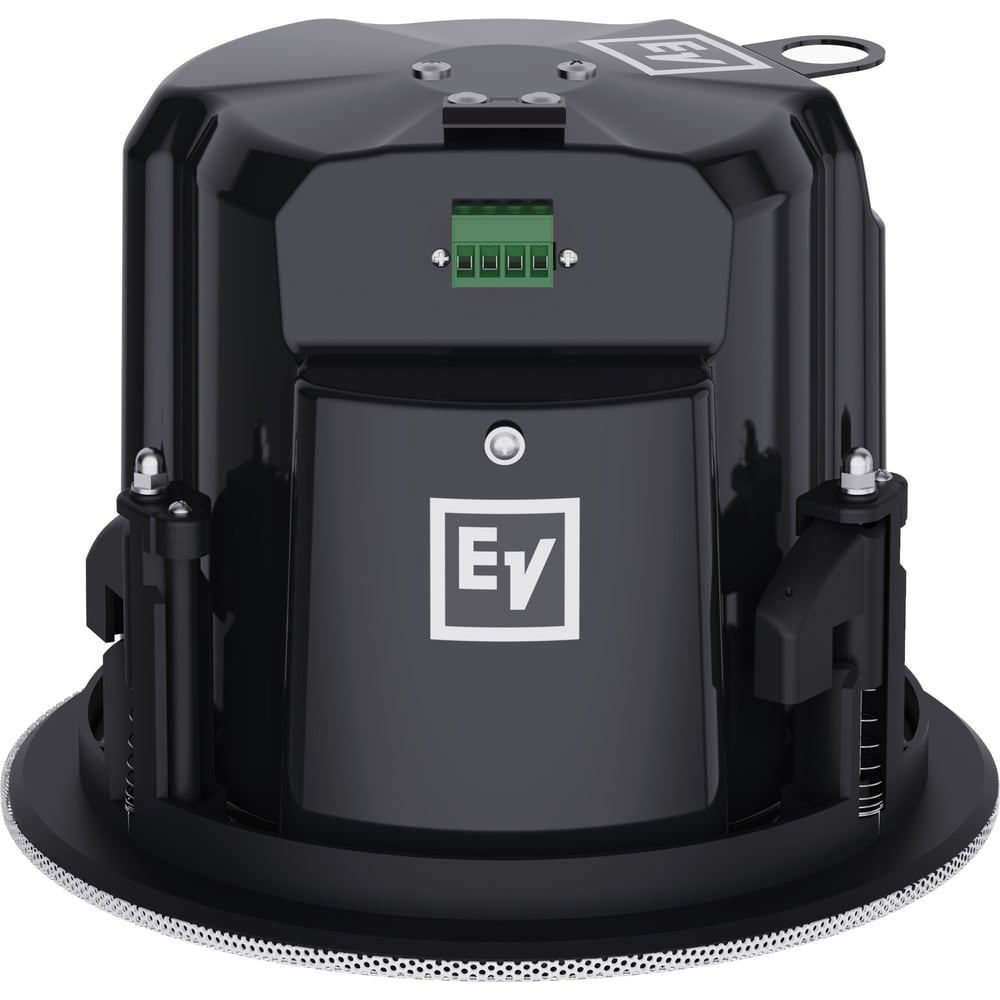

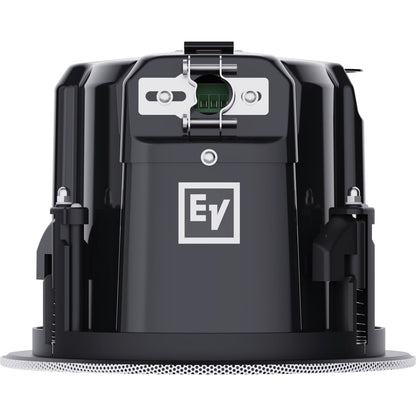

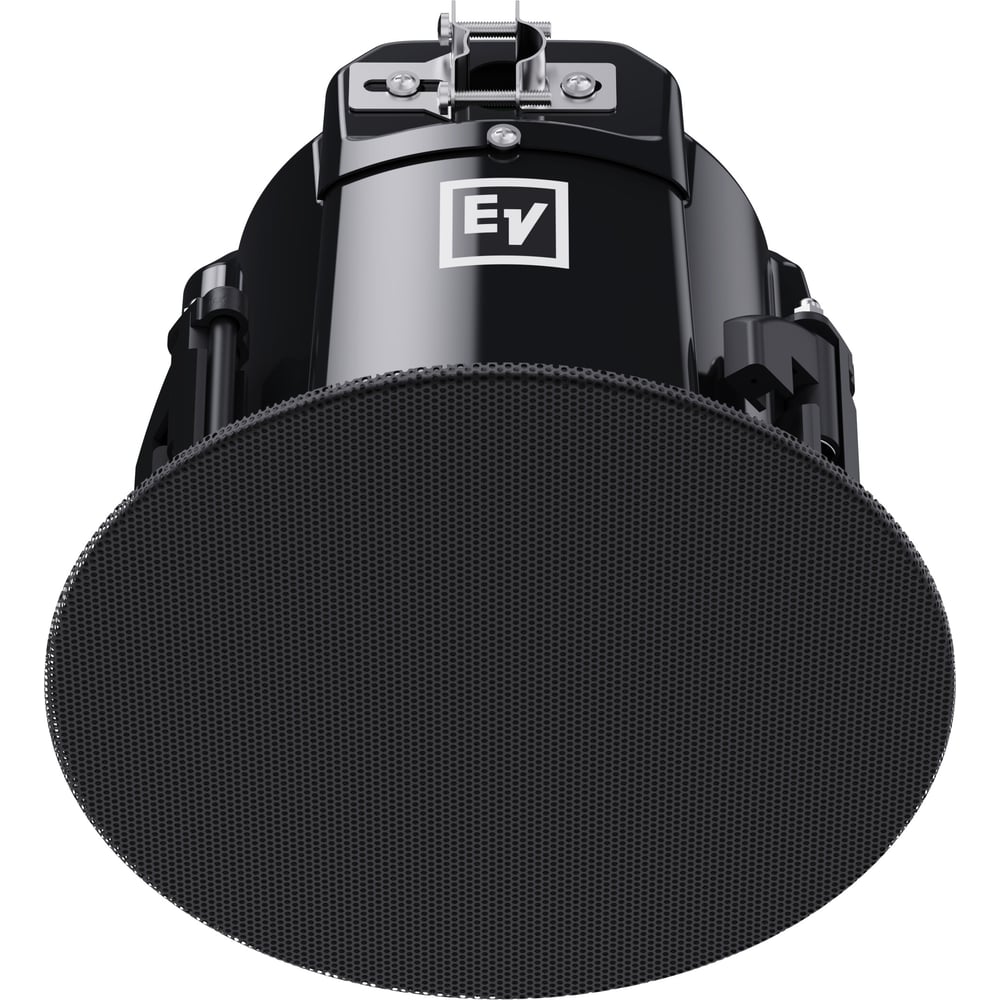

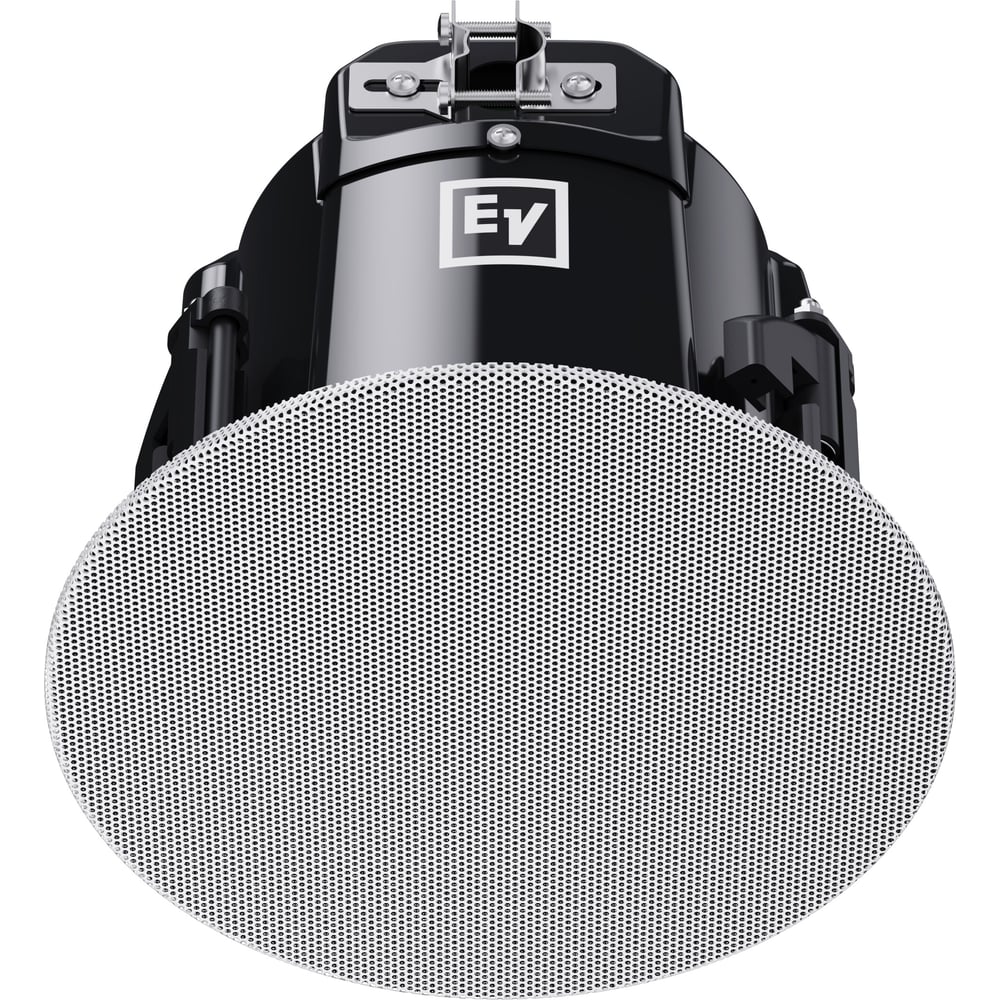

Electro-Voice EVID-C4.2-G2 High-Quality Two-Way 4" Coaxial Ceiling Speaker With White Bezel-Less

Electro-Voice EVID-C4.2-G2 High-Quality Two-Way 4" Coaxial Ceiling Speaker With White Bezel-Less

SoundPro Item: 151575 | Part Number: EVID-C4.2-G2

$199.00
$225.00 $199.00
Your Price Sold out
MSRP: $225.00 | MAP: $199.00

Usually ships in 5-7 business days

  • Waveguide-Coupled Titanium Tweeter Maintains Coherent On-Axis And Off-Axis Response
  • Ported Enclosure Architecture Extends Low-Frequency Output Without Increasing Driver Size
  • Front-Panel Transformer Selector Switches Between 70V, 100V, And Low-Impedance Modes

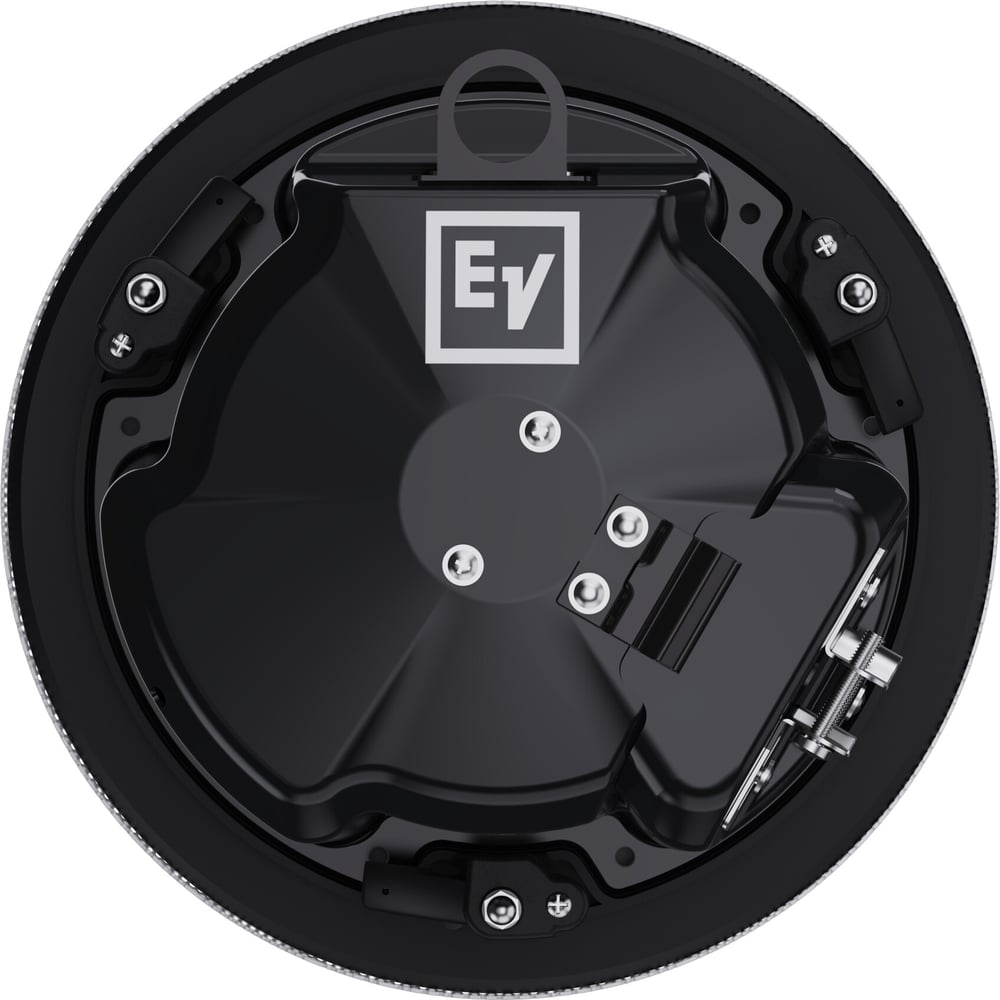

  • Integrated Three-Point Toggle Anchors Eliminate Separate Mounting Hardware
  • UL2043 Plenum Rating Permits Installation In Air-Handling Spaces

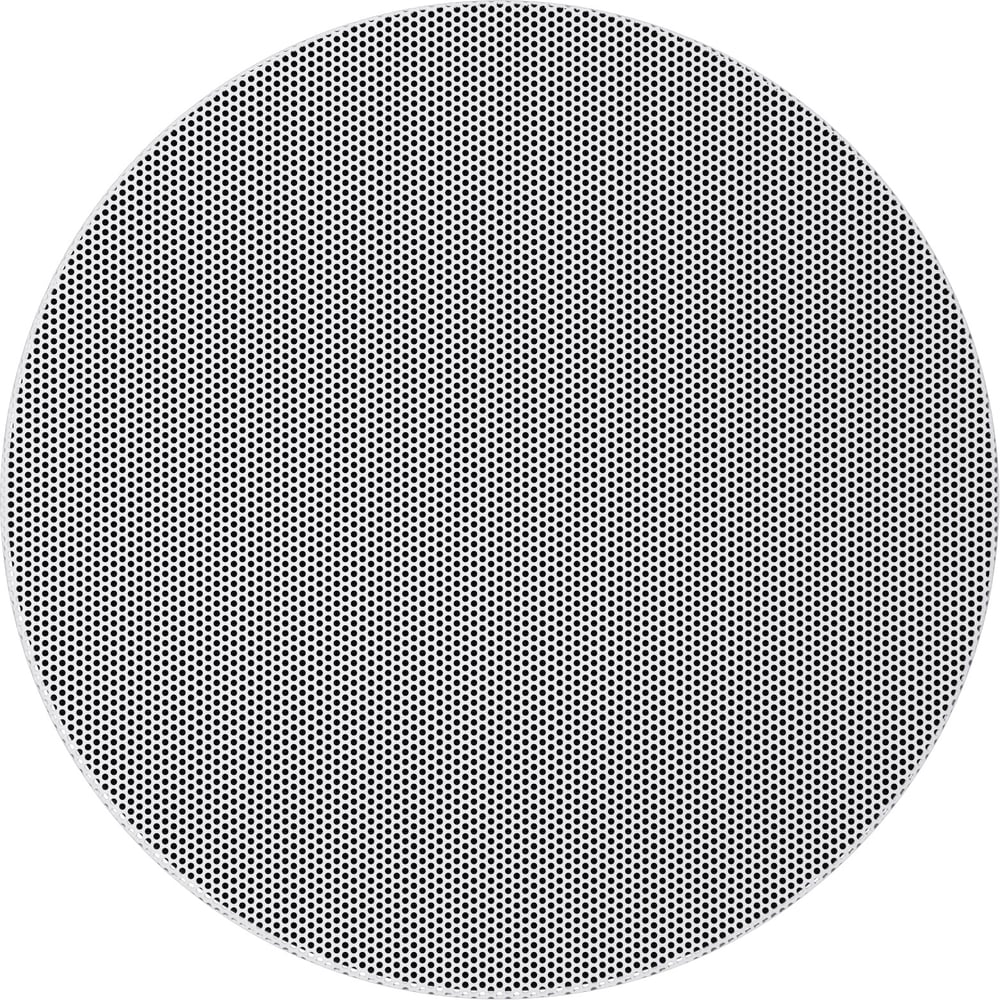

  • Powder-Coated Steel Grille Accepts Field Painting For Custom Color Matching
  • Full-Bandwidth Overload Protection Prevents Thermal And Mechanical Driver Damage
Log in or register for YOUR best price

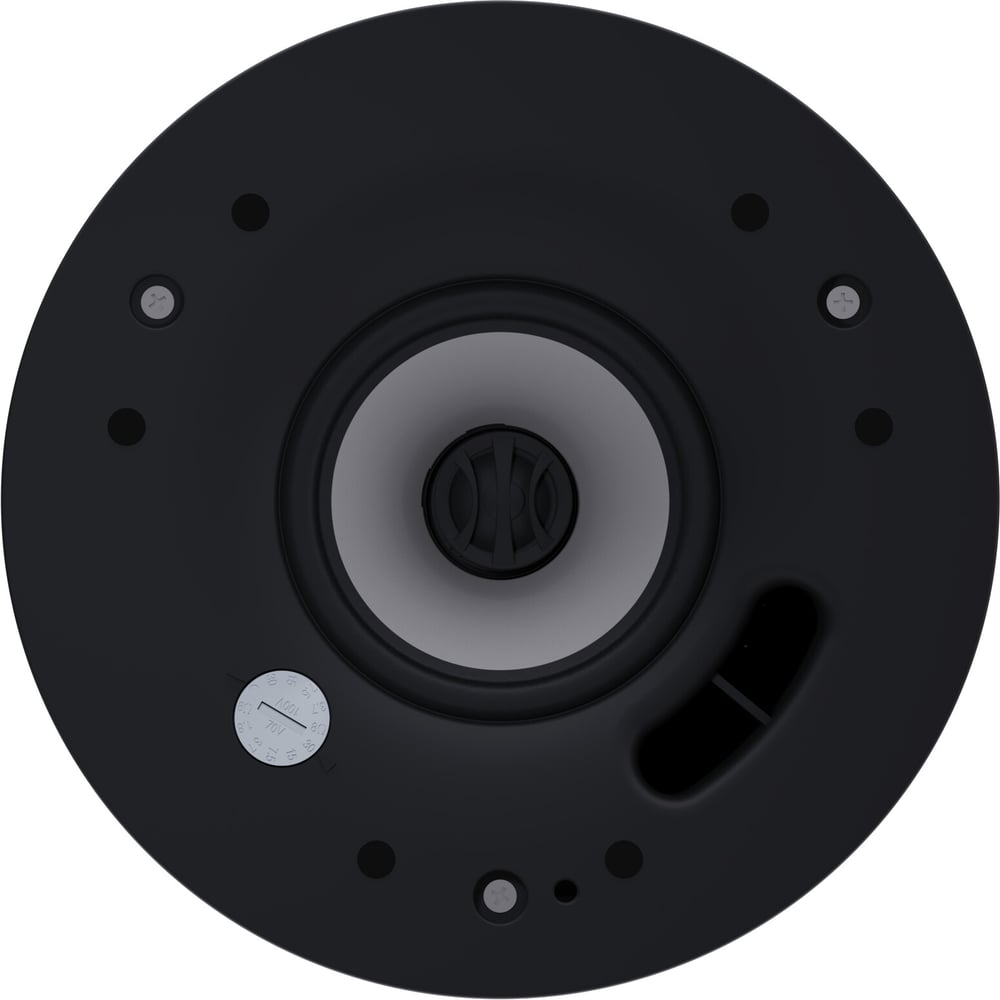

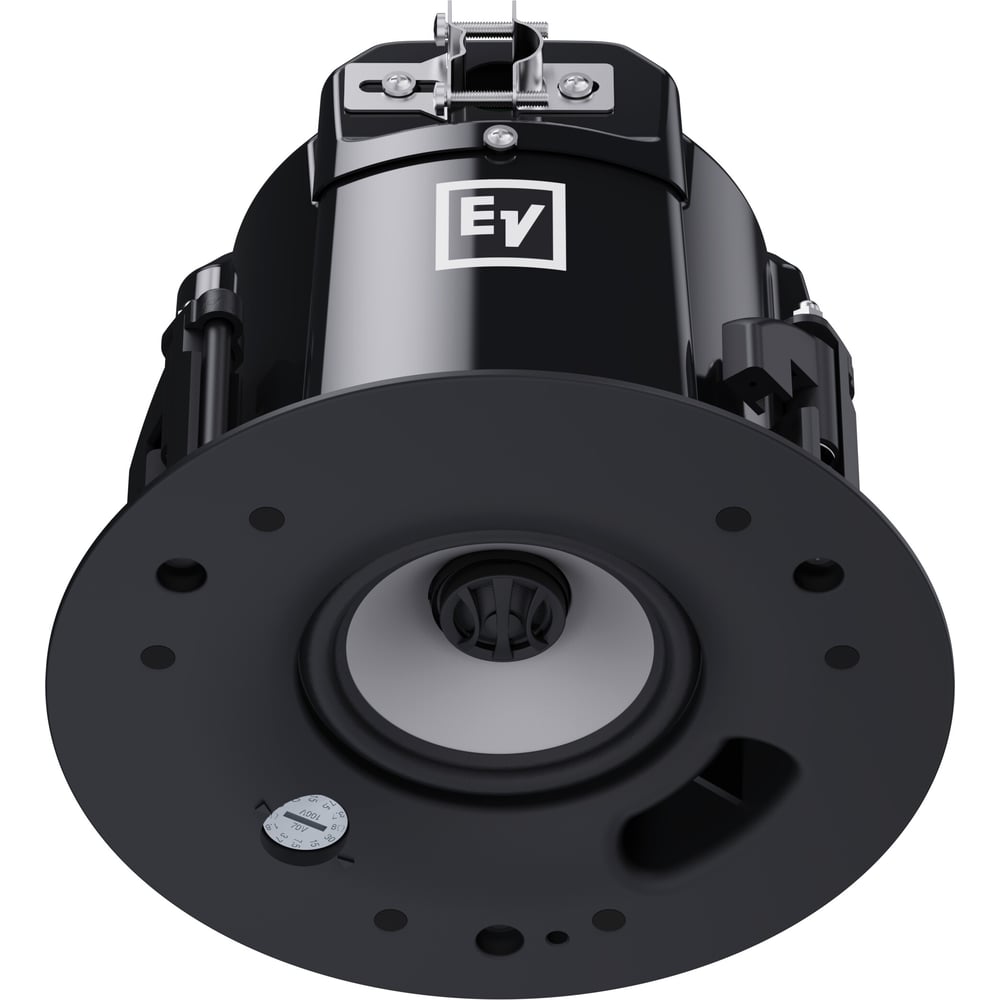

Built for contractors and integrators who need reliable distributed audio in commercial environments, this coaxial ceiling speaker combines a 4-inch polypropylene woofer with a waveguide-coupled 0.75-inch titanium-coated tweeter for balanced full-range reproduction. The ported enclosure extends bass response below typical compact ceiling models, making it suitable for retail spaces, restaurants, and corporate facilities where music playback quality matters.

The integrated transformer switches between 70V, 100V, and 8-ohm operation via a front-panel selector, eliminating external matching transformers and simplifying multi-zone installations. Full-bandwidth overload protection guards both drivers during peak program material. UL2043 plenum rating and UL1480 listing qualify it for air-handling spaces without additional enclosures.

Installation hardware is included: tile bridge, mounting ring, and three-point toggle anchors secure the system in drop ceilings or drywall. The powder-coated steel grille accepts field painting to match interior finishes. No additional brackets, back cans, or accessories are required to complete the installation.

View full details

Specifications

'Certifications
Regulatory Approvals
UL1480; UL2043
Weatherized
No
Audio
Frequency Range (-10 dB)
65 - 20000 Hz
Sensitivity 1 W/1 m
86 dB
Coverage (Nominal -6 dB)
130°
LF Transducer
4-inch polypropylene cone
HF Transducer
0.75-inch (19 mm) Ti Mylar Laminate Dome
Speaker Type
Ported cabinet, internally damped, two-way
Electrical
Power Rating
200 W
System Power Handling (Continuous/Program/Peak)
50 W
Input Formats
8ω, 70 V, 100 V
Transformer
Yes
Transformer Taps (Transformer Version Only)
(1.88 - 70 V only), 3.75, 7.5, 15, 30 W
Construction
Enclosure Material
Steel enclosure and UL94V-0 rated baffle and bezel
Grille
Powder-coated steel
Available Color
White (paintable surface)
Dimensions
Diameter (Max)
181 mm
Height
176 mm
Chassis Size
101.6 mm
Weight
Weight Net
2.7 kg
Installation
Mounting Systems
Integrated 3-point toggle anchors
