Ace Backstage 124SLCV Double Wide Pocket/Standard Lid - Coppervein

Ace Backstage 124SLCV Double Wide Pocket/Standard Lid - Coppervein

SoundPro Item: 42267 | Part Number: 124SLCV

$746.80
$746.80 $746.80
Your Price Sold out
MSRP: $746.80 | MAP: $746.80

Usually ships in 5-7 business days

  • SPRING LOADED HINGE PINS: Removable spring loaded hinge pins permit easy exchange of lids for Carpet Lid (CL), Locking Lid (LL), Standard Lid (SL) and custom application lids.
  • EXTRA LARGE CAPACITY: The Double Wide Stage Pocket accomodates #PNL-100 Series Panels, #PSW-100 Series Panels, #PNL-120 Series Panels, #PE Series Panels, and #FP3E Series Panels in an interchangeable multi-panel system making for easy custom configurations. Four (4) optional #PNL-100 Series Panels or two (2) optional #PNL-120 Series Panel will mount up to 24 "CONNECTRIX", Neutirk®, and/or Switchcraft® type connectors. Four (4) optional #PSW-100 Series Panels will mount up to 24 Switchcraft® type connectors.
  • DURABLE CONSTRUCTION: Welded steel construction of Double Wide Stage Pocket Lid, Mounting Flange, and Pocket Body resist bending under even the most severe stage loads. The Lid is made from 10 gauge (nominally (.135")) thick CRS steel, the Mounting Flange is made from 1/8" (nominally 11 ga. (.120")) CRS thick steel, and the Pocket Body is made from 16 ga. (.062") thick CRS steel.
  • RUBBER LID STOPS: Rubber lid stops set into recessed mount cradle the lid to prevent lid rattle.
  • CABLE WAY SLOTS: Generous 3/8" x 16" Cable Way Slots permit easy cable exit from pocket(s), even for large gauge cables. Two Cable Way Slot Channel Closures closes slot when not in use.
  • EASY INSTALLATION: Easy installation into 16.8" x 8.5" rectangular cutout in stage floor. Open easy access from the top or back of the stage pocket allows simple connector/panel terminations.
  • DECORATOR FINISHES: Scratch/wear resistant finish, oven cured powder coat electro-static applied inside and outside entire Double Wide Stage Pocket. Decorator neutral Antique Copper Vein and Textured Black finishes are standard. A Solid Brass Lid and Mounting Flange as well as Solid Stainless Steel Lid and Mounting Flange with brushed finishes are also available by special order.
Log in or register for YOUR best price

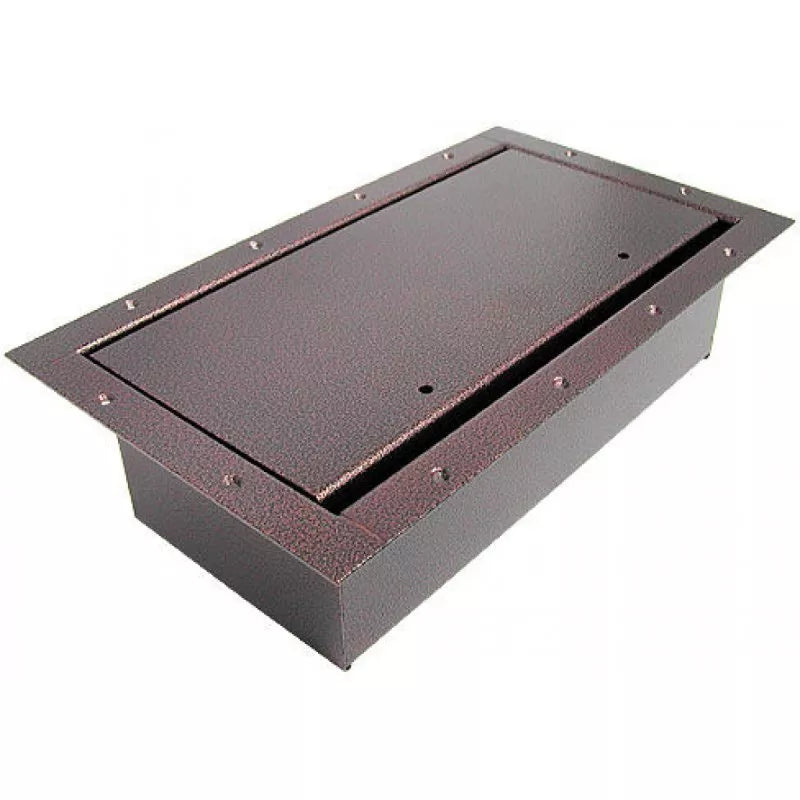

Ace Backstage Co. Inc.'s extra large-sized Stage Pocket, the Double Wide Stage Pocket, is a standard general use vertical slant panel flush stage pocket. The Double Wide Stage Pocket is made of heavy duty steel and may be used to conceal audio, communications, control, data, electric AC power, switches, video, and voice connections etc. below the floor surface for easy access and to prevent connector damage. The Double Wide Stage Pocket has an extra large capacity inter-changeable panel system which permits easy custom connector/panel configurations.
Utilizing ACE's "Connectrix" System will allow mounting of up to 24 "Connectrix", Neutrik®, Switchcraft®, and/or Custom Connectors in the Double Wide Stage Pocket. All ACE Double Wide Stage Pockets are welded steel construction, with a 1/8" (nominally 10 ga. (.135")) thick CRS steel Lid, a 1/8" (nominally 11 ga. (.120")) thick CRS steel Mounting Flange, and a 16 ga. (.062") thick Pocket Body. The Double Wide Stage Pocket resists bending under even the most severe stage loads.
Removable spring loaded hinge pins permits easy exchange of lids for carpet lids, locking lids, standard lids, and other custom application lids. A generous cable way slot of 3/8" x 16" permits easy cable exit from the stage pocket, even for large gauge cables. Two cableway slot channel closures closes the slot when not in use. The Double Wide Stage Pocket has an easy installation into 16.8" x 8.5" cutout in the stage floor. Open easy access from top or back of the Double Wide Stage Pocket to connector panels makes for easy installation.
A scratch/wear resistant finish, oven cured powder coat is electro-staticly applied inside and outside the entire Stage Pocket. Decorator neutral Antique Copper Vein or Textured Black finishes are standard. A Solid Brass Lid and Mounting Flange as well as Solid Stainless Steel Lid and Mounting Flange are also available by special order. TheDouble Wide Stage Pocket's solid rubber Lid Stops cradle the lid to prevent lid rattle.

View full details

Specifications

Product Type
Interface Panel
