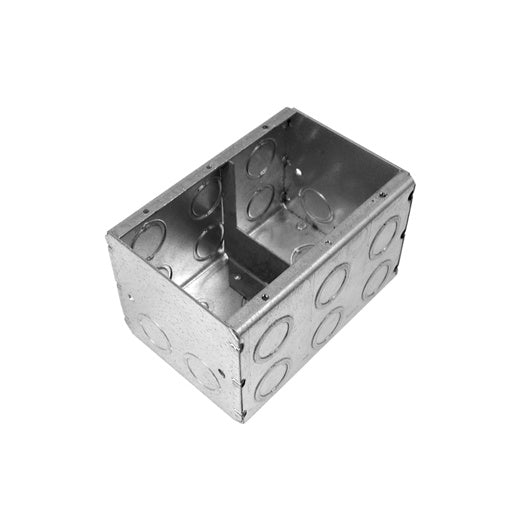

Ace Backstage 025BBX/AC Isolated Steel Back Box For Mini Stage Pockets

Ace Backstage 025BBX/AC Isolated Steel Back Box For Mini Stage Pockets

SoundPro Item: 42238 | Part Number: 025BBX/AC

$83.57
$83.57 $83.57
Your Price Sold out
MSRP: $83.57 | MAP: $83.57

Usually ships in 5-7 business days

  • UL Certified Construction Confirms Compliance With Industry Electrical Safety Standards
  • AC Isolation Divider Provides Secure Separation Between Low And High Voltage Panels
  • Predrilled Mounting Flange Unifies Lid, Bezel, Pocket Body, And Back Box Into One Assembly
  • Welded Steel Body With Tapped Holes Ensures Consistent Mechanical Rigidity
  • Concentric Combination Knockouts On Bottom And Ends Simplify Conduit Routing
  • Galvanneal Isolation Bracket Adds Corrosion-Resistant Structural Integrity
Log in or register for YOUR best price

The Ace Backstage 025BBX/AC is designed for installers and integrators embedding Mini Stage Pockets into stage floors, architectural installations, or performance venues where below-floor infrastructure must meet electrical code and safety requirements. It solves the challenge of securing the pocket assembly through finished flooring while separating low-voltage signal connectors from high-voltage AC connections.

The welded steel construction with tapped mating holes provides the mechanical rigidity needed to satisfy floor loading requirements, while the predrilled mounting flange sandwiches the lid, bezel, stage pocket body, and back box into a single unified assembly. The included galvanneal isolation bracket — fabricated from impregnated 16-gauge steel — physically separates the AC panel (MP-113) from the low-voltage connector side, a critical requirement in any installation where both signal and power share a common pocket enclosure.

For production teams and electrical contractors working under tight site schedules, the concentric combination knockouts on the bottom and ends simplify conduit routing without field modification. UL certification confirms compliance with industry safety standards, making this back box the correct choice for professional theatrical, touring, and installed AV environments where mixed-voltage pocket systems are deployed.

Downloads

View full details

Specifications

Dimensions
Floor Cut Out Width
3.75"
Floor Cut Out Length
5.563"
Under Floor Depth
3.5"
Construction
Body Material
Steel
Isolation Bracket Material
Galvanneal (Impregnated 16 ga Steel)
Knockout Sizes
1/2" and 3/4" Concentric Combination
Knockout Locations
Bottom and Ends
Certifications
Listing
UL Certified
Identifiers
MPN
025BBX/AC
