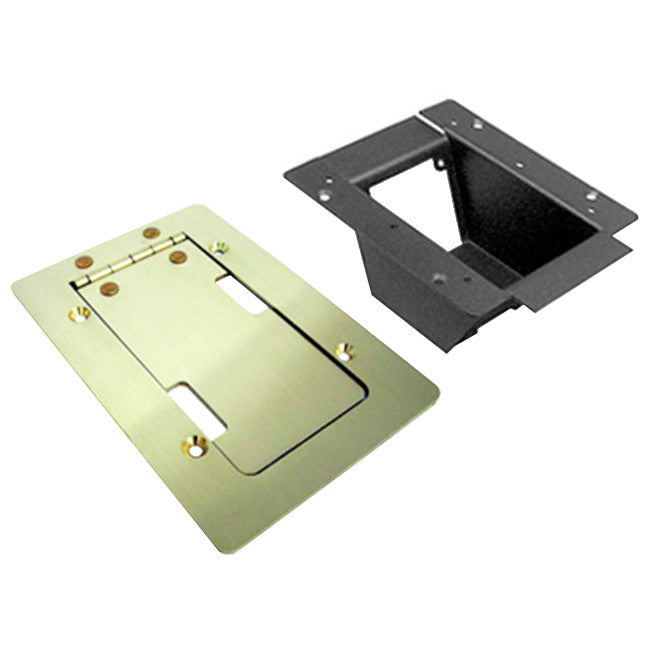

Ace Backstage Mini Stage Pocket | Finish: Brass

Measuring less than a square foot the Mini Stage Pocket is a compact assembly for up to 4 small connectors. With opposing dual slant panel positions, up to two connectors are positioned in each panel to conceal and protect connectivity in an inconspicuous sized floor box. Back box options are available to accomplish isolated 110VAC together with low voltage audio, video, or data connectivity in one pocket.

The Mini Stage Pocket lid and mounting flange assembly mounts to the pocket body for easy installation in raised floor applications, with or without a back box. Made of welded steel, standard Minis are finished in scratch resistant powdercoat and are designed to withstand years of use without discoloring or corroding.

Compatible with CONNECTRIX Panels and CONNECTRIX Connectors, careful consideration of connector placement can provide just enough room for cable-end receptacles to index inside the pocket cavity and cables to feed through the two cable exit locations. Optimally, three small connectors can be strategically positioned on opposing CONNECTRIX MP Panels for use of all three connectors at one time. Four connector panel positions are possible but only suggested to provide connectivity options for installation locations offering a variety of multi-use needs. Too many connectors plugged in the pocket at one time may keep the lid from completely closing flush.
