Ace Backstage 124 Double Wide Stage Pocket with Standard Lid | Cable Exit: Modified 1-inch, Flange: Flush-Angled Edge

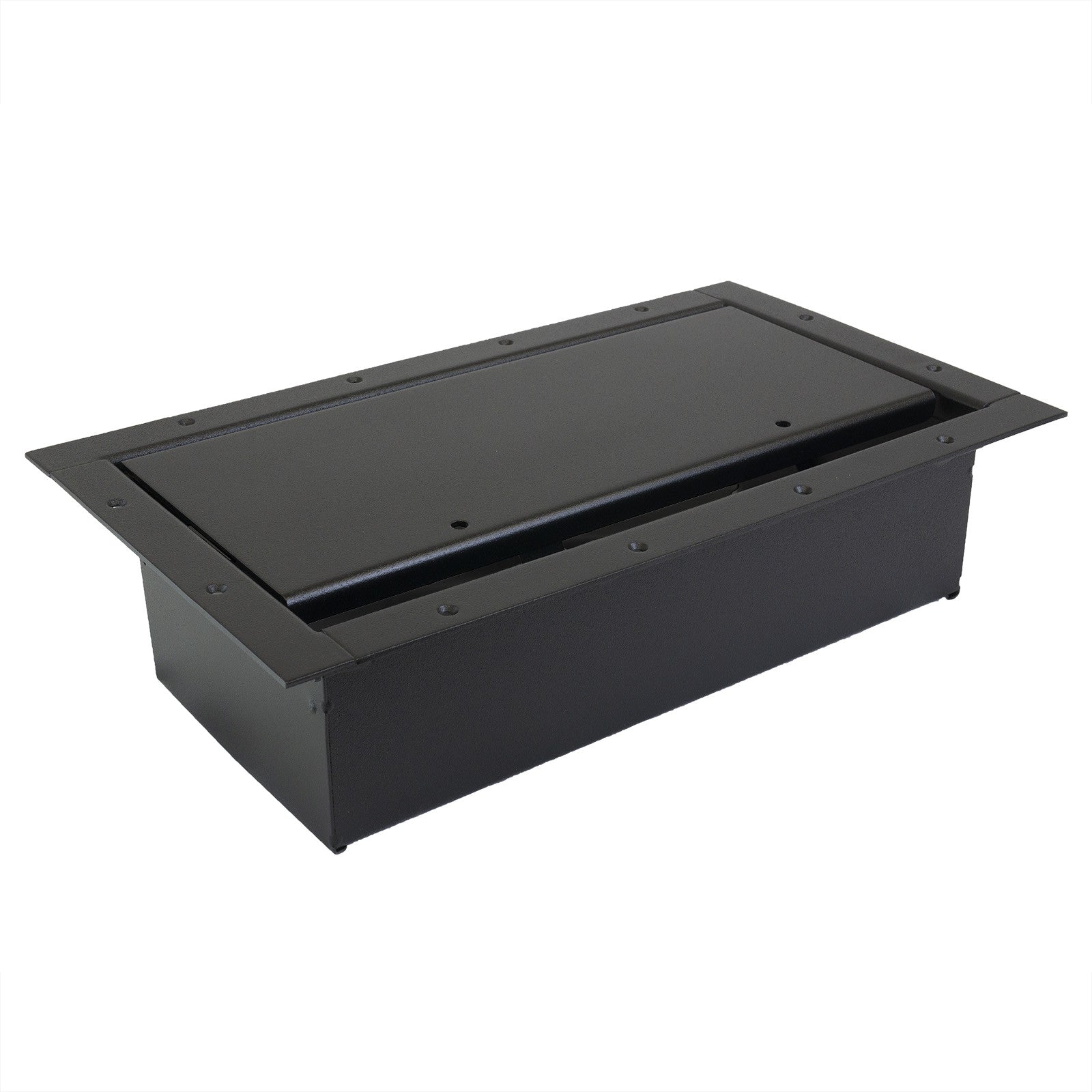

The 124 Double Wide Stage Pocket with Standard Lid from Ace Backstage is a Heavy Duty Double Wide, Slant Panel, Stage Pocket with choice of Lid and Finish.

The slant panel design places connectors upright in the Double Wide Pocket providing additional protection from debris that might accumulate on the floor. With twice the panel room as the Full Pocket, the Double Wide is designed with an open access area so connector panels can be terminated before pocket installation, for best practice consideration.

Connectivity is protected under the Double Wide Pocket lid, and cables neatly emerge onto the stage floor through the 3/8” cable way slot. A unique set of Slot Closures block the cable exit opening when the pocket is not in use.

Hinged lids can be removed when installing the pocket to provide additional panel installation clearance. Available in two modular lengths, Double Wide Pocket lids can be exchanged on site as needed. Pockets can be ordered with lids to increase the size of the cable exit from the standard 3/8” opening to 3/4” or 1” opening (ML), or to allow for carpet installation (CL), or to include locking mechanisms (LL).

CONNECTRIX brand panels are designed for increased capacity over electrical gang sized panel systems and mate with the Double Wide Pocket allowing dual connectivity of high voltage AC and low voltage AV in one pocket. Isolated CONNECTRIX connectors mounted in

CONNECTRIX panels provide optimum accessibility for termination and offer correct indexing for lid clearance when in use. ACE guarantees appropriate placement of connections in ACE Stage Pockets when pockets and CONNECTRIX panels/connectors are ordered together. Welded steel construction and engineered design elements support critical stage loads. The Double Wide Stage Pocket has been load tested to 750 lbs with no permanent deflection.
