Ace Backstage BRK102BBX Super Pocket 6" Deep Steel Back Box

Ace Backstage BRK102BBX Super Pocket 6" Deep Steel Back Box

SoundPro Item: 51030 | Part Number: BRK102BBX

$364.51
$364.51 $364.51
Your Price Sold out
MSRP: $364.51 | MAP: $364.51

Usually ships in 5-7 business days

  • Isolated Voltage Separation Bracket Keeps High And Low Voltage Circuits Safely Divided
  • Modular Three-Phase System Supports Independent Rough-In, Finish, And Connectivity Schedules
  • Compatible With BZ132, BZ232, And BZ332 Bezel And Lid Assemblies Via Predrilled Mounting Flange
  • Combination Knockouts On Opposing Sides Accept Multiple Conduit Trade Sizes
  • CONNECTRIX Panel Brackets Center Connectors For Unobstructed Cable Access
  • UL Listed As Part Of The Super Pocket System For Code-Compliant Installation
  • Tool And Die Fabricated For Modular Conformity And Installation Consistency
Log in or register for YOUR best price

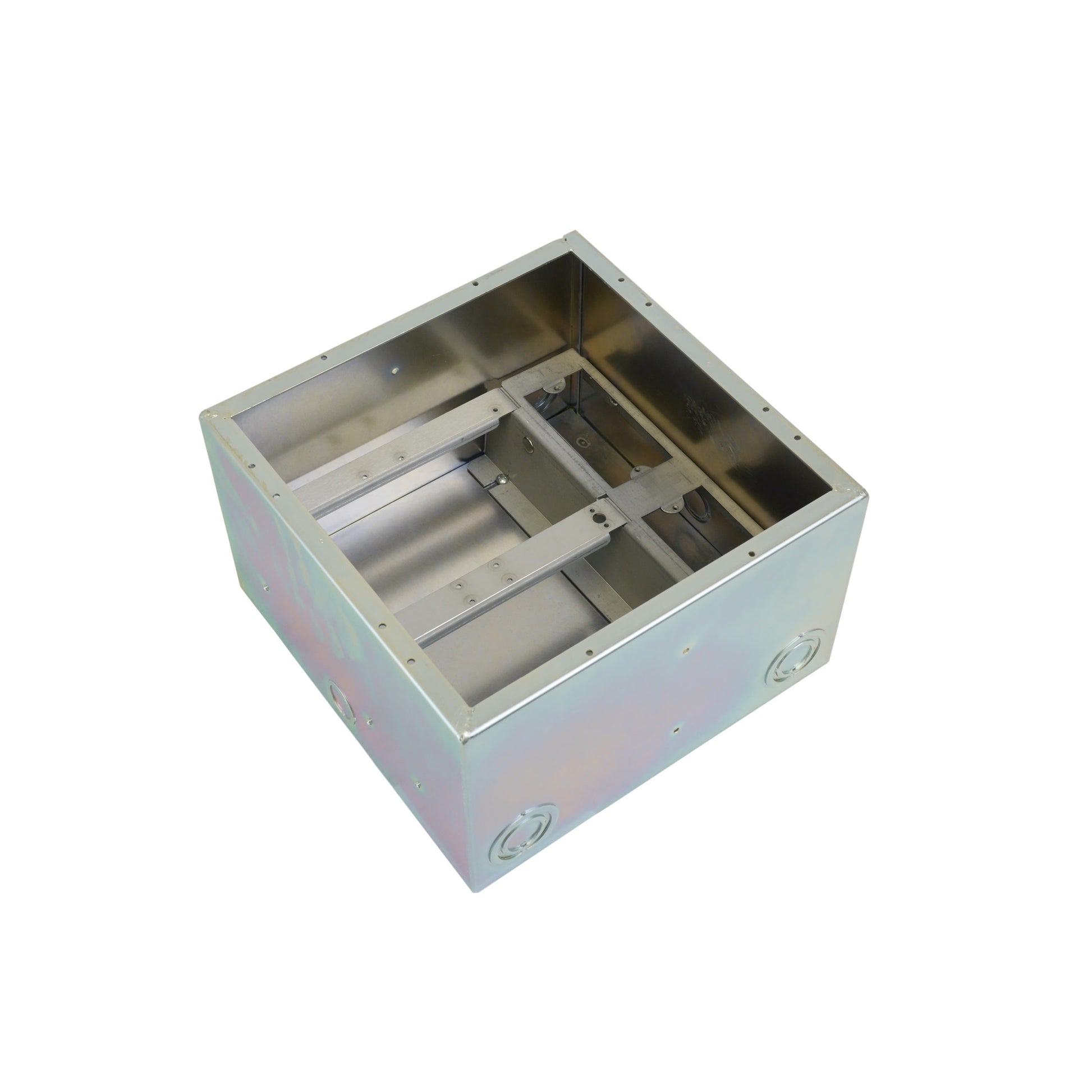

The Ace Backstage BRK102BBX is designed for AV integrators and stage electricians who need a robust, code-compliant floor pocket body capable of handling both high and low voltage connections in a single enclosure. The welded 14-gauge steel construction and electrodeposited clear zinc finish deliver the structural integrity demanded by permanent installation environments, including theaters, houses of worship, convention centers, and broadcast studios.

This back box is the foundation of the Super Pocket System, a three-part modular assembly that separates rough-in, finish, and connectivity phases of construction — allowing each trade to work independently and on schedule. The built-in isolation bracket physically separates high and low voltage circuits within the same pocket, satisfying dual-application requirements without additional hardware. Panel brackets position CONNECTRIX panels so connector ends remain unobstructed and accessible after the finished floor is installed.

Combination knockouts on opposing sides accept conduit from ½" through 1¼" trade sizes, while single-position knockouts on remaining sides cover ½" and ¾" options — giving installers maximum routing flexibility regardless of slab orientation. The ½" predrilled mounting flange indexes directly with BZ132, BZ232, and BZ332 bezel and lid assemblies, ensuring precise alignment between the below-floor body and above-floor finish components.

Downloads

View full details

Specifications

Certifications
UL Listed
Yes
Dimensions
Floor Cut Out
10" x 10"
Under Floor Depth
6"
Panel Bracket Height From Bottom
2.25"
Conduit Knockout Options (Combination)
½", ¾", 1", 1¼"
Conduit Knockout Options (Single)
½", ¾"
Construction
Steel Gauge
14 ga
Steel Construction
Welded
Finish
Electrodeposited Clear Zinc
