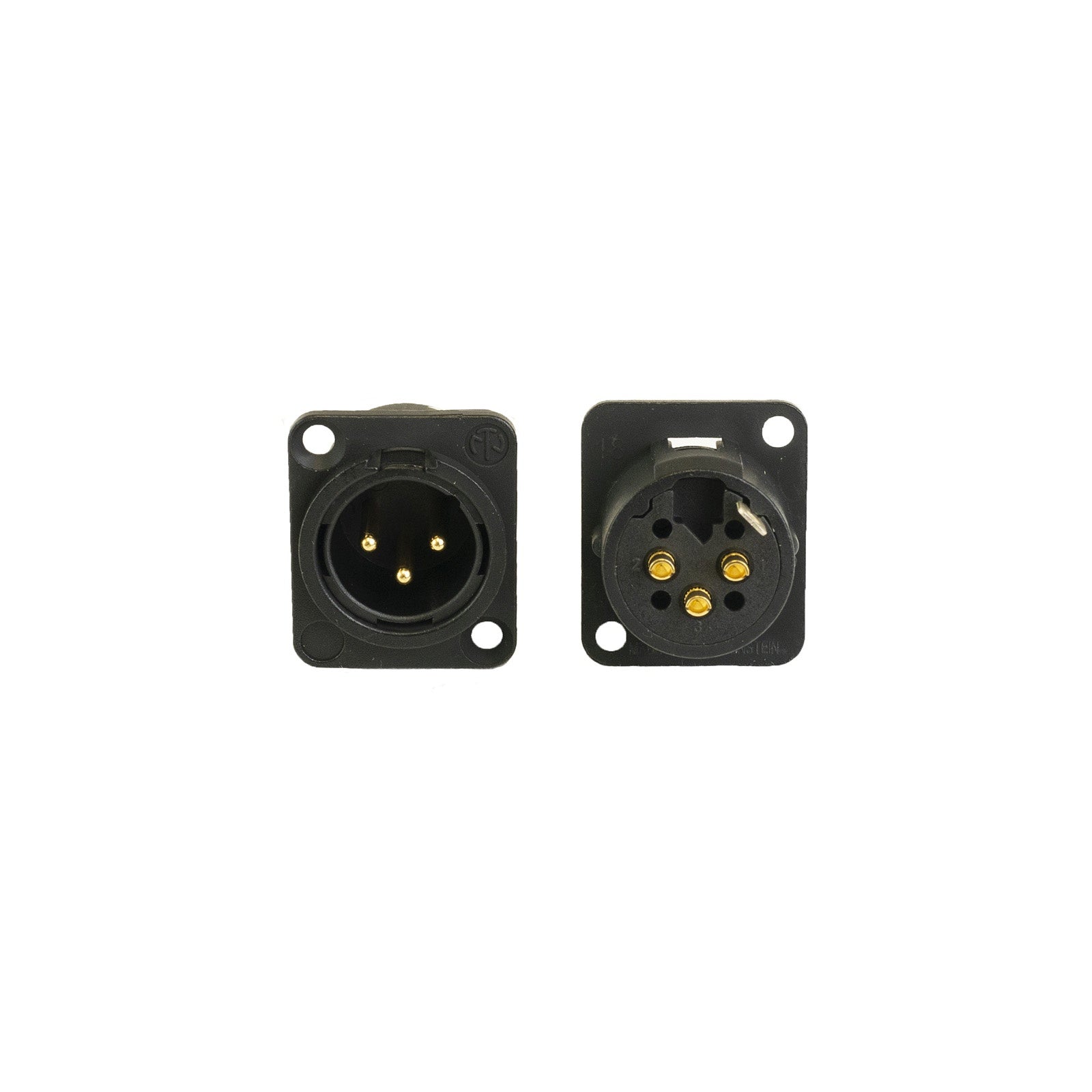

Ace Backstage C-15120 3-Pole Male XLR Panel Receptacle Gold Contacts
Ace Backstage C-15120 3-Pole Male XLR Panel Receptacle Gold Contacts
SoundPro Item: 21080 | Part Number: C-15120
Usually ships in 5-7 business days
- Gold-Plated Contacts Resist Oxidation For Long-Term Signal Reliability
- Locking D-Series Panel Mount Prevents Accidental Disconnection In Fixed Installs
- Solder Cup Termination Enables Permanent, Hand-Wired Custom Panel Builds
- Universal D-Size Housing Fits Standard Cutouts Without Chassis Modification
- UL 94 V-0 Flammability Rating Meets Commercial Install Compliance Requirements
The Ace Backstage C-15120 is a 3-pole male XLR panel receptacle built for integrators and production technicians who need dependable, long-service connections in custom wiring panels, stage boxes, and fixed installations. The gold-plated contacts resist oxidation and maintain consistent signal transfer in environments where standard silver-contact connectors degrade over time from humidity or repeated mating cycles.
Based on the Neutrik NC3MD-L-B-1, this connector uses a universal D-series black metal housing that drops into standard D-size panel cutouts, making it a direct replacement or upgrade in existing installations without chassis modification. The locking panel mount design and solder cup termination are suited to permanent wiring applications where pull-out resistance and hand-soldered reliability are priorities — including broadcast infrastructure, theatrical audio systems, and touring utility panels.
With a UL 94 V-0 flammability rating and a wide operating temperature range, the C-15120 meets the environmental demands of professional audio installations. Its IP40 protection and IEC 61076-2-103 compliance make it a credible choice for commercial AV integrators specifying connectors that must satisfy project documentation requirements.
Specifications
