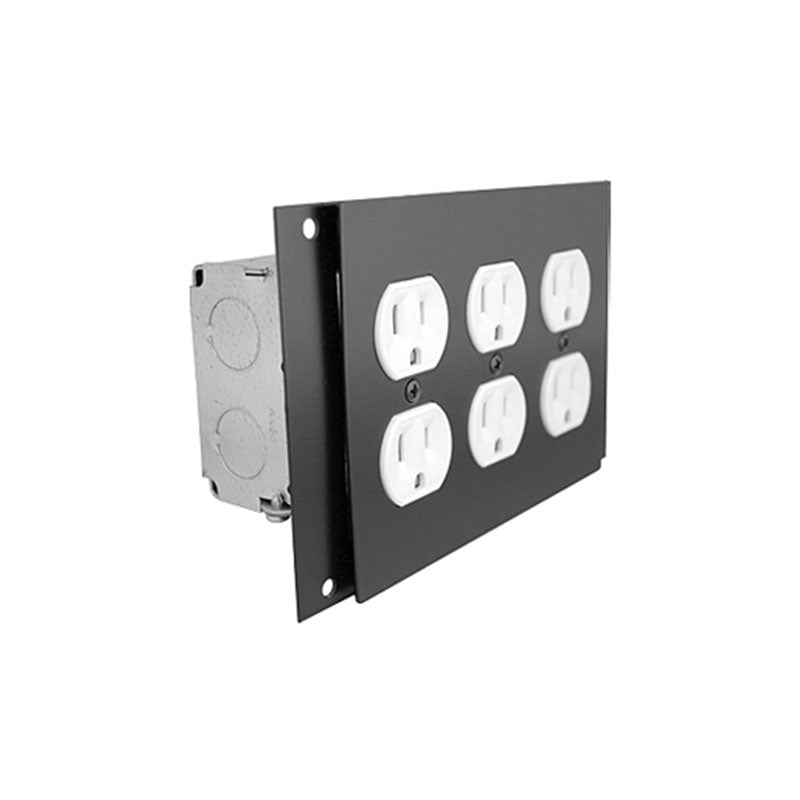

Ace Backstage CONNECTRIX PNL-120 Full Panel with Isolated Switchbox | FP3E

The CONNECTRIX PNL-120 Full Panel with Isolated Switchbox series is engineered for theatrical and live production integrators who need a reliable, configurable AC power panel solution for ACE Stage Pockets. Each assembly includes a mounting panel, cover plate, and an isolating switchbox that allows both high and low voltage connections to share a single dual-application Stage Pocket — a practical advantage in installations where pocket real estate is limited and clean separation of circuits is essential.

Panels are CNC machined from 6061-T6 aluminum alloy, which preserves a flat, undistorted finish that punched panels cannot match. An oven-cured black powder coat finish resists scratching and is applied uniformly across each panel before it leaves the facility. Six self-tapping screws index the panel precisely to any standard ACE Stage Pocket for straightforward installation once an electrical contractor has assembled the receptacle. Receptacles are not included and are contractor-supplied to meet project-specific code requirements.

Custom header labeling is available in three days or less at a significantly lower cost than fabricating a custom panel from scratch, making this series a practical choice for production facilities, touring systems, and permanent installed venues that require organized, identifiable power distribution at stage level.
