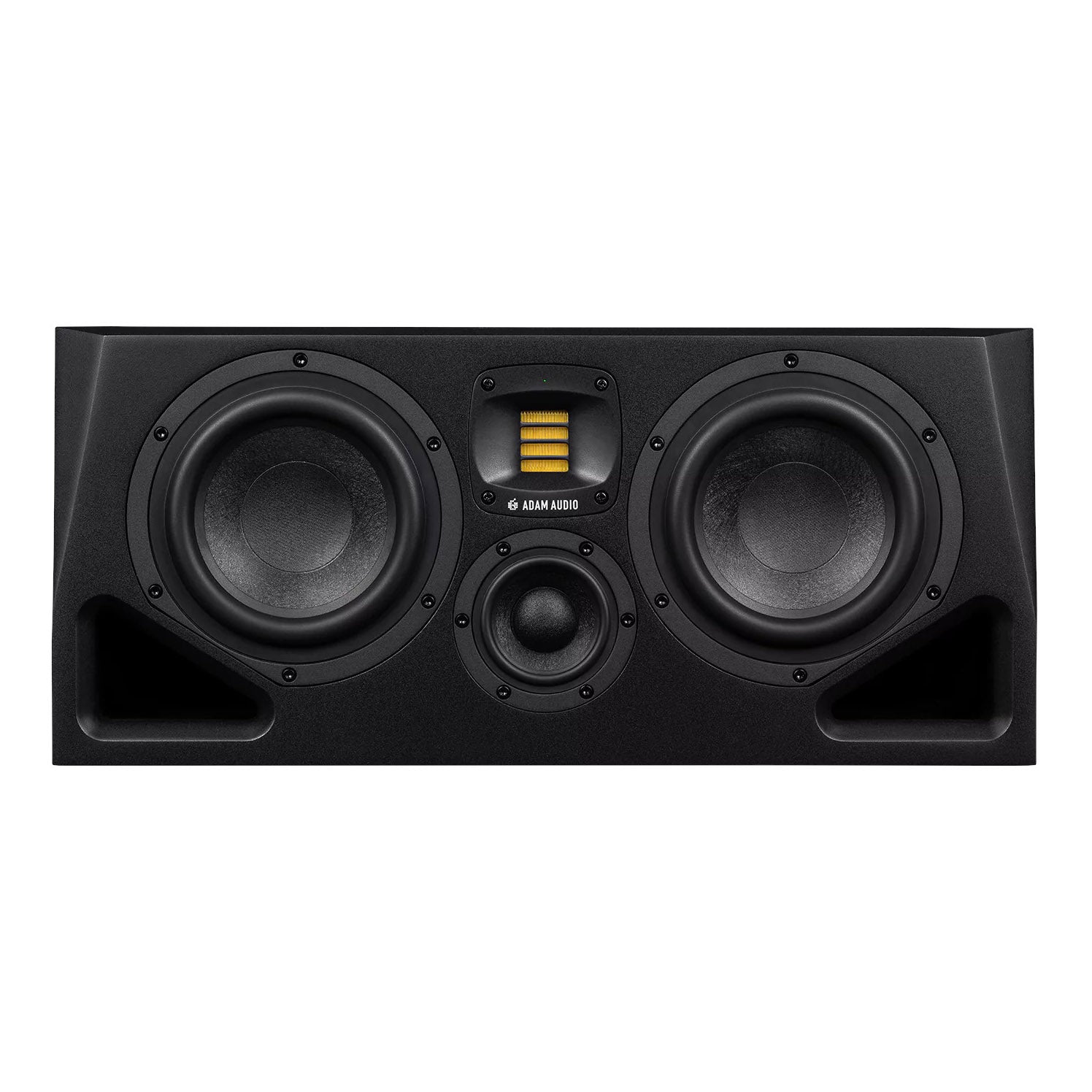

• ADAM Audio A77H 3-Way Dual 7-Inch Powered Studio Monitor

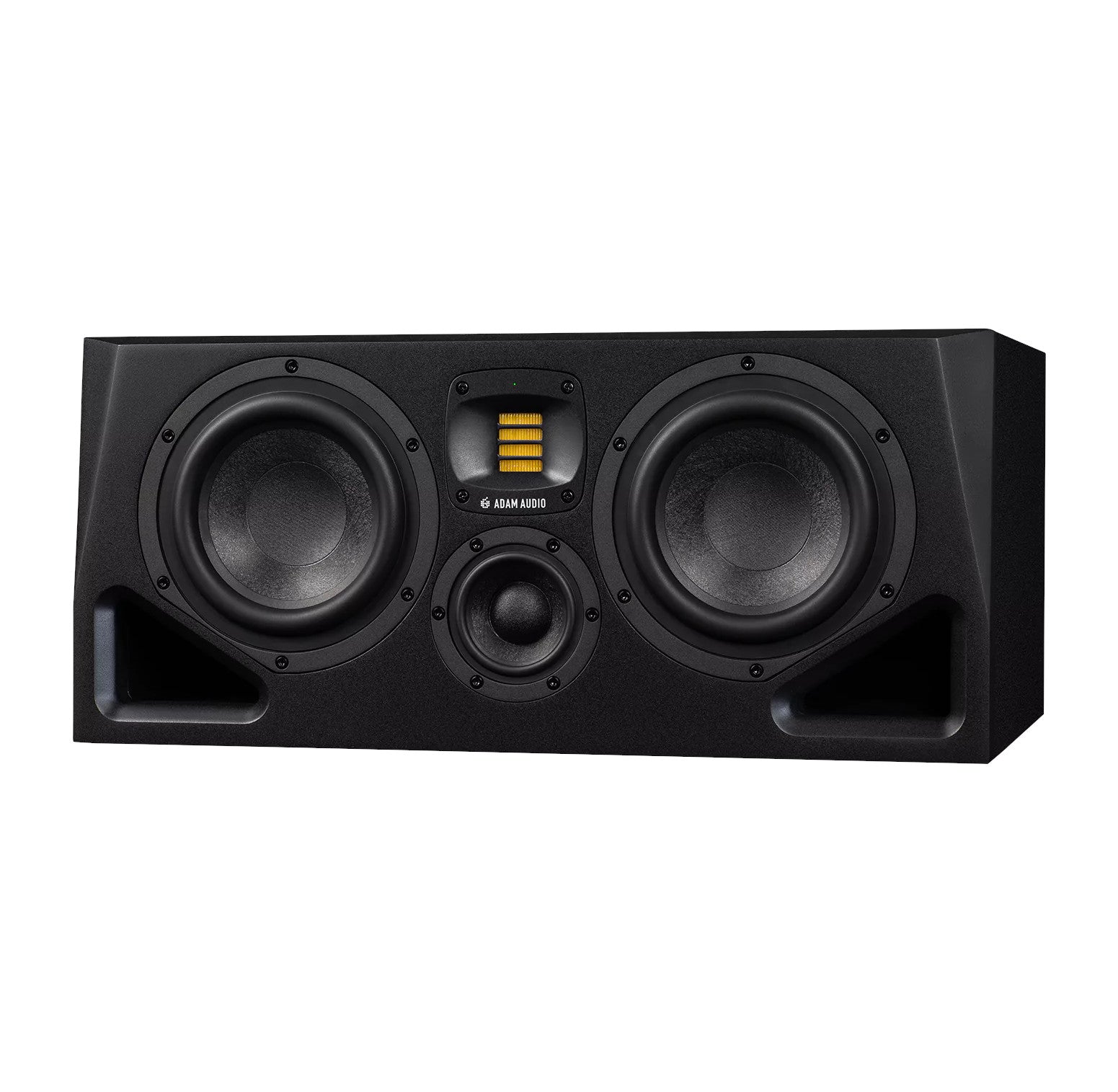

  • ADAM Audio A77H 3-Way Dual 7-Inch Powered Studio Monitor front side

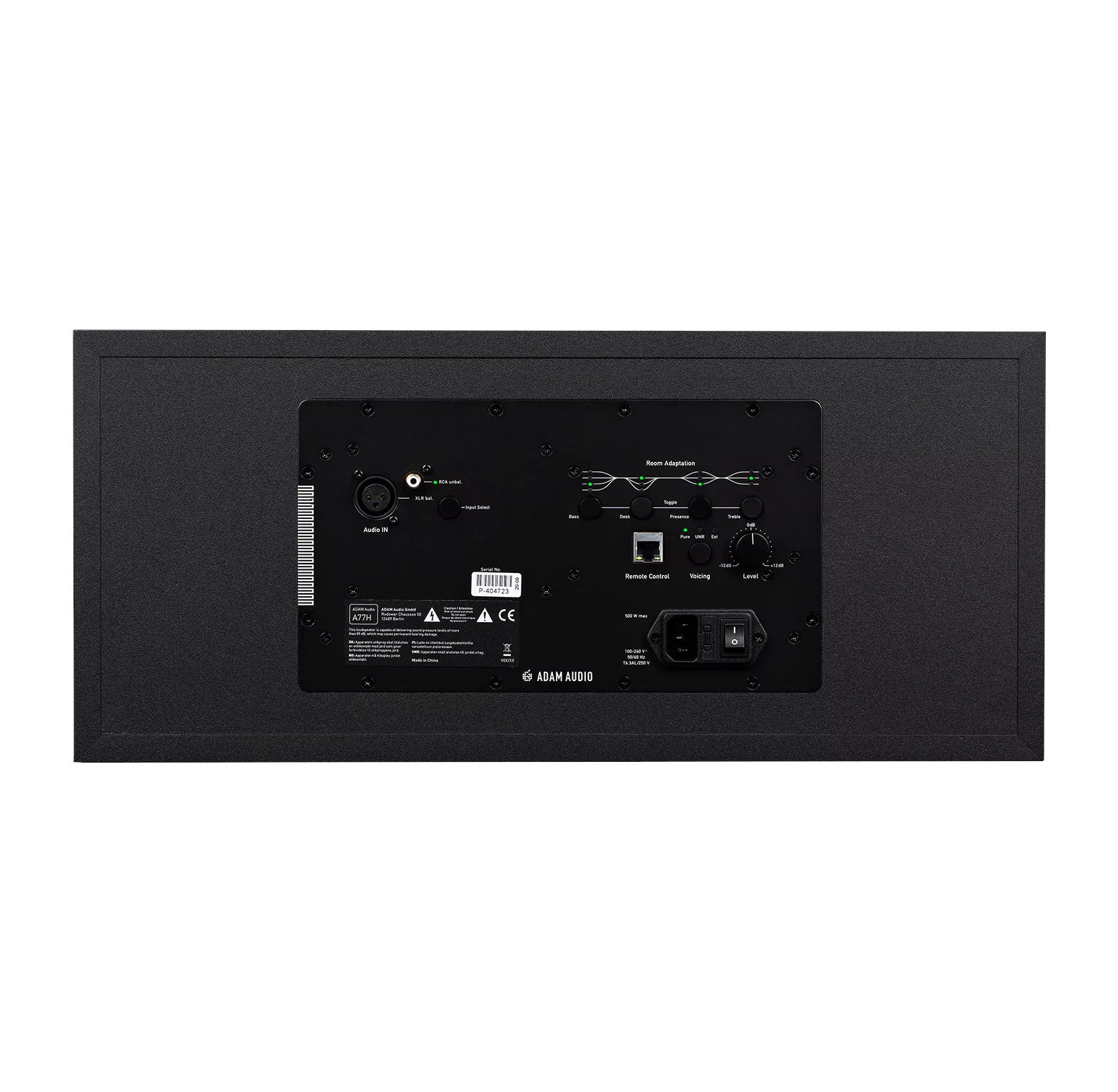

  • ADAM Audio A77H 3-Way Dual 7-Inch Powered Studio Monitor back
1 3

ADAM Audio A77H 3-Way Dual 7-Inch Powered Studio Monitor

ADAM Audio A77H 3-Way Dual 7-Inch Powered Studio Monitor

SoundPro Item: 132529 | Part Number: A77H

$1,599.99
$1,599.99 $1,599.99
Your Price Sold out
MSRP: $1,599.99 | MAP: $1,599.99

Usually ships in 5-7 business days

  • German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
  • 3.5" DCH Midrange Driver
  • 2 x 7'' Woofer (Multi-Layer Mineral)
  • Cumulated Amp. Power Peak: 340W
  • A Control Remote software: control DSP-based functionality remotely and in real time over ethernet
  • Rotatable HPS waveguide and X-ART tweeter
  • Automated room correction with Sonarworks
  • 5 year warranty
Log in or register for YOUR best price

The A77H is a true three-way midfield monitor that capitalizes on the latest ADAM Audio technologies to deliver a rich, spacious, and enveloping sound.

Incorporating two 7-inch woofers, a midrange driver, and ADAM Audio’s X-ART tweeter, the A77H delivers an ultra-wide frequency range. The addition of the midrange driver helps produce clear sound in the most sensitive range of human hearing. Rotatable HPS waveguide technology and onboard DSP allow you to tune the sound for your precise requirements.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
9.25x20.8x13.75"
Electrical
AC Input Voltage
100 - 240 V, 50/60 Hz
Audio
Input Impedance
9 kohm / 3.3 kohm
Input Sensitivity
0 dBu = 100 dB SPL at 1 m @ 0 dB level setting
Power Rating
500 W max
Connectivity
Max Input Level
+19 dBu
Networking Connector
RJ45
Input Selection
balanced, unbalanced
Construction
Cabinet Material
vinyl wrapped MDF and painted MDF front panel
Controls
Communication Protocol
OCA using standard IP data
Compatibility
Third-party Calibration Compatibility
Import from Sonarworks SoundID Reference
Shipping
Weight
37.7 pounds
Identifiers
Connection Type
Ethernet
General
Analog
XLR, RCA
Amplification
Woofer, Midrange, Tweeter
Drivers
Woofer, Midrange, Tweeter
Crossover Frequencies
400Hz, 300kHz
AD Converter
24-bit
Internal Sample Rate
96 kHz
Delay Range, Resolution
0 - 10 ms, 0.1 ms
Protection
independent peak and thermo limiters for each driver, and amplifier thermo limiters
Control Software
A Control (Windows and MacOS available)
Room Adaption Options
Backplate, Extended, Sonarworks SoundID Reference integration
Advanced Room Adaptation
6 x PEQ, Level, Delay
Level
-12dB to +12dB
Voicings
Pure, UNR
Control Options (via Backplate)
Room Adaption
Cabinet Design
dual front ported
Mounting Options
threaded inserts on the bottom of the cabinet (4 x M8)
Operating Conditions
-10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
Indicators
Display
front panel multi-color LED
