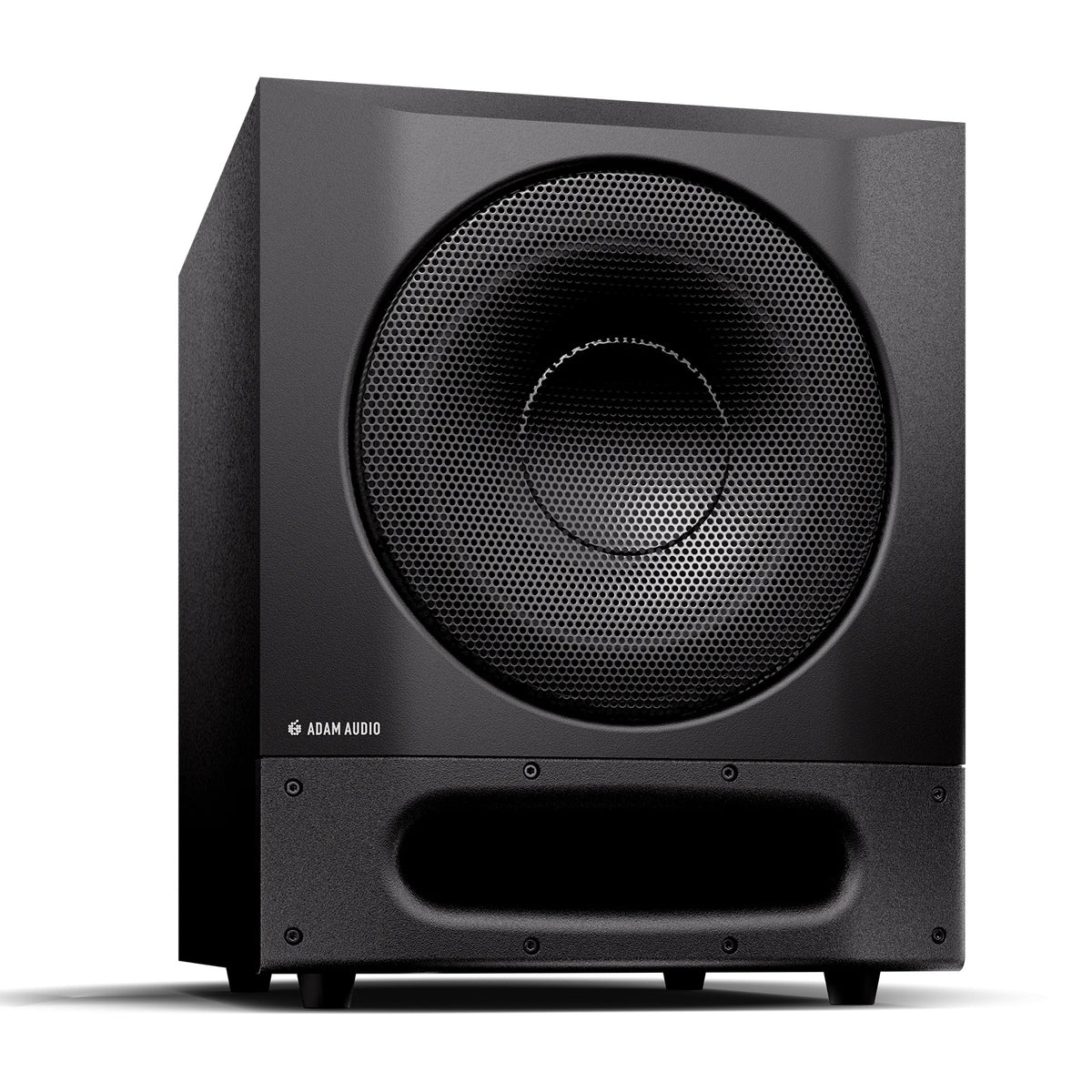

• Sub10 Pro 10-inch active studio subwoofer front right three-quarter view showing perforated steel grille and front port slot, Adam Audio

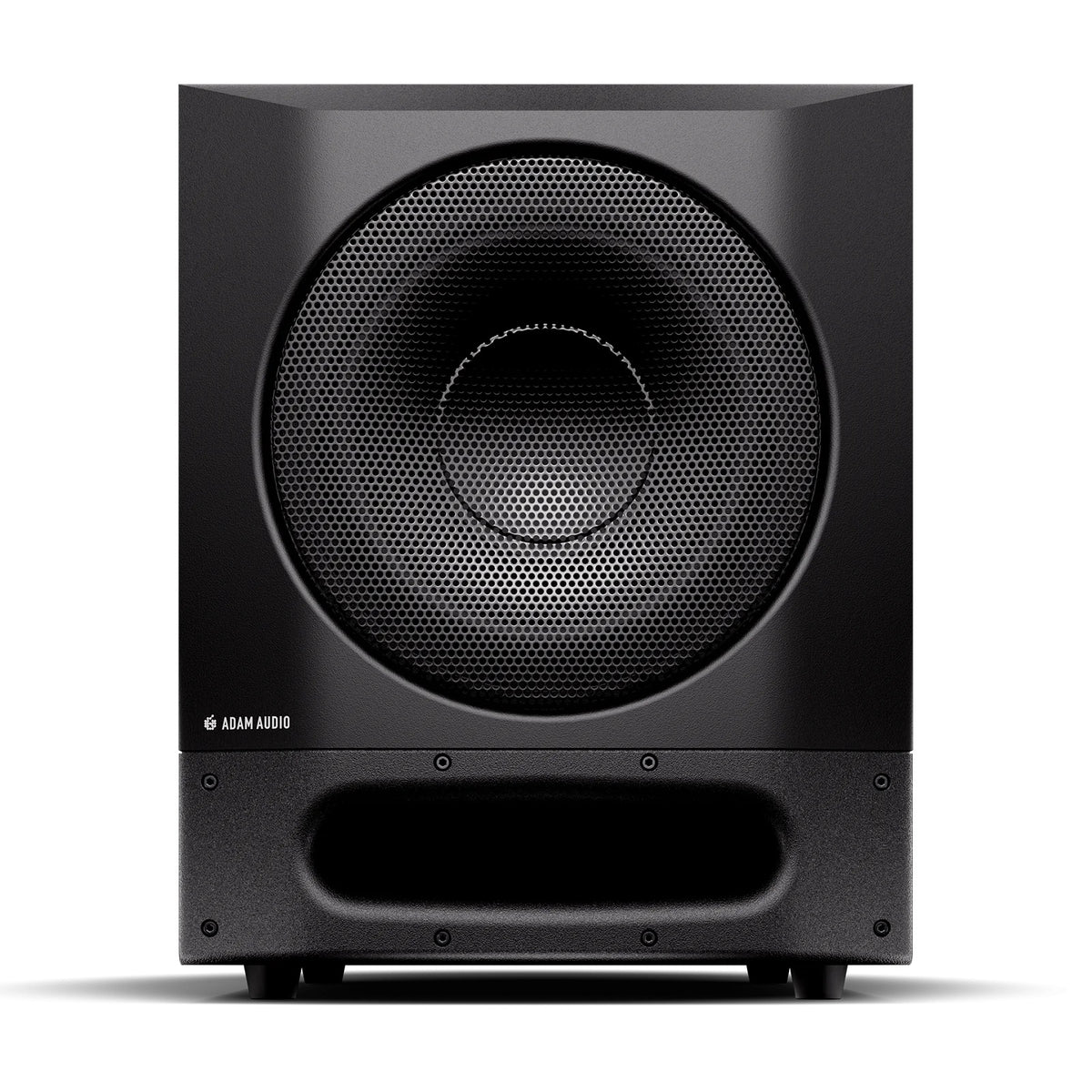

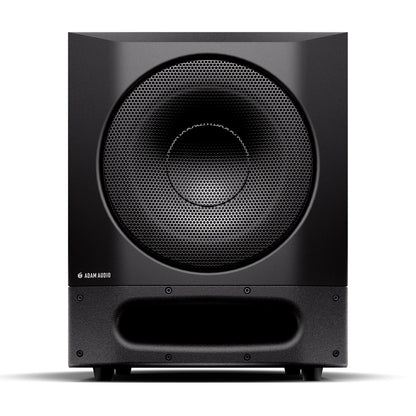

  • Sub10 Pro 10-inch powered studio subwoofer straight-on front view with hex-pattern driver grille and front-firing bass port, Adam Audio

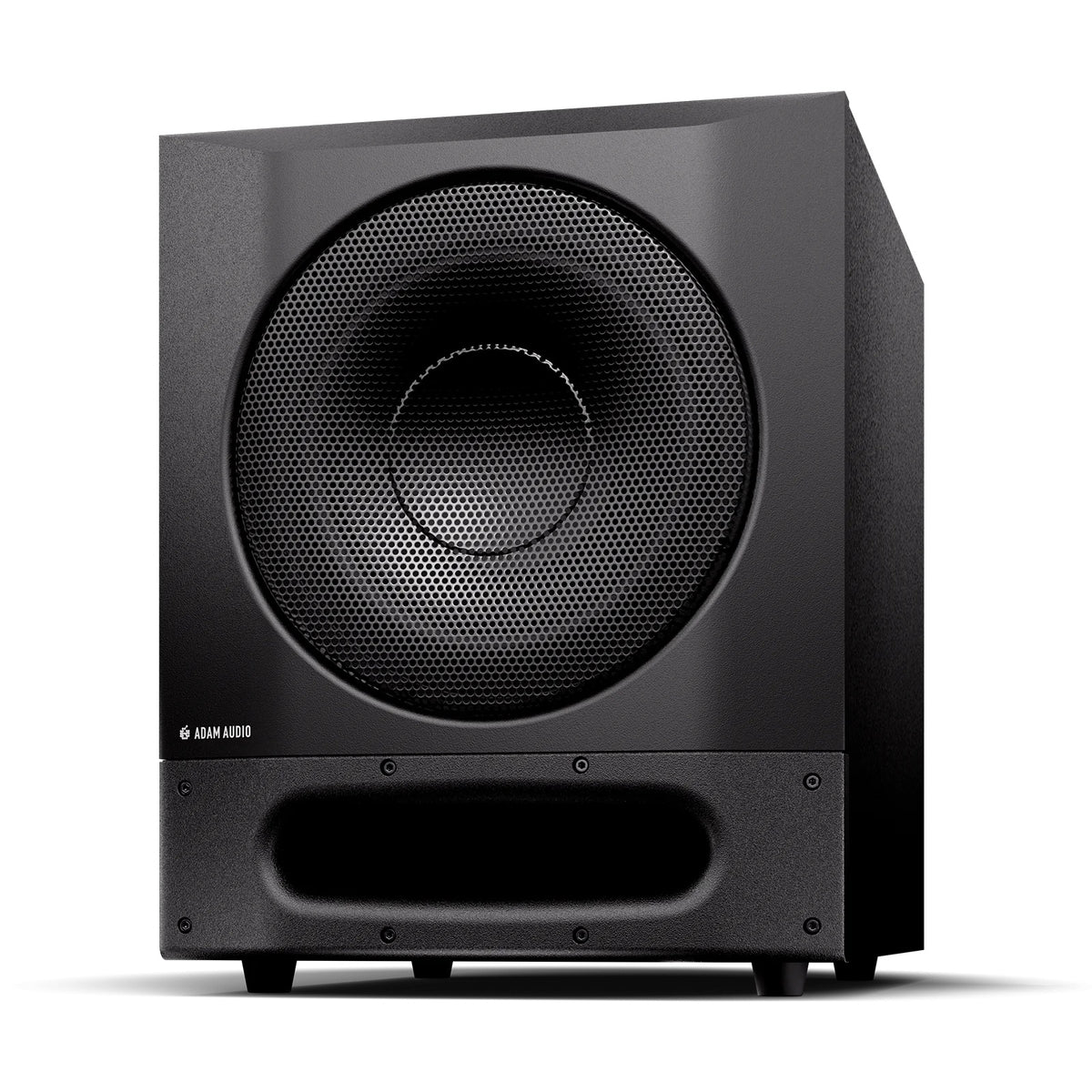

  • Sub10 Pro active studio subwoofer front left three-quarter view showing cabinet depth and isolation feet, Adam Audio

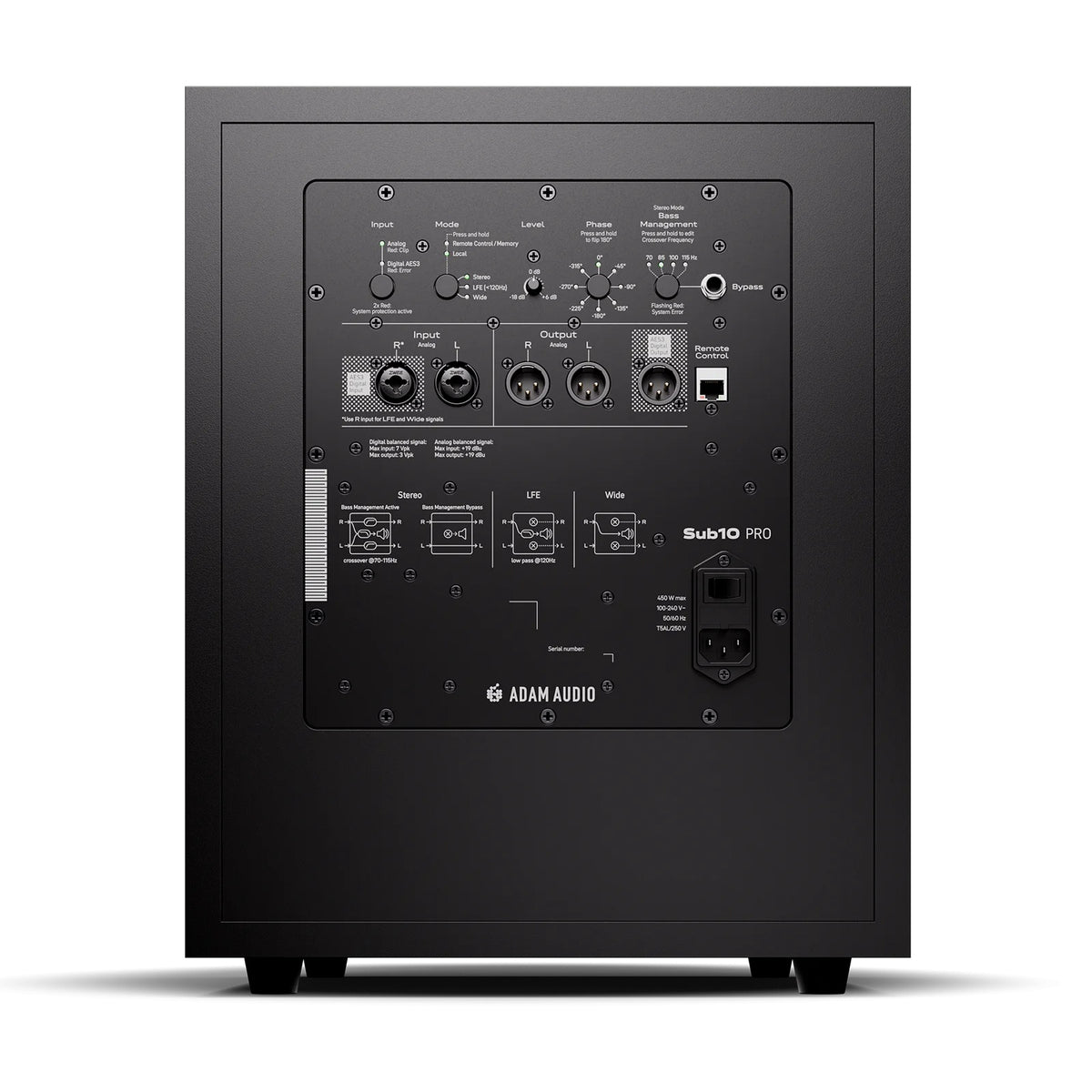

  • Sub10 Pro rear amplifier panel with XLR analog in/out, AES3 digital input, RJ45 remote control port and DSP mode, level, phase and bass management controls, Adam Audio
1 4

Adam Audio Pro Active Studio Subwoofer With DSP Ethernet Control | 10"

Adam Audio Pro Active Studio Subwoofer With DSP Ethernet Control | 10"

SoundPro Item: 212462 | Part Number: AMS-SUB10-PRO

$1,499.99
$1,799.99 $1,499.99
Your Price Sold out
MSRP: $1,799.99 | MAP: $1,499.99

Usually ships in 5-7 business days

  • Networked DSP Control Through ADAM Control Simplifies Room Calibration And Firmware Updates
  • Sonarworks SoundID Reference Calibration Profiles Can Be Loaded To Correct Room Response
  • Stereo, LFE, And Wide Modes Cover Conventional, Immersive, And Full-Range Monitoring
  • AES3 Digital And Balanced Analog XLR/TRS Inputs Fit Pro Studio Signal Chains
  • Manual Time Alignment And Parametric EQ Let You Tune The Sub To The Room
  • FEA-Optimized Bass Port Reduces Distortion At High Output Levels
  • Wooden Cabinet And Metal Grille Provide Durability For Daily Studio Use
Log in or register for YOUR best price

For project studios, post suites, and mastering rooms building a compact monitoring system, this subwoofer line adds controlled low-frequency extension that can be verified and adjusted from a computer. Because the unit sits on the network, engineers can recall room correction without reaching behind the cabinet, which matters when a control room is re-verified after a gear change or a client move.

Two woofer sizes let you match the sub to the main monitors and the room volume, from a nearfield stereo pair to a larger multichannel layout. Whether the signal path is analog or fully digital, the sub drops in cleanly, and onboard bass management keeps the mains and sub working together. Compared with analog-only subs, networked processing and third-party calibration support give integrators a repeatable way to deliver consistent results across multiple rooms.

Facilities that run daily sessions get a warranty that extends to five years with product registration, which helps with long-term planning and budgeting for multi-room installs. Standardizing on one family also simplifies spares, training, and calibration workflow across rooms.

Downloads

View full details

Specifications

Audio
Frequency Response (-3 dB)
22 - 264 Hz
Frequency Response (-6 dB)
21 - 300 Hz
Max SPL Sine Bursts 50 - 100 Hz (3% THD rms)
106 dBSPL
Max SPL Sine Bursts 25 - 50 Hz (10% THD rms / peak)
102 / 105 dBSPL
Max Peak SPL IEC-Weighted Noise (Full Range / 85 Hz Bass Managed)
114 / 113 dBSPL
Dolby D.A.R.D.T. Max Peak SPL (Full Range / 85 Hz Bass Managed)
113 dBSPL
Crossover Frequencies
70, 85, 100, 115 Hz
Self-Generated Noise (@ 10 cm, Level +6 dB / Wide Mode)
< 20 dB (A)
Woofer Size
10"
Woofer Voice Coil Diameter
45 mm
Woofer Cone Material
Paper
Electrical
AC Input Voltage
100 - 240V, 50/60 Hz
Power Rating
450 W max
Standby Power Consumption
2.5 W
Peak In-Rush Current
6.8 A
Woofer Amplifier Type
PWM
Woofer Amplifier Peak Power (10% THD, Limiter Deactivated)
325 W
Woofer Amplifier RMS Power (1% THD, Limiter Deactivated)
200 W @ 3 Ohm
Performance
AD Converter
24-bit
Internal Sample Rate
96 kHz
Latency
4 ms
Delay Range
0 - 10 ms
Delay Resolution
32-bit
Protection
Independent peak and thermo limiters; Over Current Protection; Over Temperature Protection, Under Voltage Protection
Connectivity
Analog Input Connectors
2 x XLR / TRS combi
Digital Input Connector
XLR AES3
Analog Output Connectors
2 x XLR
Digital Output Connector
XLR AES3
Input Impedance (Analog)
25 kOhm
Input Impedance (Digital)
110 Ohm
Max Input Level
19 dBu
Networking Connector
RJ45
Network Connection Type
Ethernet
Network Communication Protocol
AES70 / TCP
Footswitch Input
Yes (Bypass), TS-connection latched
Construction
Cabinet Design
Front Fire and front ported
Cabinet Material
Vinyl wrapped MDF and painted MDF front panel
Warranty
5 years (2 years warranty plus 3 years optional with product registration)
Controls
Input Sensitivity
0 dBu = 100 dB SPL at 1 m @ 0 dB level setting, full space
Level
-18 dB to +6 dB
Input Selection
Analog, digital
Phase
0°, -45°, -90°, 135°, 180°, -225°, -270°, -315°
Bass Management
70, 85, 100, 115 Hz
Operational Modes
Remote Control, Local / Stereo, LFE (<120Hz), Wide
Control Software
ADAM Control
Advanced Room Adaptation
4 x PEQ, level, delay
Third-Party Calibration Compatibility
Import from Sonarworks SoundID Reference
Included Items
Included
1x Sub10 PRO, 1x IEC power cable, Quick start guide and safety and warning sheet
Environmental
Operating Conditions
-10° C to +40° C (+14° F to +104° F); <75% RH, non-condensing
