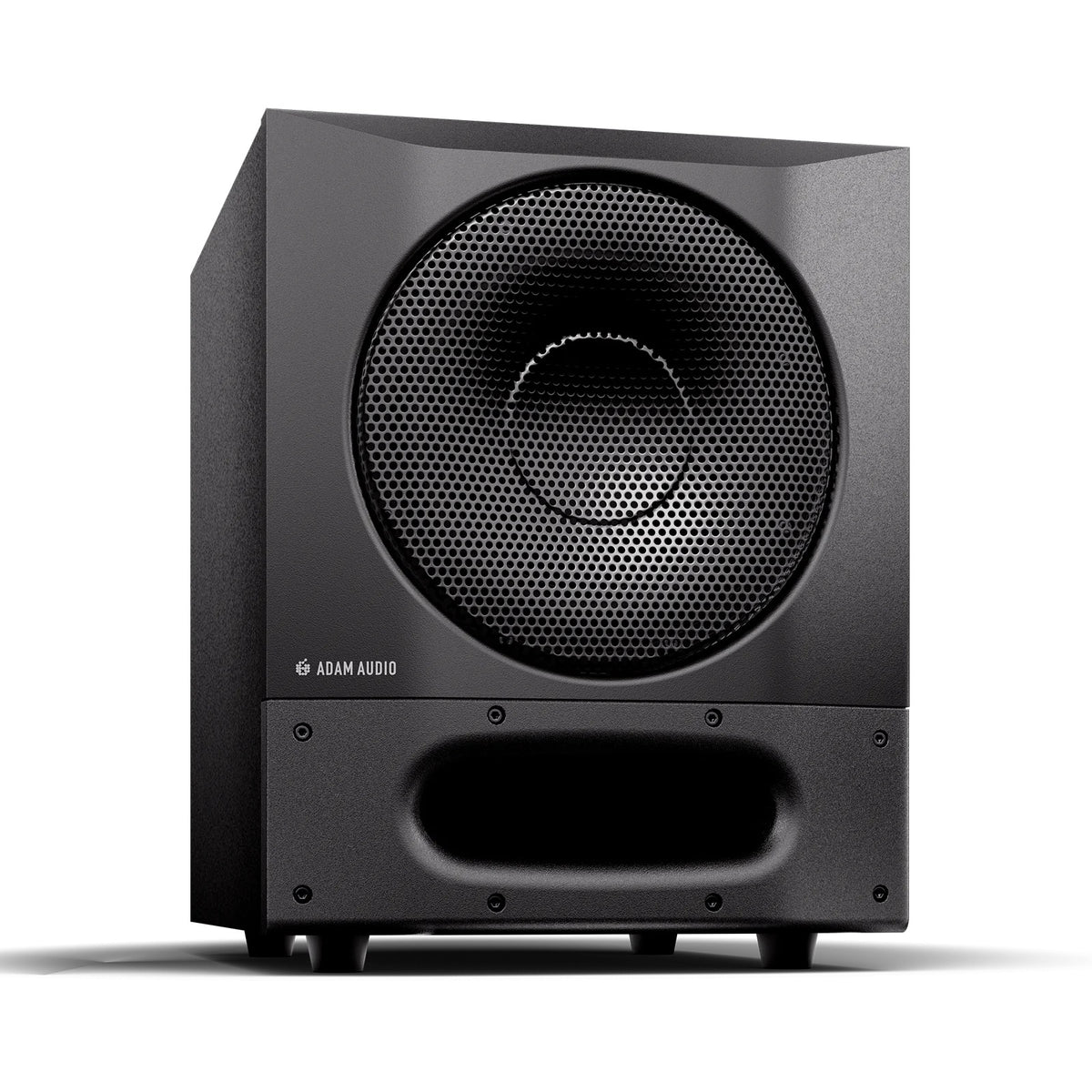

• Sub8 Pro 8-inch active studio subwoofer angled front-right view showing perforated steel grille and front-firing bass port, Adam Audio

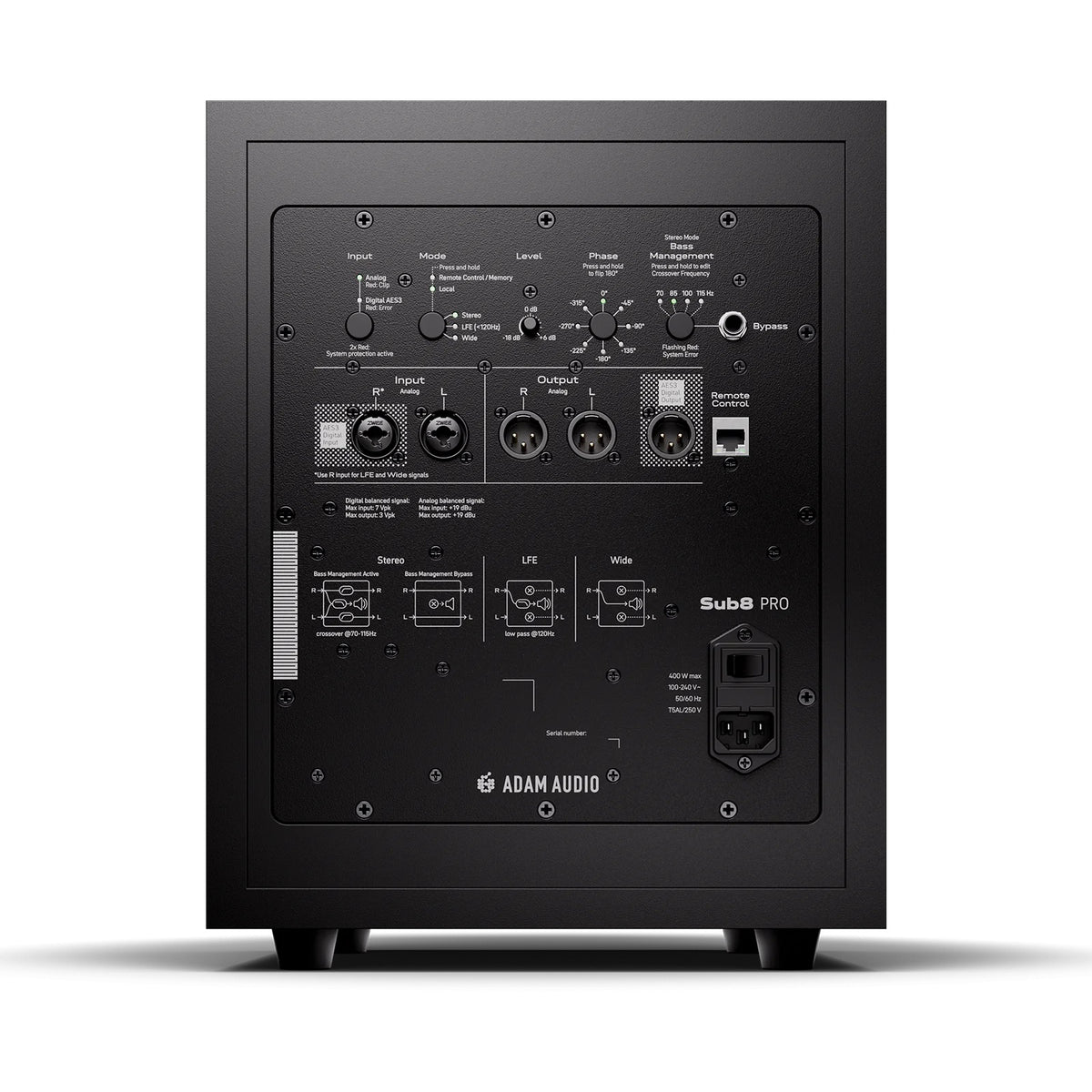

  • Sub8 Pro rear amplifier panel with XLR analog in/out, AES3 input, RJ45 remote control port and phase, level and bass management controls, Adam Audio

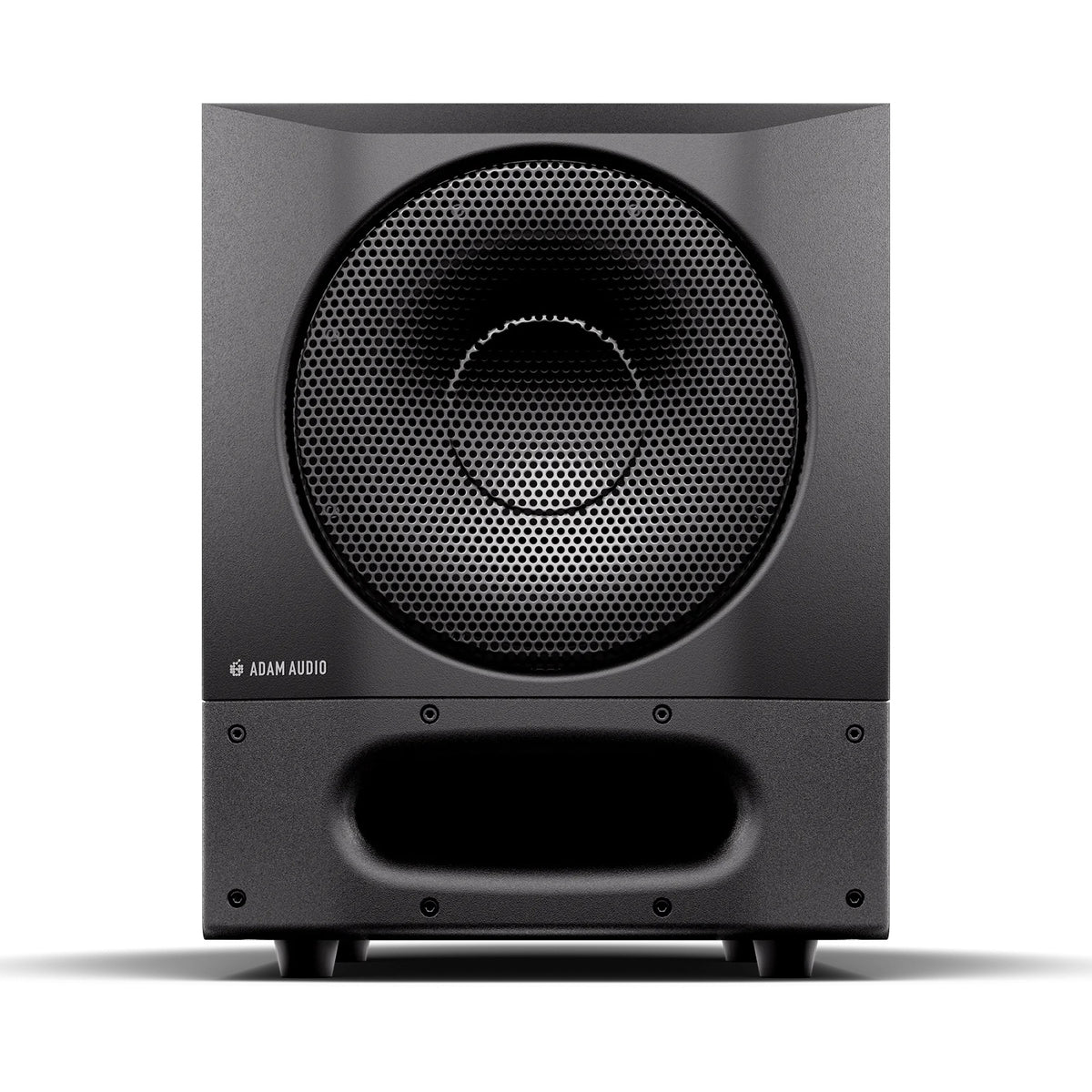

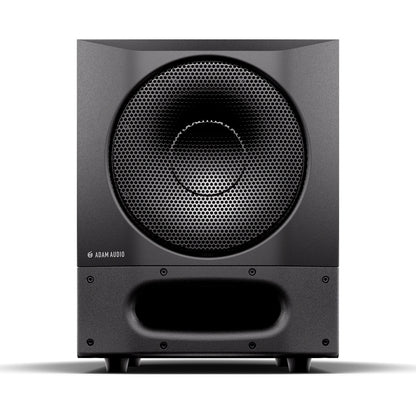

  • Sub8 Pro studio subwoofer straight-on front view with grille-covered 8-inch driver and slotted front port, Adam Audio

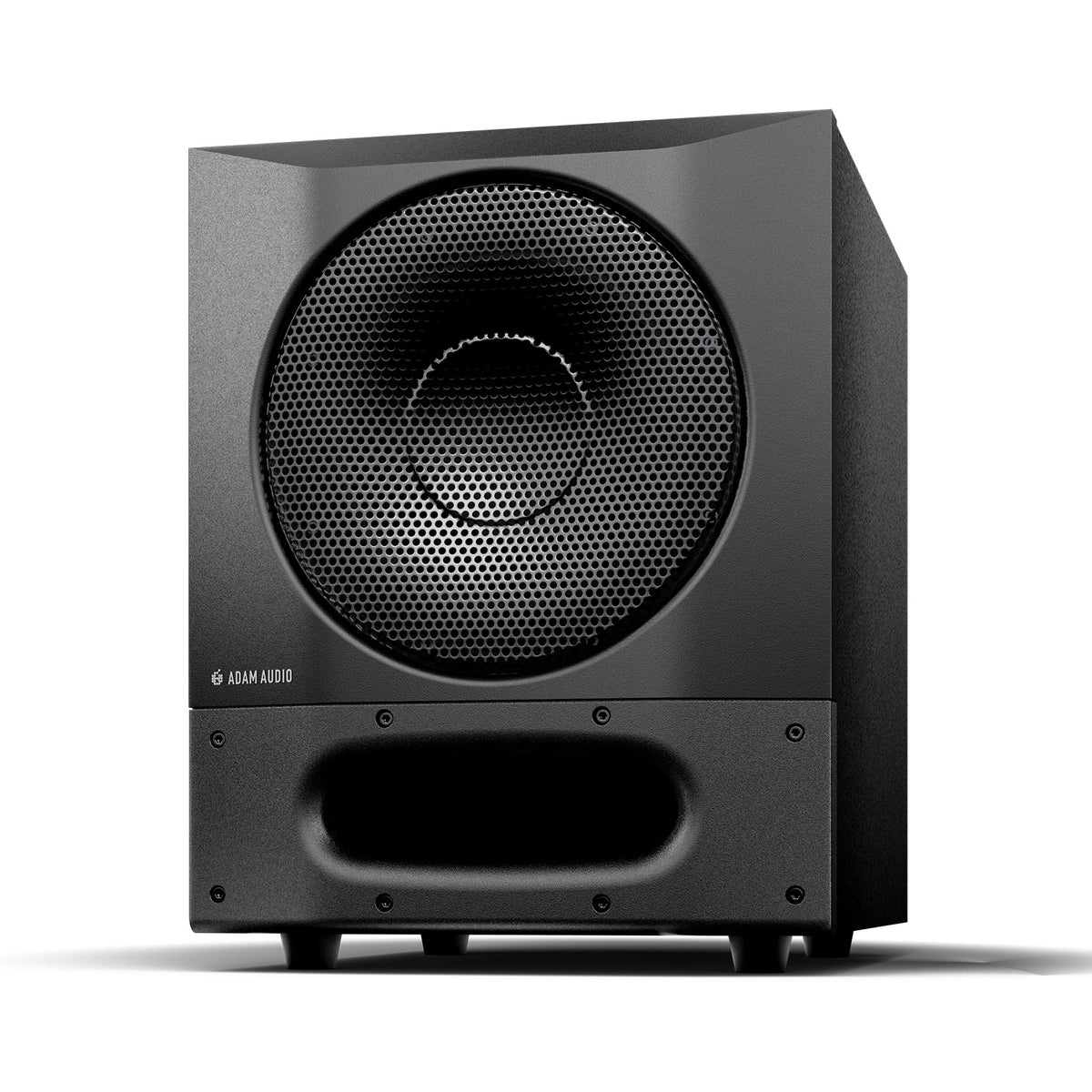

  • Sub8 Pro subwoofer angled front-left view showing textured black cabinet and isolation feet, Adam Audio
1 4

Adam Audio Pro Active Studio Subwoofer With DSP Ethernet Control | 8"

Adam Audio Pro Active Studio Subwoofer With DSP Ethernet Control | 8"

SoundPro Item: 212461 | Part Number: AMS-SUB8-PRO

$1,199.99
$1,439.99 $1,199.99
Your Price Sold out
MSRP: $1,439.99 | MAP: $1,199.99

Usually ships in 5-7 business days

  • Networked DSP Control Through ADAM Control Simplifies Room Calibration And Firmware Updates
  • Sonarworks SoundID Reference Calibration Profiles Can Be Loaded To Correct Room Response
  • Stereo, LFE, And Wide Modes Cover Conventional, Immersive, And Full-Range Monitoring
  • AES3 Digital And Balanced Analog XLR/TRS Inputs Fit Pro Studio Signal Chains
  • Manual Time Alignment And Parametric EQ Let You Tune The Sub To The Room
  • FEA-Optimized Bass Port Reduces Distortion At High Output Levels
  • Wooden Cabinet And Metal Grille Provide Durability For Daily Studio Use
Log in or register for YOUR best price

For project studios, post suites, and mastering rooms building a compact monitoring system, this subwoofer line adds controlled low-frequency extension that can be verified and adjusted from a computer. Because the unit sits on the network, engineers can recall room correction without reaching behind the cabinet, which matters when a control room is re-verified after a gear change or a client move.

Two woofer sizes let you match the sub to the main monitors and the room volume, from a nearfield stereo pair to a larger multichannel layout. Whether the signal path is analog or fully digital, the sub drops in cleanly, and onboard bass management keeps the mains and sub working together. Compared with analog-only subs, networked processing and third-party calibration support give integrators a repeatable way to deliver consistent results across multiple rooms.

Facilities that run daily sessions get a warranty that extends to five years with product registration, which helps with long-term planning and budgeting for multi-room installs. Standardizing on one family also simplifies spares, training, and calibration workflow across rooms.

Downloads

View full details

Specifications

Electrical
Amplifier Type
PWM
Amplifier Peak Power
325 W
Amplifier RMS Power
200 W @ 3 Ohm
Max Power Consumption
400 W
Standby Power Consumption
2.5 W
AC Input Voltage
100 - 240V, 50/60 Hz
Peak In-Rush Current
6,07 A
Audio
Frequency Response @ -3 dB
30 - 228 Hz
Frequency Response @ -6 dB
26 - 300 Hz
Max SPL 50 - 100 Hz at 3% THD (rms)
105 dB SPL
Max SPL 25 - 50 Hz at 10% THD (rms / peak)
101 / 104 dB SPL
Max Peak SPL IEC-Weighted Noise (Full Range / 85 Hz Bass Managed)
112 / 113 dB SPL
Dolby D.A.R.D.T. Max Peak SPL (Full Range / 85 Hz Bass Managed)
112 dB SPL
Crossover Frequencies
70, 85, 100, 115 Hz
Self-Generated Noise
< 20 dB (A)
Input Impedance Analog
25 kOhm
Input Impedance Digital
110 Ohm
Max Input Level
19 dBu
Input Sensitivity
0 dBu = 100 dB SPL at 1 m @ 0 dB level setting, full space
AD Converter
24-bit
Internal Sample Rate
96 kHz
Latency
4 ms
Delay Range
0 - 10 ms
Delay Resolution
32-bit
Connectivity
Analog Input
2 x XLR / TRS combi
Digital Input
XLR AES3
Analog Output
2 x XLR
Digital Output
XLR AES3
Networking Connector
RJ45
Connection Type
Ethernet
Communication Protocol
AES70 / TCP
Control Software
ADAM Control
Controls
Level
-18 dB to +6 dB
Input Selection
analog, digital
Phase
0°, -45°, -90°, 135°, 180°, -225°, -270°, -315°
Bass Management
70, 85, 100, 115 Hz
Operational Modes
Remote Control, Local / Stereo, LFE (<120Hz), Wide
Footswitch
Yes (Bypass), TS-connection latched
Advanced Room Adaptation
4-bands Parametric EQ
Third-Party Calibration Compatibility
Sonarworks
Protection
Independent peak and thermo limiters; Over Current Protection; Over Temperature Protection, Under Voltage Protection
Construction
Woofer Basket Diameter
8"
Woofer Voice Coil Diameter
35 mm
Woofer Cone Material
Paper
Cabinet Design
Front firing and front ported
Cabinet Material
Vinyl wrapped MDF and painted MDF front panel
Operating Conditions
-10° C to +40° C (+14° F to +104° F); <75% RH, non-condensing
Warranty
5 years (2 years warranty plus 3 years optional with product registration)
Included Items
1x Sub8 PRO, 1x IEC power cable, Quick start guide and safety and warning sheet
