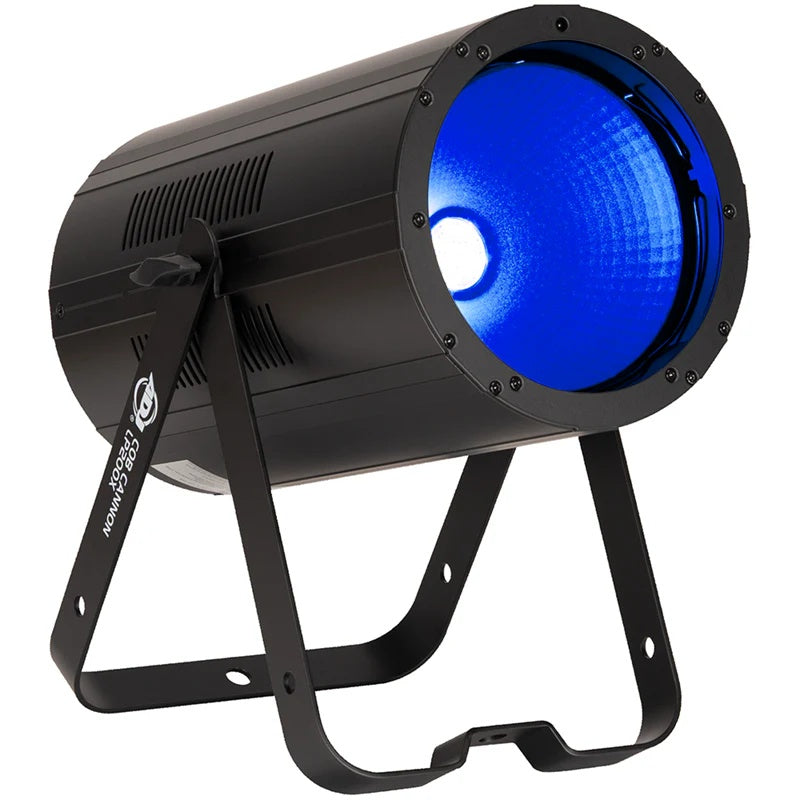

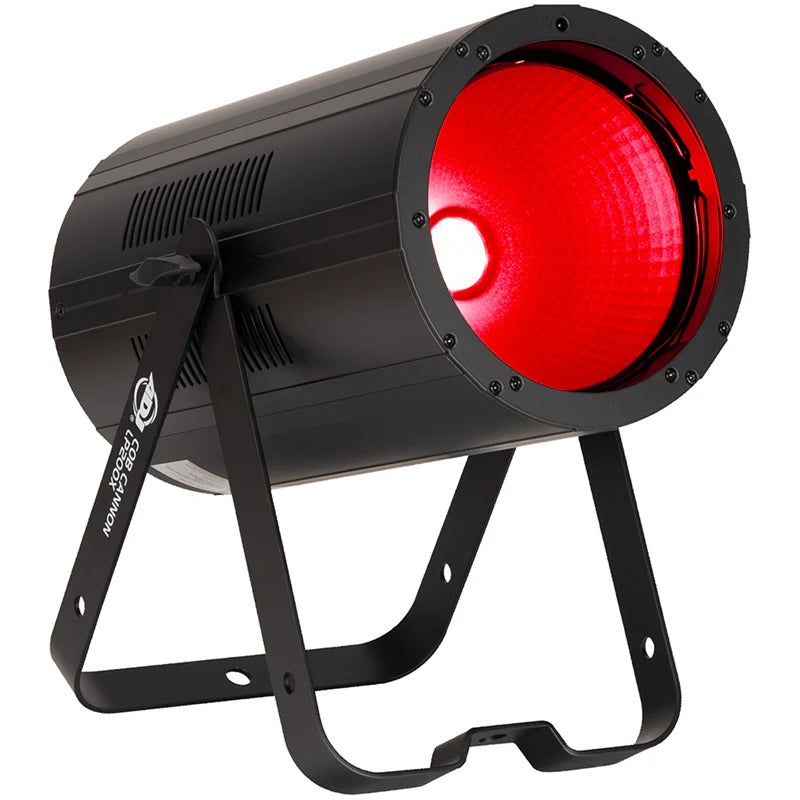

Specifications
OPTICAL
Light Source
1x 200-Watt COB (Chip on Board), RGBAL (Red, Green, Blue, Amber Lime), LED Engine
LED Engine Life Rating
Approximately 50,000 hrs.
CRI
>90

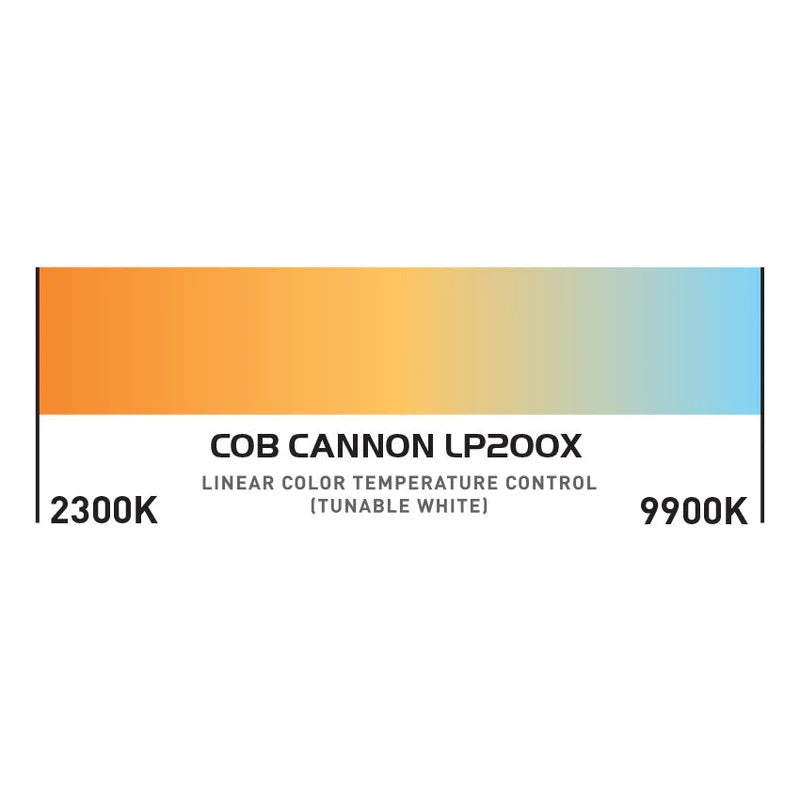

Tunable White Color Temperature
2300~9900K
Beam Angle
80-degree

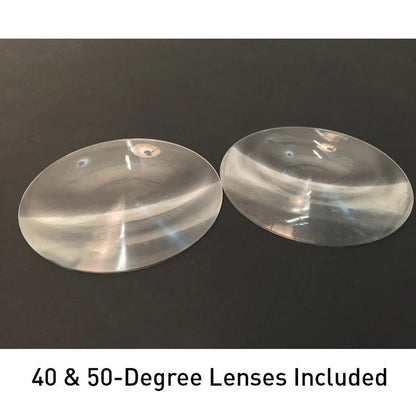

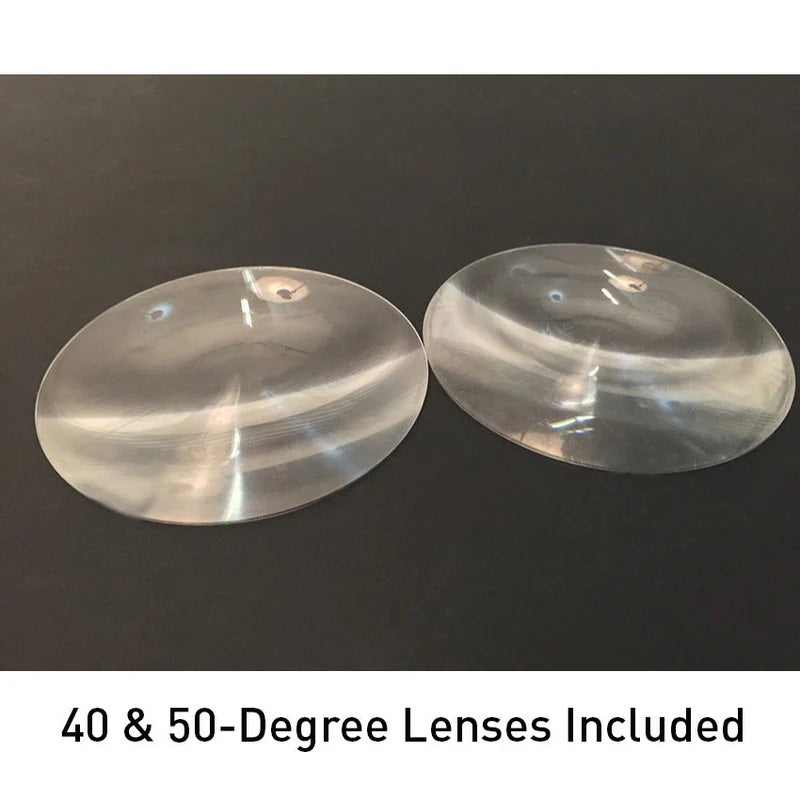

Lens Options Included
40-degrees, 50-degrees
FEATURES
Wireless Management System
Embedded Aria X2 Wireless Management System
Operating Modes
Primary / Secondary Mode
CONTROL
DMX Channel Modes
10 DMX Channel modes (5CH, 8CH-A, 8CH-B, 9CH, 10CH-A, 10CH-B, 12CH, 13CH, 16CH, 20CH)
Color Temperature Control
Linear color temperature control via DMX
Color Temperature Presets
Built-in color temperature presets accessible via DMX
Color Macros
64 built-in color macros
Display
4-button OLED digital DMX display on rear panel
Remote Control Compatibility
Compatible with the ADJ UC IR remote control (included)
Effects
LED pulse and strobe effect
Electronic Dimming
0 - 100%
Dim Modes
6 selectable Dim Modes
Dim Curves
4 selectable Dim Curves (Square, Linear, Inv. Squa S.Curve)
Refresh Rate
Adjustable selectable Refresh Rate (14 presets from 900 – 25,000Hz)

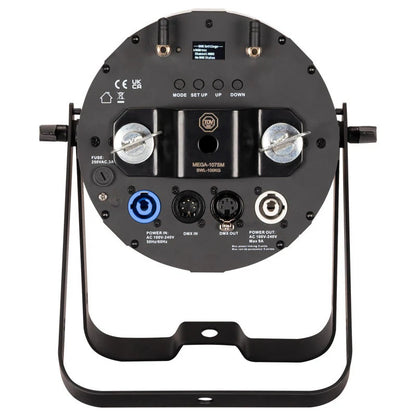

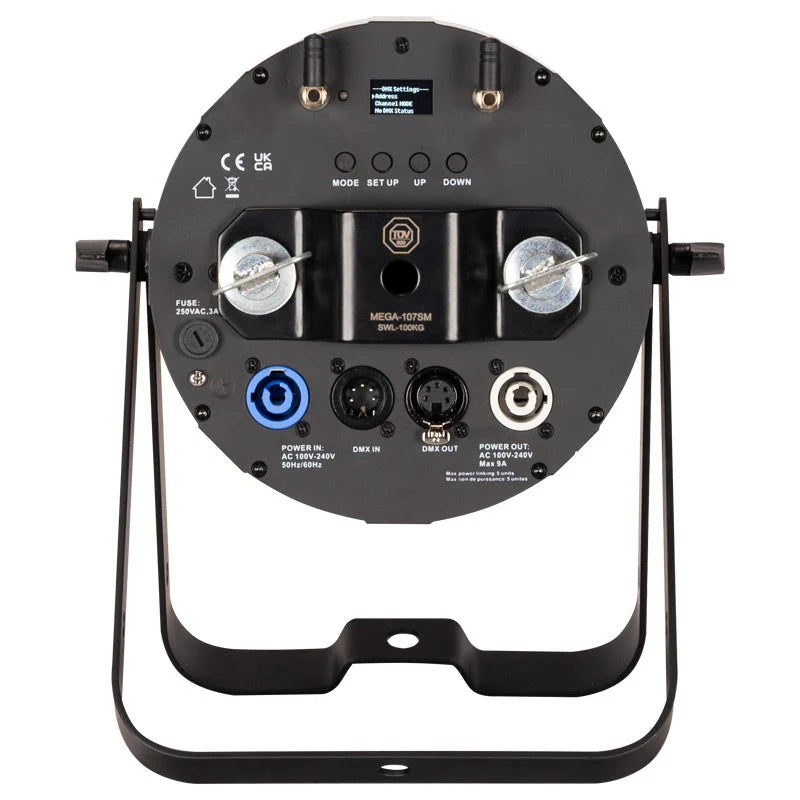

CONNECTIONS
DMX Data Linking
5-pin XLR connectors for DMX data linking
Power Connections
Indoor locking power In Out connections to daisy chain power
ELECTRICAL
Auto Sensing Power Supply
AC 100V/60Hz - 240V/50Hz
Power Draw
175W max
Daisy Chain Maximum
Up to 5 fixtures (120V) or 10 fixtures (230V)
DIMENSIONS / WEIGHT
Dimensions (LxWxH)
16.5”x10.3”x7.5” / 418x262x190mm)
Weight
9.45 lbs. / 4.30 kg.
WHAT’S INCLUDED
Lens 1
(1) 50-degree lens
Lens 2
(1) 40-degree lens

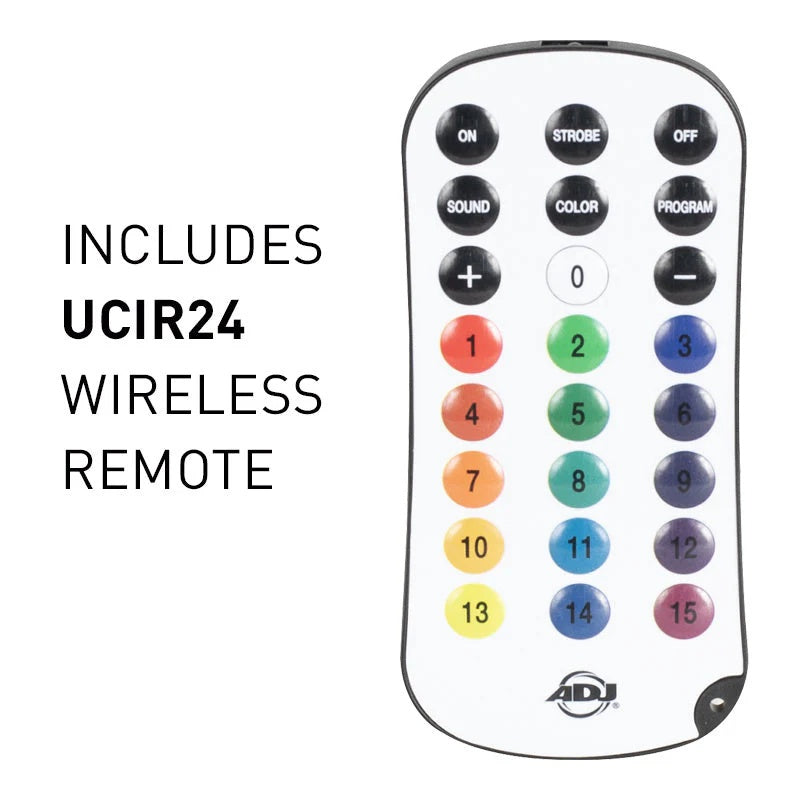

Remote
UCIR24 Wireless IR Remote
Power Cord
Power Cord

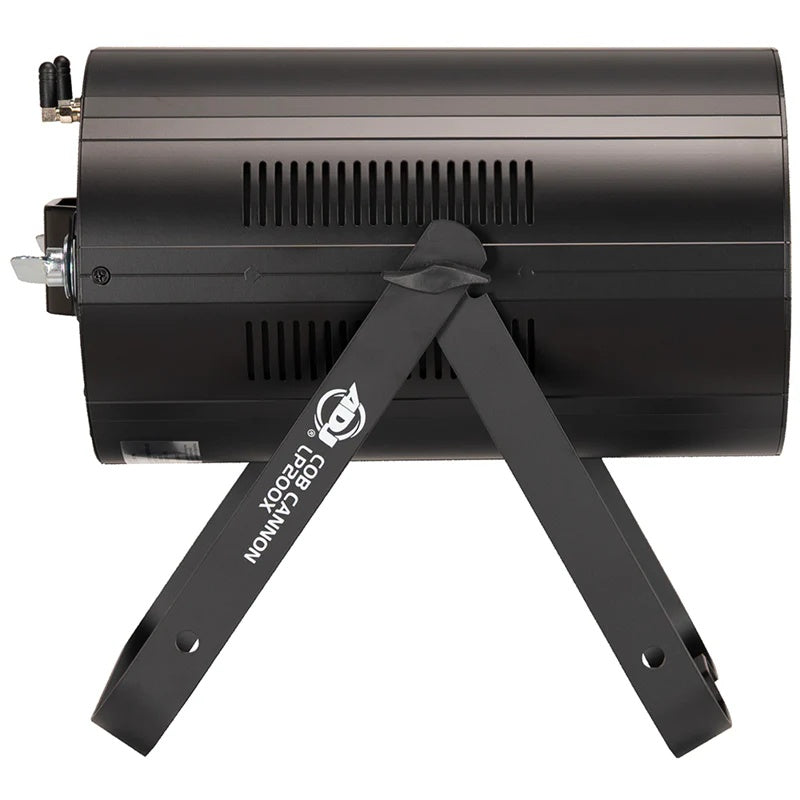

Yoke
Scissor Yoke

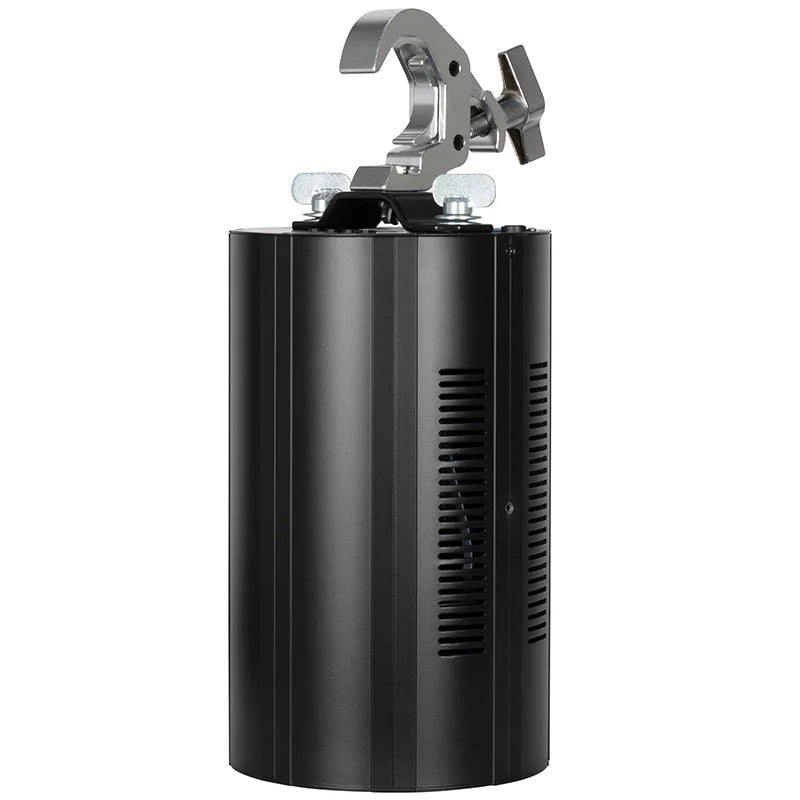

Bracket
Omega Bracket
ACCESSORIES
Accessory
BAR001 - COB Cannon Wash Barn Doors
RATING / APPROVALS
Certification
cETLus (Control # 4002034)
